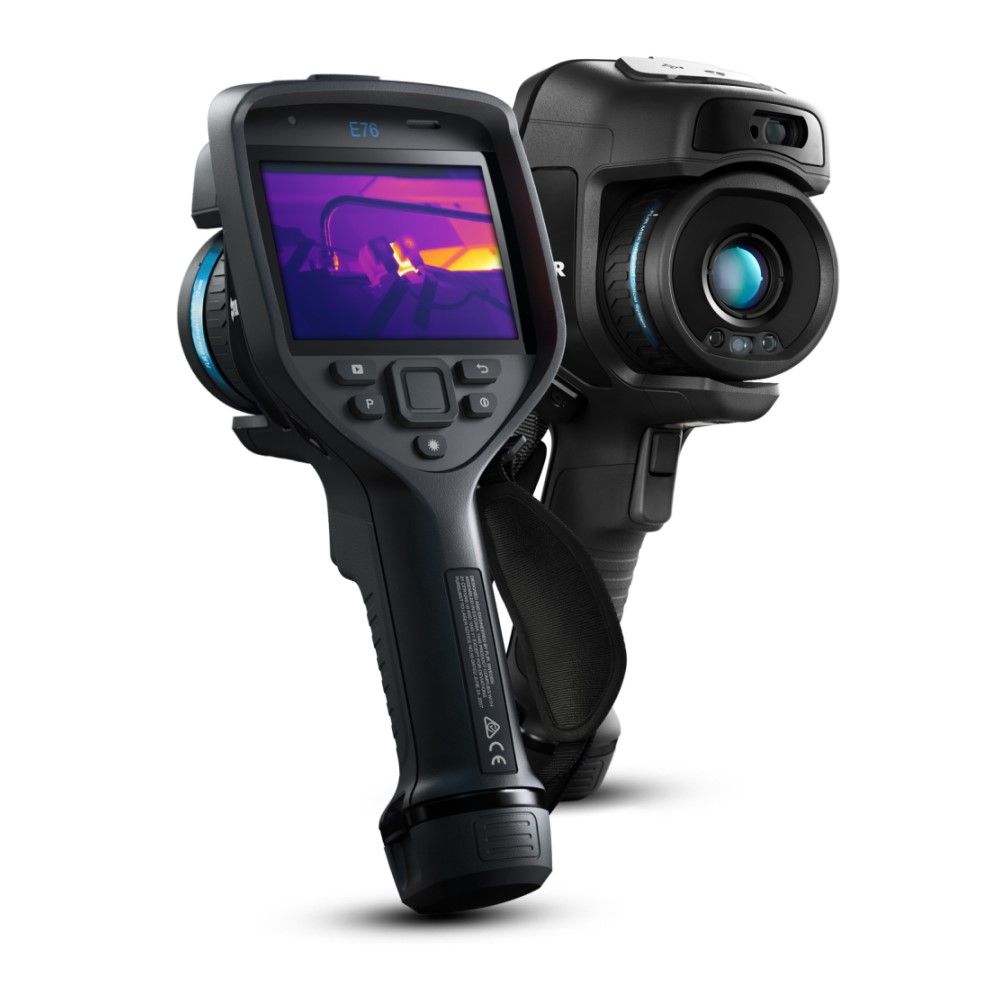

Teledyne FLIR E76 - Advanced Thermal Camera
- 320 x 240 pixel resolution (307,200 pixels with UltraMax)
- -20°C to +1000°C temperature range
- <30 mK thermal sensitivity
- Multiple focus modes
- MSX, UltraMax and adaptive filtering image enhancement
- Includes free ITC Foundation Thermography Course (worth £285)
Availability: Limited stock
Ships tomorrow if ordered in the next 19 hours and 53 minutes!
The Teledyne FLIR E76 offers complete coverage of near and distant targets through a range of interchangeable AutoCal™ lenses, with fields of view for everything from wide-angle roof inspections to electrical inspections performed from a safe distance. A step up from the FLIR E54, the Teldyne FLIR E76 includes an optional temperature range to 1000°C (1832°F), laser-assisted autofocus, and 3 area measurement boxes. The 320 × 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations. Make critical decisions quickly thanks to industry-leading image clarity from FLIR Vision Processing™, through the power of MSX®, UltraMax®, and proprietary adaptive filtering
INTERCHANGEABLE, AUTO-CALIBRATING LENSES
Telephoto, standard, and wide angle AutoCal™ lenses help users survey large targets quickly, check machines for signs of failure, or inspect electrical systems safely.
IMPROVED CONTRAST FOR FASTER DIAGNOSIS
Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.
STREAMLINED REPORTING
Onboard integration with FLIR routing software, a built-in mic for voice annotation, and report generation features all help the E76 streamline your workday.
| Manufacturer | FLIR |
|---|---|
| Manufacturer Part Number | 78512-1101 |
| GTIN | 4743254004603 |
| Datasheet | Download |
|
Model |
E76 |
|
||
|
IR resolution |
320 × 240 pixels |
|
||
|
Resolution with UltraMax® enhancement |
307,200 pixels |
|
||
|
MSX® image enhancement |
Yes: details from visual camera add depth and perspective |
|||
|
Built-in visual camera |
5 MP, fixed focus, with built-in LED light |
|||
|
Thermal sensitivity |
<30 mK @ 30°C (86°F), 42° lens |
|
||
|
Temperature range |
-20°C to 120°C (-4°F to 248°F); |
|
||
|
Optional temperature range |
300°C to 1000°C |
|
||
|
Accuracy |
±2°C (±3.6°F) or ±2% of the reading |
|||
|
Focus modes |
Continuous laser distance |
|
||
|
Digital zoom |
1–4x continuous |
|||
|
Measurement tools |
3 spotmeters in live mode, 3 area meters in live mode |
|
||
|
Measurement presets |
None, center spot, hot spot, cold spot, User Presets 1&2 |
|
||
|
Available lenses |
14°, 24°, 42°, macro (2x) |
|
||
|
Lens identification |
Automatic (FLIR AutoCalTM) |
|
||
|
1-Touch Level/Span |
Yes: automatic contrast enhancement |
|||
|
Laser pointer |
Yes |
|||
|
Laser distance meter |
Yes |
|
||
|
Area measurement information |
- |
|
||
|
On-camera routing software |
FLIR Inspection RouteTM — enabled |
|||
|
On-camera report building |
Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
|||
|
FLIR software integration |
FLIR Thermal Studio Starter, FLIR Thermal Studio, FLIR Thermal Studio Pro, FLIR Research Studio |
|||
|
Radiometric JPEG |
Yes |
|||
|
IR, radiometric, visual video recording |
Yes |
|||
|
IR, radiometric, visual video streaming |
Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual) |
|||
|
Communication modes |
USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
|||
|
METERLiNK® |
Yes |
|||
|
Display |
640 × 480 pixels (VGA) Dragontrail® touchscreen |
|||
|
Drop-testing |
3 m (6.6 ft) |
|||
|
Battery operation time |
>2.5 hours, typical use |
|||
- Teledyne FLIR E76 Advanced Thermal Camera
- Power supply for battery charger
- Power supply, 15 W/3 A
- Printed documentation
- SD card (8 GB)
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to HDMI adapter, standard specification UH311
- USB Type-C to USB Type-C cable (USB 2.0 standard), 1.0 m
- Accessory box II:
- Accessory box III:
- Front protection fastener
- Hand strap bracket, left
- Hand strap bracket, right
- Screws
- Torx T10 wrench
- Carabiner hook
- Front protection
- Hand strap
- Lanyard strap, camera
- Lens cap strap
- Wrist strap
- Battery (2 ea)
- Battery charger
- Hard transport case
- Infrared camera with lens
- Lens cap, front
- Lens cap, front and rear (only for extra lenses)
- FLIR Thermal Studio
