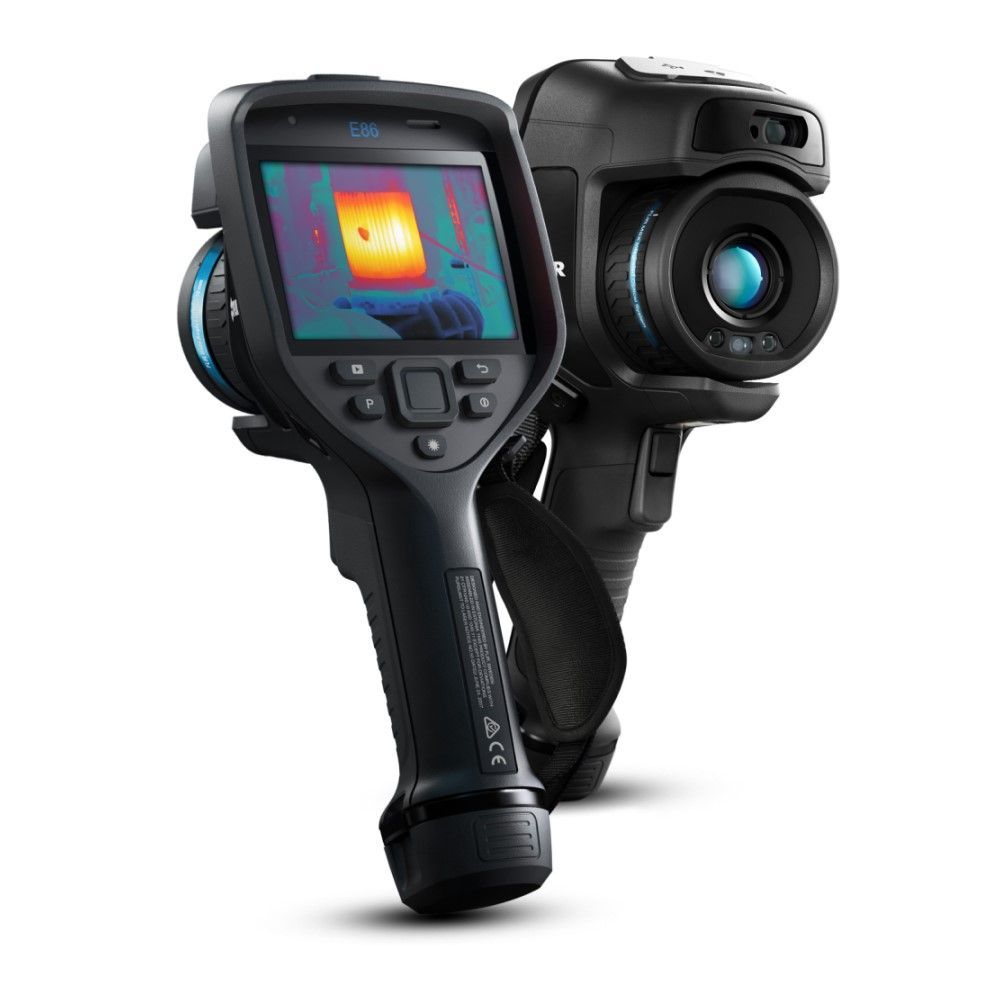

Teledyne FLIR E86, Advanced Thermal Camera
- 464 x 348 pixel resolution (645,888 pixels with UltraMax)
- -20°C to +1500°C temperature range
- <30 mK thermal sensitivity
- Multiple focus modes
- MSX, UltraMax and adaptive filtering image enhancement
- Includes free ITC Foundation Thermography Course (worth £285)
Availability: Usually 1-3 weeks
The Teledyne FLIR E86 is packed with the high-performance features needed for fast, accurate detection of hot spots and hidden deficiencies. This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.
Laser Distance Measurement
The laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²).
Intelligent AutoCAL Optics
Interchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
Streamlined Reporting
Onboard integration with FLIR routing software, a built-in mic for voice annotation, and report generation features all help the E86 streamline your workday
| Manufacturer | FLIR |
|---|---|
| Manufacturer Part Number | 78512-1301 |
| GTIN | 4743254004672 |
| Datasheet | Download |
|
Model |
E86 |
|
||
|
IR resolution |
464 × 348 pixels |
|
||
|
Resolution with UltraMax® enhancement |
645,888 pixels |
|
||
|
MSX® image enhancement |
Yes: details from visual camera add depth and perspective |
|||
|
Built-in visual camera |
5 MP, fixed focus, with built-in LED light |
|||
|
Thermal sensitivity |
<30 mK @ 30°C (86°F), 42° lens |
|
||
|
Temperature range |
-20°C to 120°C (-4°F to 248°F); 300°C to 1500°C |
|
||
|
Accuracy |
±2°C (±3.6°F) or ±2% of the reading |
|||
|
Focus modes |
Continuous laser distance |
|
||
|
Digital zoom |
1–4x continuous |
|||
|
Measurement tools |
3 spotmeters in live mode, 3 area meters in live mode |
|
||
|
Measurement presets |
None, center spot, hot spot, cold spot, User Presets 1&2 |
|
||
|
Available lenses |
14°, 24°, 42°, macro (2x) |
|
||
|
Lens identification |
Automatic (FLIR AutoCalTM) |
|
||
|
1-Touch Level/Span |
Yes: automatic contrast enhancement |
|||
|
Laser pointer |
Yes |
|||
|
Laser distance meter |
Yes |
|
||
|
Area measurement information |
Yes |
|
||
|
On-camera routing software |
FLIR Inspection RouteTM — enabled |
|||
|
On-camera report building |
Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
|||
|
FLIR software integration |
FLIR Thermal Studio Starter, FLIR Thermal Studio, FLIR Thermal Studio Pro, FLIR Research Studio |
|||
|
Radiometric JPEG |
Yes |
|||
|
IR, radiometric, visual video recording |
Yes |
|||
|
IR, radiometric, visual video streaming |
Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual) |
|||
|
Communication modes |
USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
|||
|
METERLiNK® |
Yes |
|||
|
Display |
640 × 480 pixels (VGA) Dragontrail® touchscreen |
|||
|
Drop-testing |
3 m (6.6 ft) |
|||
|
Battery operation time |
>2.5 hours, typical use |
|||
- FLIR E86 Advanced Thermal Camera
- Power supply for battery charger
- Power supply, 15 W/3 A
- Printed documentation
- SD card (8 GB)
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to HDMI adapter, standard specification UH311
- USB Type-C to USB Type-C cable (USB 2.0 standard), 1.0 m
- Accessory box II:
- Accessory box III:
- Front protection fastener
- Hand strap bracket, left
- Hand strap bracket, right
- Screws
- Torx T10 wrench
- Carabiner hook
- Front protection
- Hand strap
- Lanyard strap, camera
- Lens cap strap
- Wrist strap
- Battery (2 ea)
- Battery charger
- Hard transport case
- Infrared camera with lens
- Lens cap, front
- Lens cap, front and rear (only for extra lenses)
- FLIR Thermal Studio
