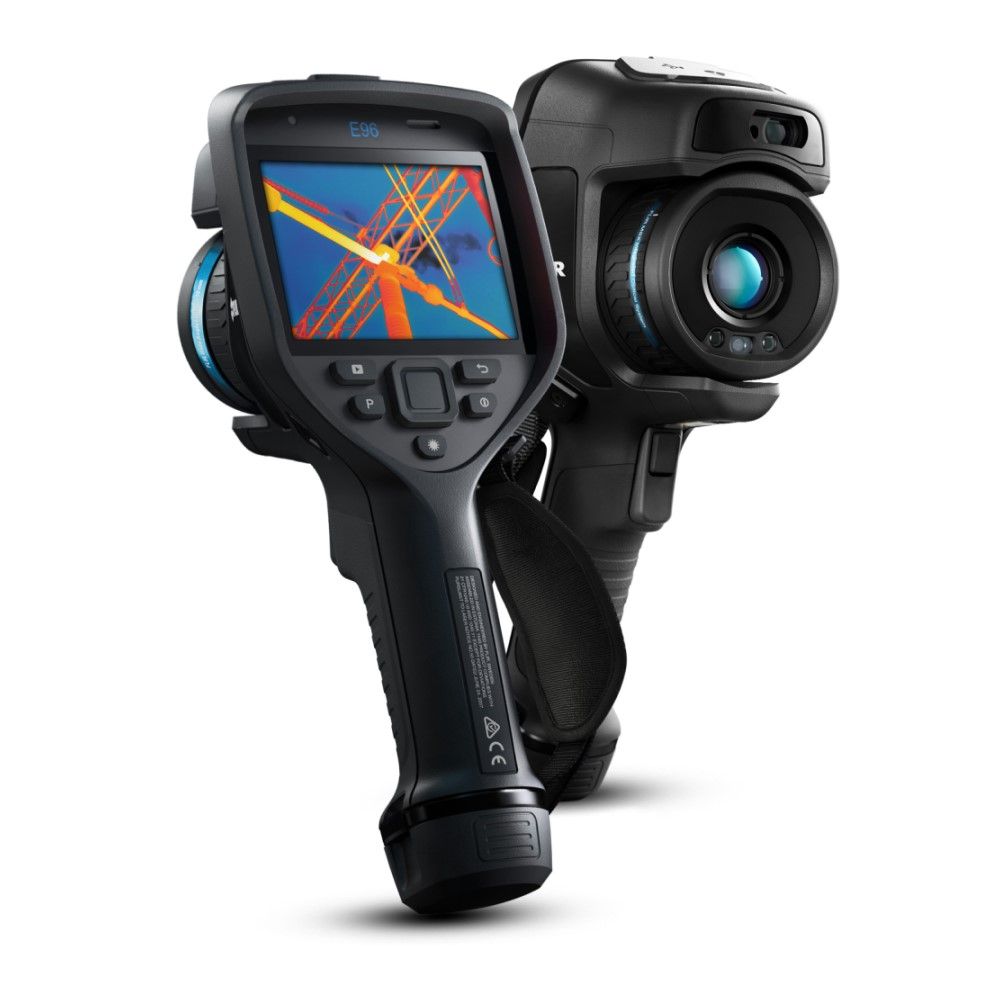

FLIR E96 - Advanced Thermal Camera
- 640 x 480 pixel resolution (1.2 mega pixels with UltraMax)
- -20°C to +1500°C temperature range
- <30 mK thermal sensitivity
- Multiple focus modes with 8x digital zoom
- MSX, UltraMax and adaptive filtering image enhancement
Availability: From Manufacturer Stock
The FLIR E96 is the first pistol-grip camera from FLIR with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, with the laser distance meter ensuring the crisp focus needed for accurate temperature measurement. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.
Outstanding Thermal Imagery
The 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most virbrant, easiest-to-interpret images in its class.
Laser Distance Measurement
The laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²).
Intelligent AutoCAL Optics
Interchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
Streamlined Reporting
Onboard integration with FLIR routing software, a built-in mic for voice annotation, and report generation features all help the E86 streamline your workday
| Manufacturer | FLIR |
|---|---|
| Manufacturer Part Number | 90202-0101 |
| GTIN | 4743254004535 |
| Datasheet | Download |
|
Model |
E96 |
|
||
|
IR resolution |
640 × 480 pixels |
|
||
|
Resolution with UltraMax® enhancement |
1.2 mega pixels |
|
||
|
MSX® image enhancement |
Yes: details from visual camera add depth and perspective |
|||
|
Built-in visual camera |
5 MP, fixed focus, with built-in LED light |
|||
|
Thermal sensitivity |
<30 mK @ 30°C (86°F), 42° lens |
|
||
|
Temperature range |
-20°C to 120°C (-4°F to 248°F); |
|
||
|
Accuracy |
±2°C (±3.6°F) or ±2% of the reading |
|||
|
Focus modes |
Continuous laser distance |
|
||
|
Digital zoom |
1–8x continuous |
|||
|
Measurement tools |
3 spotmeters in live mode, 3 area meters in live mode |
|
||
|
Measurement presets |
None, center spot, hot spot, cold spot, User Presets 1&2 |
|
||
|
Available lenses |
14°, 24°, 42°, macro (2x) |
|
||
|
Lens identification |
Automatic (FLIR AutoCalTM) |
|
||
|
1-Touch Level/Span |
Yes: automatic contrast enhancement |
|||
|
Laser pointer |
Yes |
|||
|
Laser distance meter |
Yes |
|
||
|
Area measurement information |
Yes |
|
||
|
On-camera routing software |
FLIR Inspection RouteTM — enabled |
|||
|
On-camera report building |
Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
|||
|
FLIR software integration |
FLIR Thermal Studio Starter, FLIR Thermal Studio, FLIR Thermal Studio Pro, FLIR Research Studio |
|||
|
Radiometric JPEG |
Yes |
|||
|
IR, radiometric, visual video recording |
Yes |
|||
|
IR, radiometric, visual video streaming |
Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual) |
|||
|
Communication modes |
USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
|||
|
METERLiNK® |
Yes |
|||
|
Display |
640 × 480 pixels (VGA) Dragontrail® touchscreen |
|||
|
Drop-testing |
3 m (6.6 ft) |
|||
|
Battery operation time |
>2.5 hours, typical use |
|||
- FLIR E96 Advanced Thermal Camera
- Power supply for battery charger
- Power supply, 15 W/3 A
- Printed documentation
- SD card (8 GB)
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to HDMI adapter, standard specification UH311
- USB Type-C to USB Type-C cable (USB 2.0 standard), 1.0 m
- Accessory box II:
- Accessory box III:
- Front protection fastener
- Hand strap bracket, left
- Hand strap bracket, right
- Screws
- Torx T10 wrench
- Carabiner hook
- Front protection
- Hand strap
- Lanyard strap, camera
- Lens cap strap
- Wrist strap
- Battery (2 ea)
- Battery charger
- Hard transport case
- Infrared camera with lens
- Lens cap, front
- Lens cap, front and rear (only for extra lenses)
- FLIR Thermal Studio
