Chauvin Arnoux PEL113 Power Energy Logger (with CTs & PWR Adapter)

Chauvin Arnoux PEL113, Power Energy Logger (with CTs & PWR Adapter)

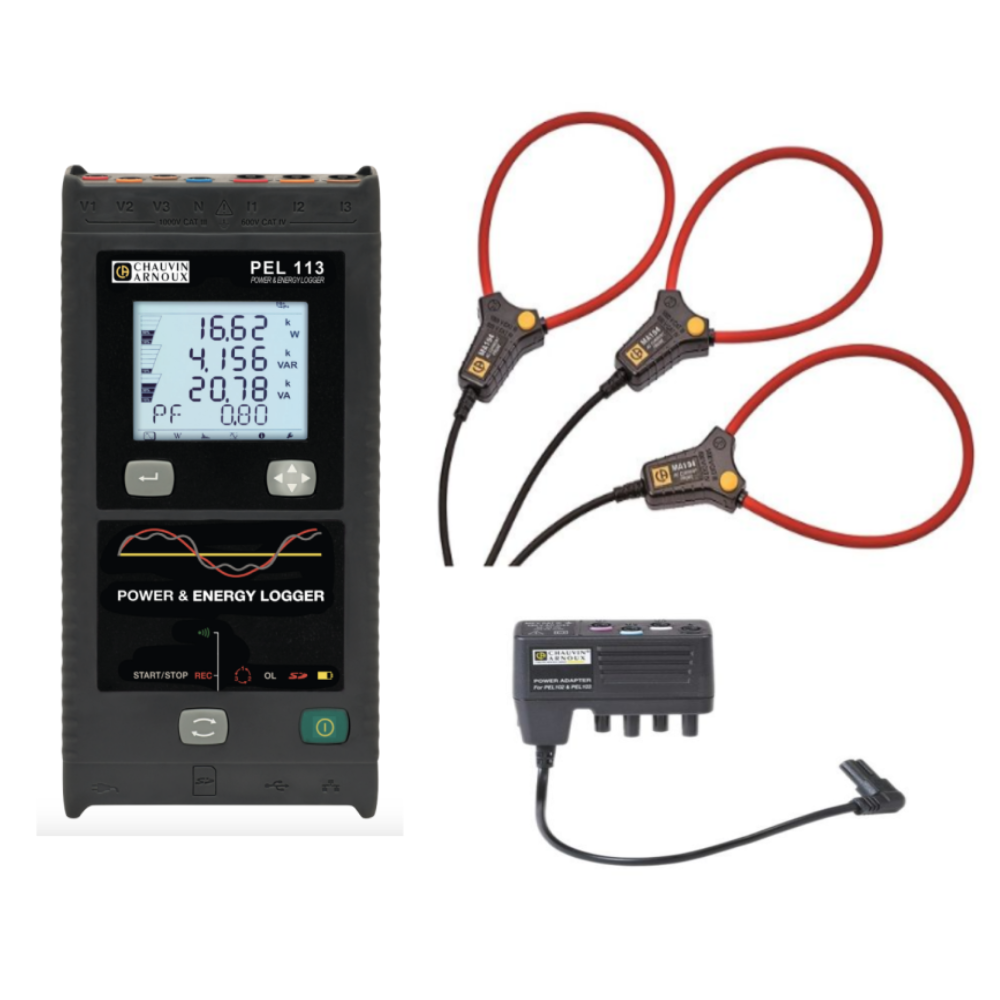

Save money by controlling your energy consumption with the Chauvin Arnoux PEL113, Power Energy Logger.  This variant comes complete with MA194-350 current clamps and a PEL Power Adapter that allows you to power the unit using voltage inputs, which is perfect for long term campaigns.

The PEL113 has 3x voltage inputs and 3x current inputs and features a quadruple backlit digital display.  It can be used wherever there is electricity:

• electricity generator: renewable energies, thermal energy, etc.
• industries: metallurgy, glassmaking, agri-food
• residential buildings, tertiary, etc.
• infrastructure and transport
• datacenters, etc.

Applications

• Energy audits
• Electrical diagnostics
• Industrial maintenance

Technical Information

RMS and DC measurements

• AC and/or DC voltages up to 1,000 V
• currents up to 10 kA AC or 5 kA DC (depending on the current sensor).
• active, reactive and apparent power values
• active, reactive and apparent energy values
• fundamental and balanced active power values and unbalanced active power values
• measurements and characterization on motors (via Android application)

Functions

• breakdown of energy losses
• phase information: cos φ, tan Φ, power factor (PF)
• crest factor
• THD calculation for currents and voltages
• DC, 50 Hz, 60 Hz and 400 Hz (Naval, etc.) measurements

PEL Transfer software

• With the PEL Transfer software you can:
• set up your PEL
• check the connections before recording begins
• download the measurements recorded in the PEL
• view the results of the various measurements and analyses
• Additional advantage: PEL Transfer converts your electricity consumption into the local currency (€, £, $, etc. - 8 tariff ranges).

Communication and networks

The PEL 113 offers multiple communication modes:

• USB , the simplest link when not working remotely
• Ethernet RJ45 or Wifi (server): connect your PEL11x to the server to communicate from any workstation in the network equipped with the PEL Transfer software
• Wifi (Access Point): Create a direct link between the PEL11x and your computer.  The Access Point (AP) mode supports up to 5 clients
