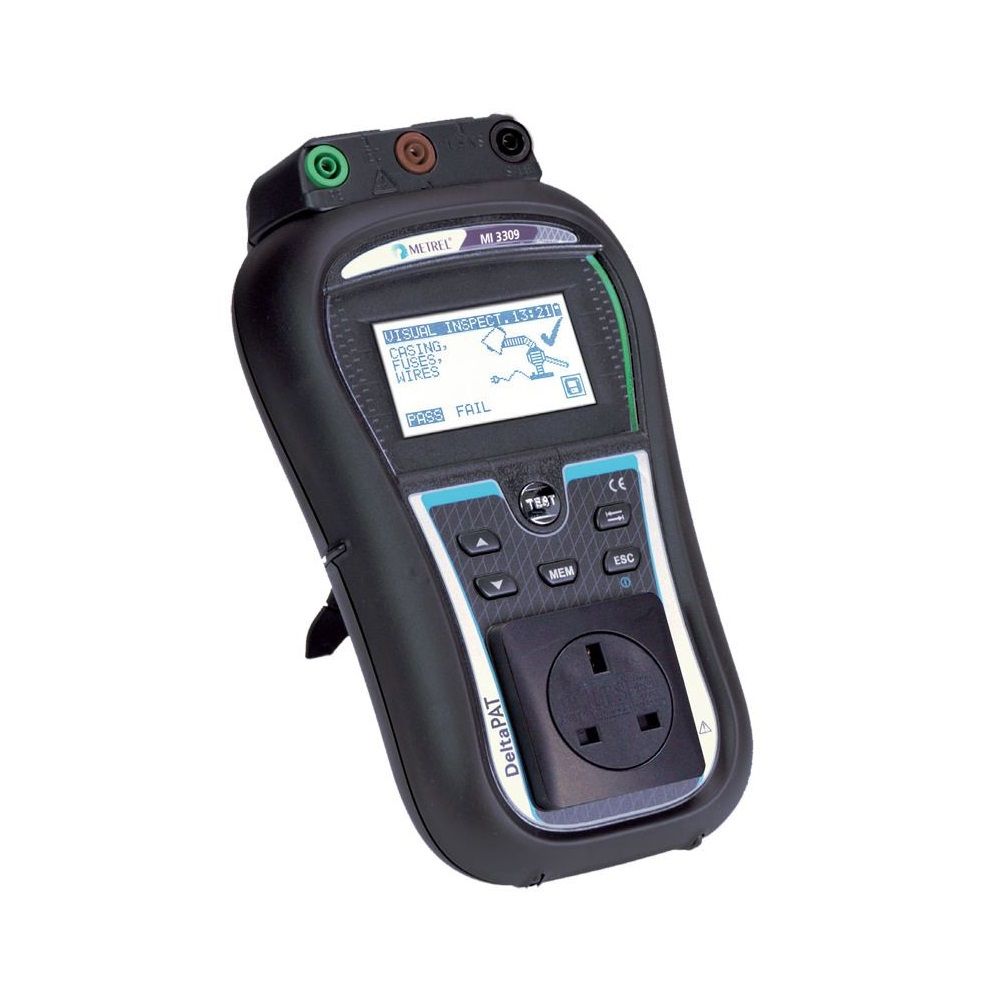

Metrel MI3309BT, Delta PAT Tester

A FREE bundle (1000 PASS + 200 FAIL labels) is now available with this item. Just select it from the drop-down menu.

The Bluetooth version of the Delta PAT comes with Bluetooth dongle for connection to the Metrel PAT app. With this free Android software you can remote control your PAT and carry out risk assessments to determine the frequency of test.

The MI3309 Delta PAT features the simplicity of the Gamma PAT, but with the addition of an RCD test. This handheld PAT tester carries out the required tests for class I, class II and mains leads. Pre-programmed test sequences speed up the test process, and there are helpful diagrams to assist with connecting appliances under test.

As a mid-range downloading tester, the Delta PAT has the ability to enter a description, unique asset ID number and more. In addition the tester has a red & green LED on either side of the screen to give a clear visual indication of a pass or fail, as well as having the text displayed on-screen with the test result.

Carrying out tests on RCD protected mains plugs is safe, due to built-in protection which prevents tripping of an RCD on the mains circuit. The MI3309 also has dual power capability, this means you can use it with just battery power for standard tests, but also with mains power for carrying out tests on larger, heavier machinery. Powered tests include differential leakage, touch leakage and power consumption.

Key Features of the Metrel Delta PAT

• Earth Bond, Insulation & Earth Leakage Tests
• RCD Test Sequence
• Powered Tests Including Differential Leakage, Touch Leakage and Power Tests
• Download test results to PC software
• Can be connected to a barcode scanner
• Built-in battery charger
• True RMS Voltage Meter
