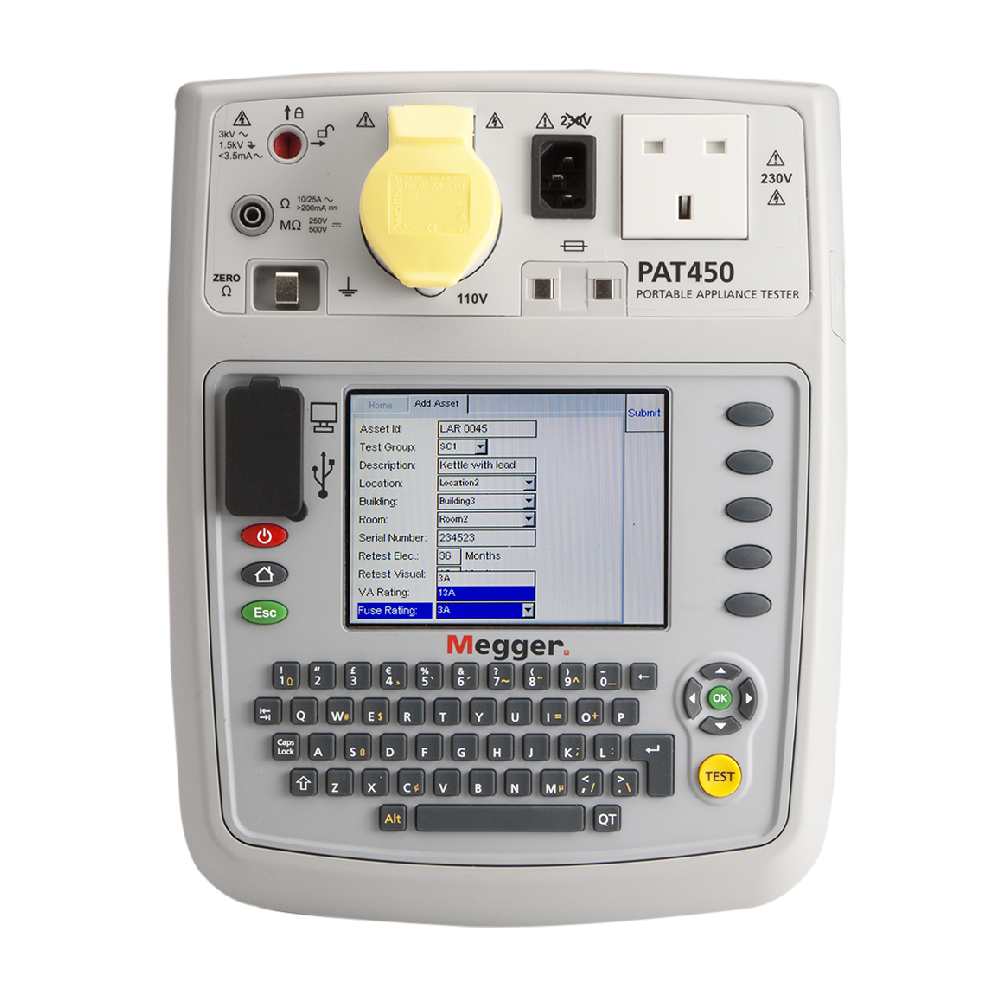

The Megger PAT450-UK is a dual-voltage downloading portable appliance tester designed for UK electricians and PAT technicians who need reliable performance for high-volume testing in workshops, hire centres and service environments. Built for speed and accuracy, it performs comprehensive 110 V and 240 V PAT tests, including Flash and RCD checks, helping you stay compliant with UK safety standards.
A FREE bundle (1000 PASS + 200 FAIL labels) is now available with this item. Just select it from the drop-down menu.
Why choose the PAT450-UK for professional testing?
With its 5.7-inch colour LCD, intuitive menu navigation and full QWERTY keypad, the PAT450-UK simplifies asset entry and test control. Designed for efficient on-site use, it stores up to 10,000 results, supports barcode scanners and printers and transfers data via USB for easy certification and record keeping. It’s ideal for contractors handling large-scale appliance safety inspections.
Order today to enjoy free delivery, expert support and our 90-day satisfaction guarantee. Need advice? Our team is here to assist you.
230 V ±10% @ 50/60 Hz / 110 V ±10% + 110 V ±10% @ 50 Hz
Earth Bond / Bond Test (10 A & 25 A)
Open-circuit voltage: 9 V AC ±10% ± 0.1 V (supply: 230 V 50 Hz)
Resistance accuracy: ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits (0.5 to 0.99 Ω)
Resolution: 10 mΩ (0 to 1.99 Ω)
Display range: 0 – 1.99 Ω
Continuity Test (200 mA)
Test voltage: 4.0 V DC –0% / +10%
Resistance accuracy: ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits (0.5 to 0.99 Ω)
Resolution: 10 mΩ (1 to 19.99 Ω)
Display range: 0 – 19.99 Ω
Insulation Test
Test voltages: 250 V and 500 V DC
Resistance accuracy: ±2% ±5 digits (0 to 19.99 MΩ), ±5% ±10 digits (20 to 99.99 MΩ)
Resolution: 0.01 MΩ
Display range: 0 – 99.99 MΩ
Substitute / Leakage Current Test
Test voltage: 40 V AC ±10% (nominal mains frequency)
Current accuracy: ±5% ±5 digits
Resolution: 0.01 mA
Display range: 0 – 19.99 mA
Flash (Hi‑pot) Test
Voltage: 1.5 kV AC (Class I), 3.0 kV AC (Class II)
Flash test current: < 3.5 mA (short circuit @ 253 V primary supply)
Breakdown current accuracy: ±5% ±5 digits
Resolution: 0.01 mA
Display range: 0 – 3.0 mA
Portable RCD Test
Voltage: nominal mains supply
Test current accuracy: –8% to –2% (½×I), +2% to +8% (1×I, 5×I)
Trip time accuracy: ±1% ±5 digits
Trip time resolution: 0.1 ms
Display range: 0 – 1999 ms (½×I), 0 – 300 ms (1×I), 0 – 40 ms (5×I)
Fuse Test
Test voltage: 3.3 V — audible beep if fuse is OK
Other Tests / Features
Extension‑lead test (bond, insulation, polarity), Touch current test, Differential leakage test, Operational (VA) test
Dimensions
~ 210 mm (H) × 280 mm (W) × 390 mm (L) (alternative spec: 180 × 255 × 320 mm) Weight: ~ 5.0 kg
Environmental / Safety
Operating temperature: –10 to +50 °C
Storage temperature: –20 to +60 °C
Humidity: 90% RH @ –10 to 30 °C, 75% RH @ +30 to 50 °C
Maximum altitude: 2000 m
Ingress protection: IP40
Safety / EMC compliance: IEC 61010‑1 (CAT II 300 V), IEC 61326‑1 / IEC 61326‑2‑2
