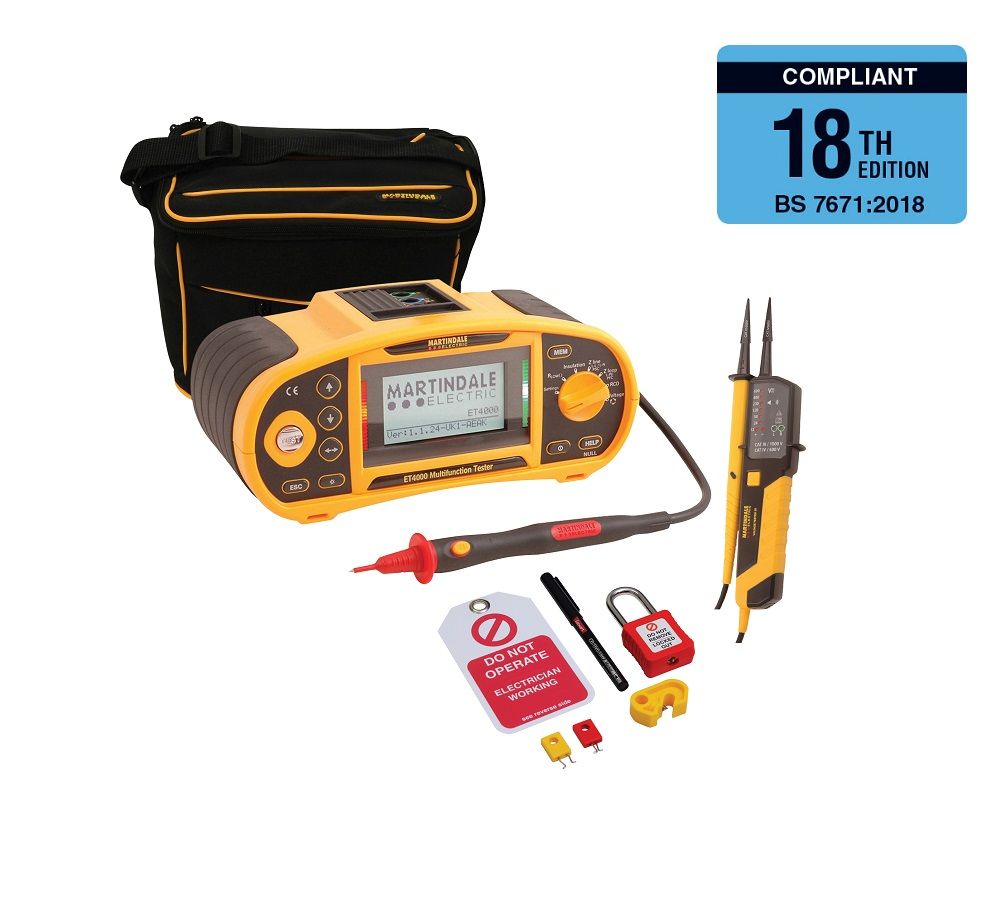

This is the latest multifunction tester available from Martindale Electric. Designed to make your job easier and testing faster, this multifunction is equipped with a host of features. As an entry level tester, you'll find you get much more for your money when compared to the functionality of that from leading manufacturers such as Fluke or Megger.
Ready for the 18th Edition
The ET4000 has built-in loop pass values which are set to the 18th Edition values.
Simple pass / fail indication
A red & green LED indicator gives an instant notification of a pass or fail, based on the selected pass limit.
Auto RCD test results displayed simultaneously
Most other MFTs require you to scroll through the 5 test results of an auto sequence. The ET4000 displays all the results on screen simultaneously, saving time when recording the information.
Automatic wiring check
When connected, a wiring and polarity check is automatically carried out. This helps identify potentially dangerous wiring faults in advance.
True RMS voltage measurement
Did you know how important true RMS readings are? Standard RMS measurement only gives an average reading and with anything other than a perfect sinewave, this reading can be as much as 50% out! With true RMS, you get an accurate measurement. Whereas this feature is only available in the top model from most other manufacturers, it is included as standard with the Martindale ET4000. This true RMS reading will ensure your recorded voltage levels really are within the new Cmin limits defined in amendment 3.
User settable pass limits
Some installations may require testing to specific pass values. The ET4000 allows you to set these limits manually, ideal if you have a number of engineers testing a site, or if you are training an apprentice.
CAT IV safety rating
Safety is paramount when it comes to testing. Using a tester on a system that it is not rated for can lead to serious injury or death. The ET4000 carries a CAT IV safety rating, offering a high level of user protection.
Easy to replace test leads
Having a test lead fail on a job can be a real headache. If you can't obtain a replacement quickly, you can lose time on a job. The ET4000 comes supplied with standard 4mm banana leads, this means you can easily get replacements from your local wholesaler if you need them urgently.
Rechargeable batteries
The ET4000 comes with rechargeable batteries. Charging is done in-situ, so you can leave it charging over night ready for a days testing. The batteries supplied are low discharge to optimise the battery life.
Comprehensive test functionality
Although advertised as the entry level model, this tester comes fully equipped and offers much more for your money. The full list of tests includes:
- Insulation resistance at 50, 100, 250, 500 & 1000V
- Continuity testing at 200mA & 8.5mA
- Non trip & high current loop testing with PFC display
- Auto RCD test sequence
- RCD ramp test
- AC, A, F & S type RCDs (10, 30, 100, 300, 500 & 1000mA)
- True RMS voltage reading
- Frequency & phase rotation measurement
The Martindale VT25 is a tough, compact two pole tester for measuring AC/DC voltages from 12V to 690V. Additional capabilities include continuity and phase rotation testing plus single pole voltage detection. The AC/DC voltage detection, continuity and phase rotation functions all have bright LED indication. Auto power-off ensures a long battery lifetime. The voltage indicator conforms to all the latest safety standards and includes removable probe caps for GS38 compliance. Additional safety features include a 1.2m double insulated cable with a black outer and contrasting inner core to give a visual warning of any damage. A built-in white LED torch makes it easy to use in low light environments.
The six piece LOKKIT BASE includes three different Martindale MCB locks, catering for most standard MCBs. The Basic Martindale Lock Kit enables you to carry out safe isolation procedures correctly as required by the Electricity at Work Regulations and includes the essentials for industry association approvals.
