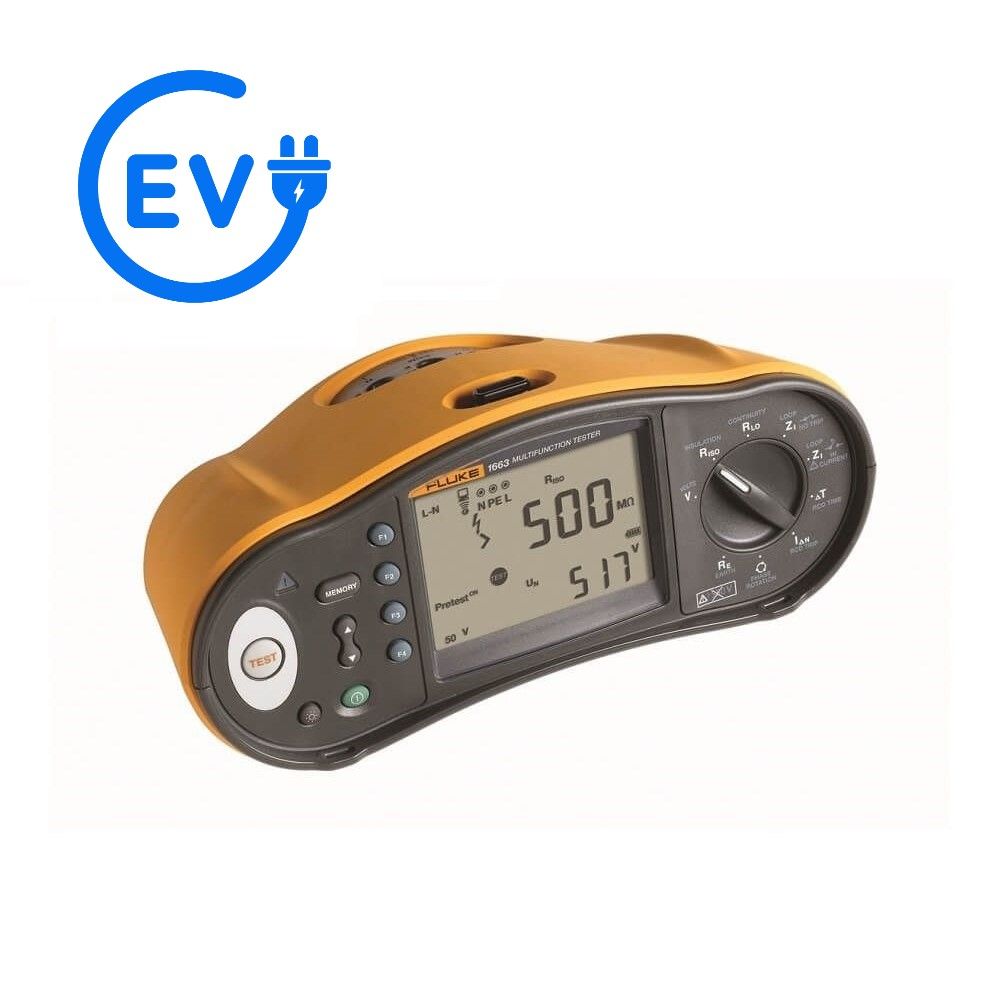

The Fluke 1663 is the ideal tester for hard-working professionals
This instrument is ideal for professional users – full-featured functionality, advanced measurement capability, yet it is still easy to use. Operation is intuitive and easily mastered by all levels of field workers.
The Fluke 1663 puts more power in your hands by quickly and efficiently testing to all local regulations, protecting appliances that may be inadvertently connected to the system under test, and making it easy to share test results over your smartphone.
Test EV charging station RCD type A-EV or RDC-DD DC protection devices
Perform tests on EV charging station DC protection devices using the RCD type B (smooth DC currents) VAR mode, which generates the test currents for RCD type A-EV or RDC-DD acc. to IEC 62955 (6/60/200 mA and ramp <2 to 6 mA ramp). This allows the quick an easy testing of additional 6 mA DC monitors on charging points and can be used in conjunction with the Fluke FEV100 or FEV300.
Measurement functions
Continuity at L-N, N-PE inputs
Test smooth dc sensitive RCDs (Type B)
Earth resistance
Voltage & frequency
Wiring polarity checker, detects broken N wires
Insulation resistance
Continuity & resistance
Measure motor windings with continuity test
Loop & line resistance
Prospective earth fault current (PEFC/IK)
Prospective short-circuit current (PSC/IK)
RCD switching time
RCD tripping level (ramp test)
Measures trip time & current for RCD type A & AC in one test
RCD variable current
Automatic RCD test sequence
Phase sequence indicator
Other features
On/Off switchable auto-start for RCD & looptest
Self-test
Illuminated display
Memory interface
Z Max Memory
Memory
Computer Interface (when used with optional Fluke software)
Time and date (when used with optional Fluke software)
Test current 1 mA @ 50 kΩ, 1 mA @ 100 kΩ, 1 mA @ 250 kΩ, 1 mA @ 500 kΩ, 1 mA @ 1 MΩ
Loop and line impedance (ZI)
Range 10 Ω / 0.001 Ω / High current mΩ mode
Resolution 0.01 Ω / 0.1 Ω / 1 Ω
Prospective earth fault current, PSC test
Range 1000 A / 10 kA (50 kA)
Resolution 1 A / 0.1 kA
Computation Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively.
RCD testing, RCD types tested
RCD Type A4, AC¹, G²,S³
Tripping speed test (ΔT)
Current settings¹ 10-30-100-300-500-1000 mA – VAR, 10-30-100 mA
Multiplier x ½, x 1, x 5
Measurement range RCD Type G: 310 ms, 50 ms; RCD Type S: 510 ms, 160 ms; EV / RDC-DD: 6mA - 10s, 60mA - 0.3s, 200mA - 0.1s
RCD/FI-Tripping Current Measurement/Ramp Test (IΔN)
Current range 30% to 110% of RCD rated current¹
Step size 10% of IΔN²
Dwell time Type G 300 ms/step
Type S 500 ms/step
Measurement accuracy ±5%
Specified trip current ranges (EN 61008-1) 50% to 100% for Type AC, 35% to 140% for Type A (>10 mA), 35% to 200% for Type A (≤10 mA), 50% to 200% for Type B, ²5% for Type B
Earth Resistance Test (RE)
Range 200 Ω / 2000 Ω
Resolution 0.1 Ω / 1Ω
Frequency 128 Hz
Output Voltage 25 V
Phase Sequence Indication
Icon Phase Sequence indicator.
General Specifications
Size (L x W x H) 10 x 25 x 12.5 cm
Weight (incl. batteries) 1.3 Kg
Battery size, quantity Type AA, 6 ea.
Sealing IP-40
Safety Complies with EN61010-1 Ed 2.0 (2001-02), UL61010, ANSI/ISA –s82.02.01 2000 and CAN/CSA c22.2 No. 1010 2nd edition
Overvoltage CAT III / 500V; CAT IV 300V
Performance EN61557-1 to EN61557-7 Second Edition and EN61557-10 Second Edition
