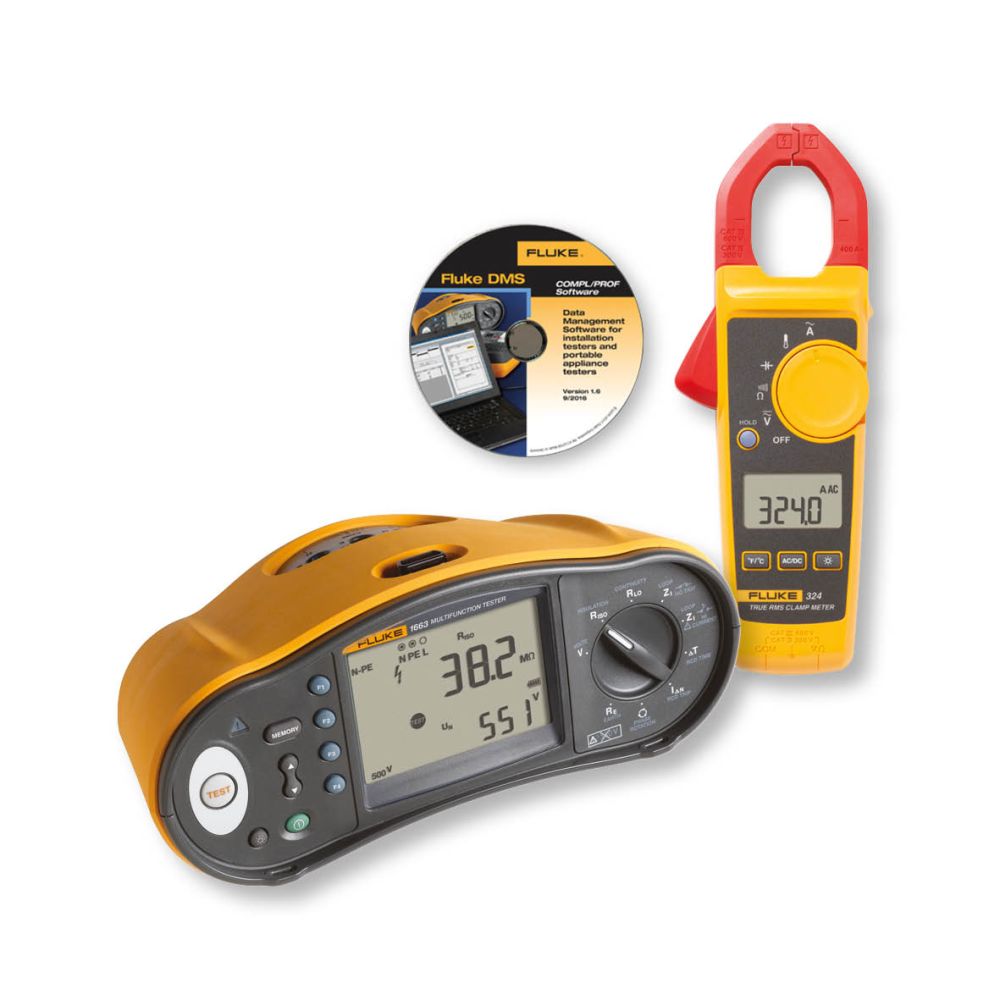

Fluke 1663 + 324 Clamp Meter + DMS software

Fluke

  • Full-featured tester for hard-working professionals
  • FREE manufacturer's calibration certificate included*
  • FREE Fluke 324 Clamp Meter + DMS Complete software
  • Ready for 18th Edition
  • Regular Price £1,434.00 Special Price £930.00 £775.00

    Availability: In Stock

    Product Code
    FLU1663-CLAMP


    The ideal tester for hard-working professionals. Includes FREE Fluke 324 Clamp Meter and DMS Complete software package.

    This instrument is ideal for professional users – full-featured functionality, advanced measurement capability, yet it is still easy to use. Operation is intuitive and easily mastered by all levels of field workers.

    The 1663 puts more power in your hands by quickly and efficiently testing to all local regulations, protecting appliances that may be inadvertently connected to the system under test, and making it easy to share test results over your smartphone.

    Measurement functions

  • Continuity at L-N, N-PE inputs
  • Test smooth dc sensitive RCDs (Type B)
  • Earth resistance
  • Voltage & frequency
  • Wiring polarity checker, detects broken N wires
  • Insulation resistance
  • Continuity & resistance
  • Measure motor windings with continuity test
  • Loop & line resistance
  • Prospective earth fault current (PEFC/IK)
  • Prospective short-circuit current (PSC/IK)
  • RCD switching time
  • RCD tripping level (ramp test)
  • Measures trip time & current for RCD type A & AC in one test
  • RCD variable current
  • Automatic RCD test sequence
  • Phase sequence indicator
  • Other features

  • On/Off switchable auto-start for RCD & looptest
  • Self-test
  • Illuminated display
  • Memory interface

  • Z Max Memory
  • Memory
  • Computer Interface (when used with optional FlukeView & Fluke DMS software)
  • Time and date (when used with optional FlukeView software)
  • Withstands a drop of 1 meter


    * requires in-service date to be filled in

    More Information
    ManufacturerFluke
    Manufacturer Part Number5003381
    GTINN/A
    ManualDownload
    DatasheetDownload
    DownloadingYes
    Earth testYes
    Write Your Own Review
    You're reviewing:Fluke 1663 + 324 Clamp Meter + DMS software
    Your Rating

    AC voltage measurement

    • Range 500 V
    • Resolution 0.1 V
    • Accuracy 45 Hz – 66 Hz 0.8% + 3
    • Input impedance 360 kΩ
    • Overload protection 660 V rms
    • Continuity testing (RLO)
    • Range (autoranging) 20 Ω / 200 Ω / 2000 Ω
    • Resolution 0.01 Ω / 0.1 Ω / 1 Ω
    • Open Circuit Voltage >4 V

    Insulation resistance measurement (RISO)

    • Test voltages 50-100-250-500-1000 V
    • Accuracy of tTest voltage (at rated test current) +10%, -0%
    • Test voltage 50 V, 100 V, 250 V, 500 V, 1000 V
    • Insulation resistance range 20 MΩ /50 MΩ, 20 MΩ / 100 MΩ, 20 MΩ / 200 MΩ, 20 MΩ / 200 MΩ / 500 MΩ, 20 MΩ / 200 MΩ / 1000 MΩ
    • Resolution 0.01 MΩ / 0.1 MΩ, 0.01 MΩ / 0.1 MΩ, 0.01 MΩ / 0.1 MΩ, 0.01 MΩ / 0.1 MΩ / 1 MΩ, 0.01 MΩ / 0.1 MΩ / 1 MΩ
    • Test current 1 mA @ 50 kΩ, 1 mA @ 100 kΩ, 1 mA @ 250 kΩ, 1 mA @ 500 kΩ, 1 mA @ 1 MΩ

    Loop and line impedance (ZI)

    • Range 10 Ω / 0.001 Ω / High current mΩ mode
    • Resolution 0.01 Ω / 0.1 Ω / 1 Ω

    Prospective earth fault current, PSC test

    • Range 1000 A / 10 kA (50 kA)
    • Resolution 1 A / 0.1 kA
    • Computation Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively.

    RCD testing, RCD types tested

    • RCD Type A4, AC¹, G²,S³

    Tripping speed test (ΔT)

    • Current settings¹ 10-30-100-300-500-1000 mA – VAR, 10-30-100 mA
    • Multiplier x ½, x 1, x 5
    • Measurement range RCD Type G: 310 ms, 50 ms; RCD Type S: 510 ms, 160 ms

    RCD/FI-Tripping Current Measurement/Ramp Test (IΔN)

    • Current range 30% to 110% of RCD rated current¹
    • Step size 10% of IΔN²
    • Dwell time Type G 300 ms/step
    • Type S 500 ms/step
    • Measurement accuracy ±5%
    • Specified trip current ranges (EN 61008-1) 50% to 100% for Type AC, 35% to 140% for Type A (>10 mA), 35% to 200% for Type A (≤10 mA), 50% to 200% for Type B, ²5% for Type B

    Earth Resistance Test (RE)

    • Range 200 Ω / 2000 Ω
    • Resolution 0.1 Ω / 1Ω
    • Frequency 128 Hz
    • Output Voltage 25 V

    Phase Sequence Indication

    • Icon Phase Sequence indicator.

    General Specifications

    • Size (L x W x H) 10 x 25 x 12.5 cm
    • Weight (incl. batteries) 1.3 Kg
    • Battery size, quantity Type AA, 6 ea.
    • Sealing IP-40
    • Safety Complies with EN61010-1 Ed 2.0 (2001-02), UL61010, ANSI/ISA –s82.02.01 2000 and CAN/CSA c22.2 No. 1010 2nd edition
    • Overvoltage CAT III / 500V; CAT IV 300V
    • Performance EN61557-1 to EN61557-7 Second Edition and EN61557-10 Second Edition

    Fluke 1663 Multifunction Installation Tester Includes:

    • 6x AA (IEC LR6) cell batteries
    • C1600 hard carrying case
    • Zero adapter
    • Heavy duty mains cord
    • STD standard test lead set
    • Padded carrying and waist strap
    • Quick reference guide
    • TP165X remote control probe and lead
    • User's manual on CD-ROM
