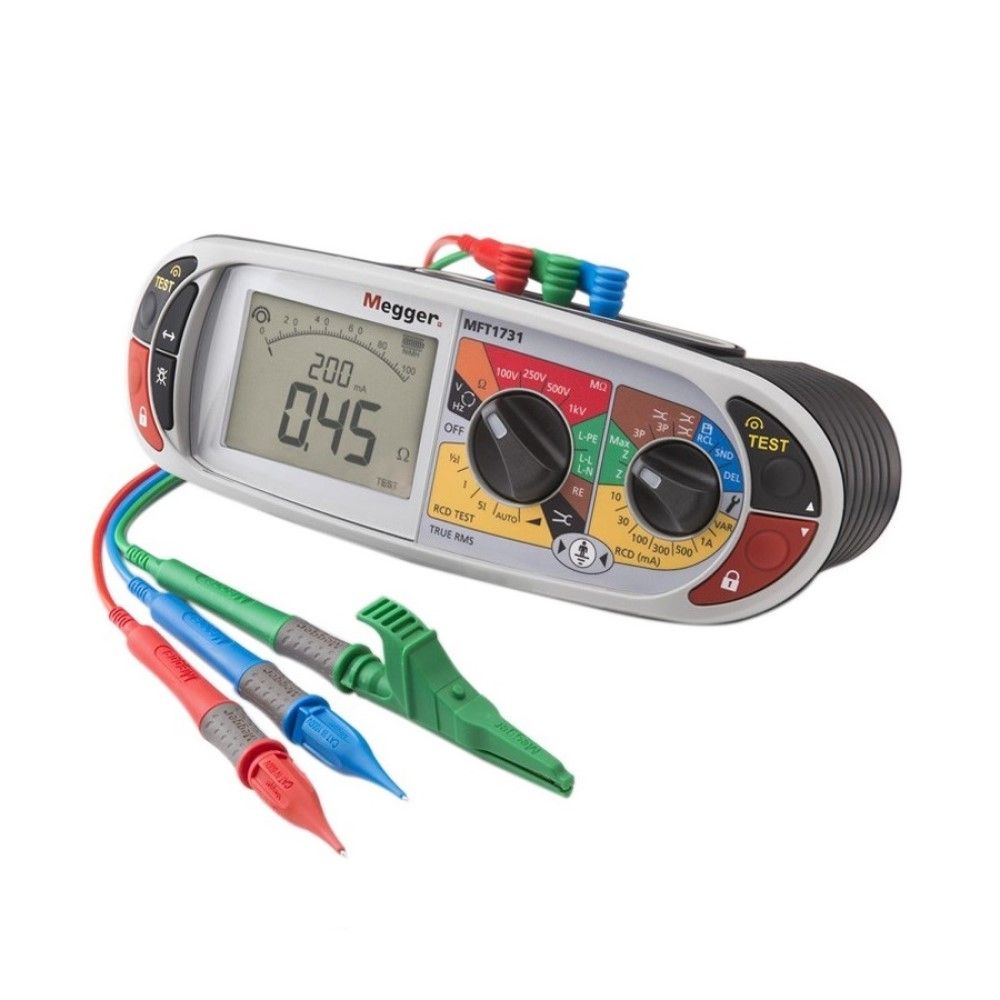

Megger MFT1731, Multifunction Installation Tester

Suitable for domestic, commercial and industrial testing

FREE manufacturer's calibration certificate included*

FREE bundle included (many options to choose from)

Ready for 18th Edition

Regular Price £2,286.00 Special Price £1,198.80 £999.00

Availability: Usually 5 working days

Product Code

MEGMFT1731

Details

Web-only limited-time deal - Choose one of the following FREE bundles when you order:

Option 1 - Martindale LOKKIT1 Comprehensive Lock Out Kit
Option 2 - Martindale TL77 Test Wander Lead (30m) + SB13 R2 Socket Adaptor
Option 3 - Martindale VT12 Voltage & Continuity Tester + PD240 Proving Unit

The versatile Megger MFT1731 has it all, reliability, ruggedness and a comprehensive range of tests, giving you excellent value for money. No matter whether you are carrying out domestic installation or industrial testing, the MFT1731 will meet your expectations.

This tester has an internal memory, allowing for storage of test results for download to the Megger PowerSuite Onsite software. The inclusion of BluetoothTM technology also enables you to transfer data to a laptop in the field, effectively filling out your test certificate as you go.

Not all multifunction testers are the same, and the Megger is no exception. Unique processes enable this unit to carry out tests that others cannot. The full feature list is below:

Two Wire Non-Trip & High Current Loop Testing - Megger Unique Feature

This technology ensures you can carry out a non-trip loop test using the two wire method, with a resolution of 0.01Ω. PFC & PSC measurements are carried out at the same time as the loop test, with the results being displayed on the LCD simultaneously and it won\'t trip 6A MCBs. Three wire L-PE non-trip testing is also available. In addition, high current L-L & L-N tests can be carried out.

Insulation Testing

Four ranges are available, 100V, 250V, 500V and 1000V, with live circuit protection built-in and an adjustable buzzer threshold. Both the test voltage and resistance measurement are displayed and you have the option to inhibit the test at 25V or 50V.

Continuity Testing

Standard 200mA continuity testing, with a further 15mA low current option. Lead resistance is stored in the memory, even when the tester has been powered down. Other test features include auto-start and a fast buzzer with adjustable threshold. Resistance measurement ranges from 0.01Ω to 99.9kΩ

RCD Testing

Auto test feature makes RCD testing simple and the MFT1731 can test a range of RCD types including A, AC, B, Selective, programmable, 3 phase and B type RCDs. There is an auto-start feature and a ramp test that allows you to measure the exact trip current.

Earth Ground Testing

Using an optional spike kit (included with the MFT1731ONSITE) you can carry out a 3 pole ground resistance measurement.

Other Electrical Tests

Voltage measurement from 10 - 600V AC / DC, phase rotation and frequency measurement are all available on this model. In addition earth leakage measurements can be carried out with the optional Megger I-Clamp attachment.

Key Safety Features

Dust and rain proof to IP54, this tester has been designed to withstand the toughest environments, the Megger MFT1731 won't go bang if it's connected across phases, if it gets dropped or even when it\'s used in the rain. Protection against selection of the wrong range or accidental connection to live circuits is also included, even if the test button is locked on.

* requires in-service date to be filled in

More Info

More Information
Manufacturer	Megger
Manufacturer Part Number	1008-128
GTIN	5036175234457
Manual	MFT1731
Datasheet	MFT1731
Earth test	Yes
Type B RCD test	No

Specifications

General Specification

Accuracy

Insulation test:

1000 Volts 10 kΩ - 999 MΩ ±3% ±2 digits
500 Volts. 10 kΩ - 500 MΩ ±3% ±2 digits >500 MΩ ±10% ±4 digits
250 Volts. 10 kΩ - 250 MΩ ±3% ±2 digits >250 MΩ ±10% ±4 digits
100 Volts. 10 kΩ - 100 MΩ ±3% ±2 digits >100 MΩ ±10% ±4 digits
EN61557 range: 10 kΩ - 999 MΩ (1000 V range)
Voltage display: ±3% ±3 digits ±0.5% of rated voltage
Max service error: ±15% ±2 digits.
Short circuit current: 1.5 mA nominal test current
Test current on load: ≥1 mA at min. pass values of insulation
Output voltage tolerance: -0% +20% at rated load or less

Continuity / Resistance:

Intrinsic accuracy: ±2% ±2 digits (0.01 Ω to 99.9 Ω), ±5% ±2 digits (100 Ω to 99.9 kΩ)
EN61557 range: 0.1 Ω to 99.9 kΩ
Open circuit voltage 5 V ±1 V
Test current at 200 mA (0 Ω to 2 Ω): >200 mA @ ≤2 Ω
Test current at 15 mA (0 Ω to 2 Ω): >15mA @ ≤2 Ω
Max Service error: ±12% ±2 digits.

Loop test 2Hi (L-PE, L-N, L-L):

Intrinsic accuracy: ±5% ±3 digits
Display range: 0.01 Ω to 1000 Ω
Supply: 48 V to 480 V* (45 Hz to 65 Hz)
Test current high: 4.0 A (at 230 V)
PSCC range: 20 kA
EN61557 range: 0.30 Ω to 1000 Ω
Max service error: ±10% ±2 digits

Loop test 3Lo, 2Lo (L-E):

Intrinsic accuracy: 0.01 Ω to 39.9 Ω ±5% ±5 digits
40.0 Ω to 999 Ω ±10% ±5 digits
Display range: 0.01 Ω to 1000 Ω
Supply: 48 V to 280 V (45 Hz to 65 Hz)
Test current: Pulsed
PFC range: 20 kA
EN61557 range: 1.0 Ω to 1000 Ω
Max service error: ±10% ±2 digits

RCD test:

Intrinsic current accuracy:
No trip test: (1/2xI) –10% to 0%
Trip test: (1xI, 2xI and 5xI) +0% to +10%.
Ramp test current: ±5% ±1 digit
Trip time: ±1% ±1 ms
Programmable step increments: 10 mA to 50 mA - 1 mA steps, 50 mA to 500 mA - 5 mA steps, 500 mA to 1000 mA - 10 mA steps.
Supply: 48 V - 280 V 45 Hz to 65 Hz
Max service error: ±10% ±2 digits

Voltage:

Intrinsic accuracy: ±2% ±1 V
EN61557-1 Range: 10 V to 600 V
Phase rotation indication.
Max service error: ±5% ±2 digits

Frequency:

Intrinsic accuracy: ±0.5% ±2 digits
Resolution: 0.1 Hz
EN61557 Range: 15 Hz to 400 Hz
Max service error: ±5% ±3 digits

Earth Test Ranges:

Intrinsic accuracy: ±2.0% ±3 digits
ART method ±5.0% ±3 digits
Stakeless method ±7.0% ±3 digits
Resolution: 0.01 Ω
EN61557 range: 1.0 Ω to 1.99 kΩ
Current: 0.45 mA or 4.5 mA.
Noise rejection: 20 V pk/pk (7 V rms)
Max probe resistances: Rp, Rc = 100 kΩ @ 50 V
Max service error: ±20% ±3 digits

Current (via Clamp meter):

Intrinsic accuracy: ±5.0% ±3 digits
Resolution: 0.1 mA
EN61557 Range: 0.5 mA – 199 A
Max service error: ±10% ±2 digits

mV Sensor input

Including temperature (third party module)
±1.0% ±2 digits
Range 0.0 mV to ±199.9 mV dc
Resolution 0.1 mV

Internal memory

Capacity 1000 results
Bluetooth® communication

Power consumption:

Nominal minimum: 60 mA (Voltage range with no input voltage)
Nominal maximum: 350 mA (Active Insulation test set to 1000 V / 1 MΩ)
Range: -20 °C to +55 °C

Temperature (via 3rd Party Module):

Intrinsic accuracy: ±1.0% ±2 digits
Resolution: 1 °C
Range: -20 °C to +100 °C

Environmental Specification

Temperature

Operational range: -10 °C to +55 °C
Storage range: -25 °C to +70 °C

Humidity

Operating humidity: 90% R.H. at +40 °C max.

Altitude

2000 m to full safety specification.

Weight: 1000 g ±10% including batteries but excluding test leads, accessories and carry case.

Dimensions: 150 mm high x 85 mm wide x 235 mm deep (6 in. x 3.5 in. x 9.5 in.)

IP rating: IP54

Power Supply

Battery: Primary 6 x 1,5 V cells IEC LR6 type (AA alkaline,).
Battery: Rechargeable: 6 x 1.2 VNiMH cells EC HR6.
Display shows rechargeable [NiMH] when the battery type is changed in setup option (Section 10).

Safety / EMC
EMC In accordance with IEC61326 edition 2.
Locations: Class B locations.
Safety in accordance with BS EN 61010 -1 2010 + 61010 -30:2010
Installation Category: 600 V CAT III / 300 V CAT IV. (Max Phase to Phase 550 V)
In addition switch probe and test leads are designed to meet IEC 1010-031:2008, Double insulated to Installation Category III, 300 V phase to earth, 500 V phase to phase.

Contents

Megger MFT1731 Multifunction Tester
Full user guide on CD
Calibration certificate
Switched probe SP5
Neck strap - Megger embroidered
3 Wire lead set with prods and clips
Mains plug test lead (BS1363)
AC battery charger
