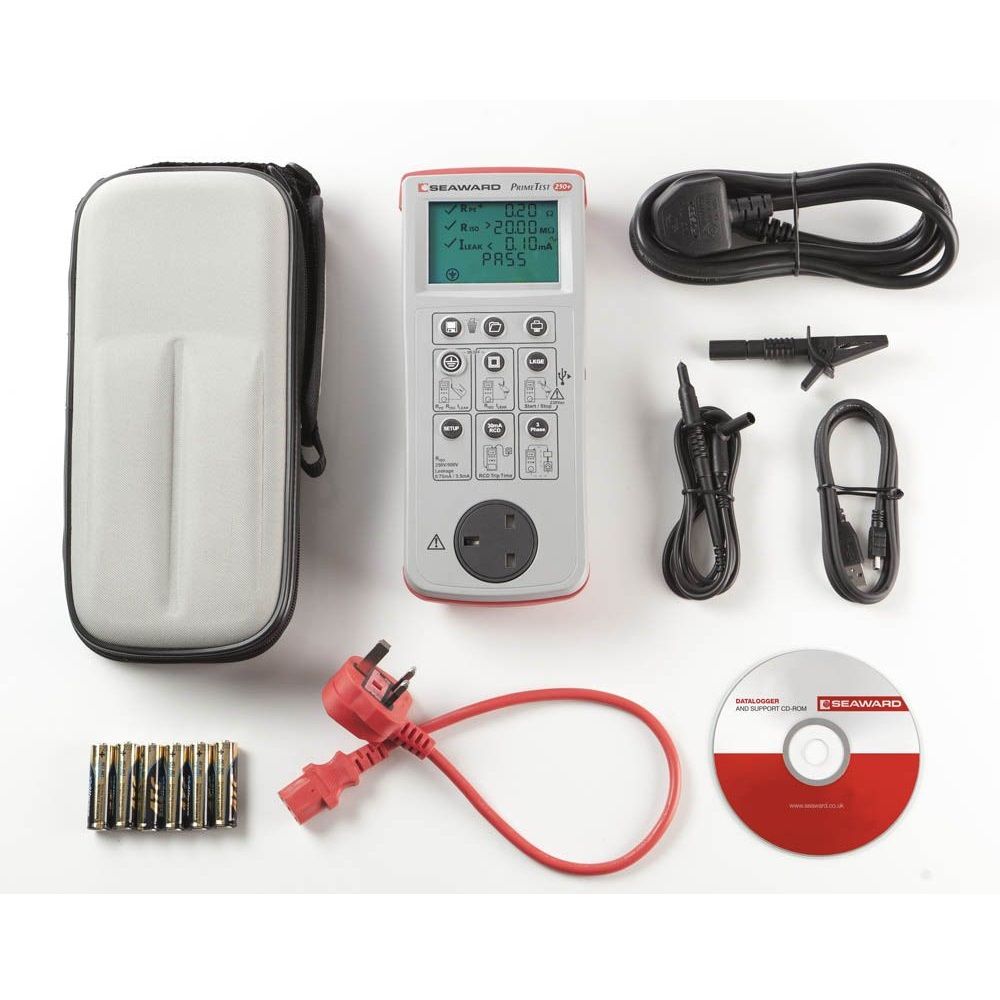

Seaward Primetest 250+ Downloadable PAT Tester
- Simple Downloading PAT Tester
- Pass / Fail Indication with Results
- Safely Test Surge Protected Devices
- Low Current Bond Test for Sensitive IT Equipment
- Downloading Software Included
- RCD & Three Phase Leakage Test Capability
Availability: In stock
Ships tomorrow if ordered in the next 1 day, 8 hours and 33 minutes!
A FREE bundle (1000 PASS + 200 FAIL labels + Seaward PAT Guide) is now available with this item. Just select it from the drop-down menu.
This innovative PAT tester from Seaward combines the simplicity of the basic testers with the capability of result storage and download. This is an excellent PAT for those who are working on a budget, but have a lot of items to test and need to speed up the process.
The Primetest 250 plus features a simple one-button function to perform the required test sequence and with an internal memory of 999 results, you can easily store your days work for later download. It's battery powered, so no need to connect cables whilst testing, and there is an option to connect a label printer for fast printing of pass or fail labels. Whereas some label printers can be quite costly to run, the Test & Tag Pro works with a smaller label and you get 400 on a roll.
The software supplied with this unit is for basic data transfer, which means you can export the data to a csv file for importing into other software, or producing a report via Excel. The Primetest 250+ will also download to PATGuard 3 software for users who already have it, or for those who want a more powerful reporting software.
The Primetest 250 Plus is an excellent handheld PAT that also enables you to adjust the test voltage from 500V to 250V on the insulation range, and the leakage current threshold from 0.75mA to 3.5mA. It will carry out the following PAT Tests:
- Class I: Earth Bond, Insulation & Sub Leakage
- Class II: Insulation & Sub Leakage
- Powered Leakage Test
- Powered 3 Phase Leakage Test
- RCD Test
|Manufacturer Part Number||403A910|
|250V Insulation Test||Yes|
|Custom Test Sequence||No|
|Datasheet||Primetest 250 Plus|
