Konica Minolta T-10MA, Professional Illuminance Meter (Ex-Demo)

*** Ex-Demo unit for sale.  Save yourself £££ by buying our demo unit which is less than 6 mths old ***

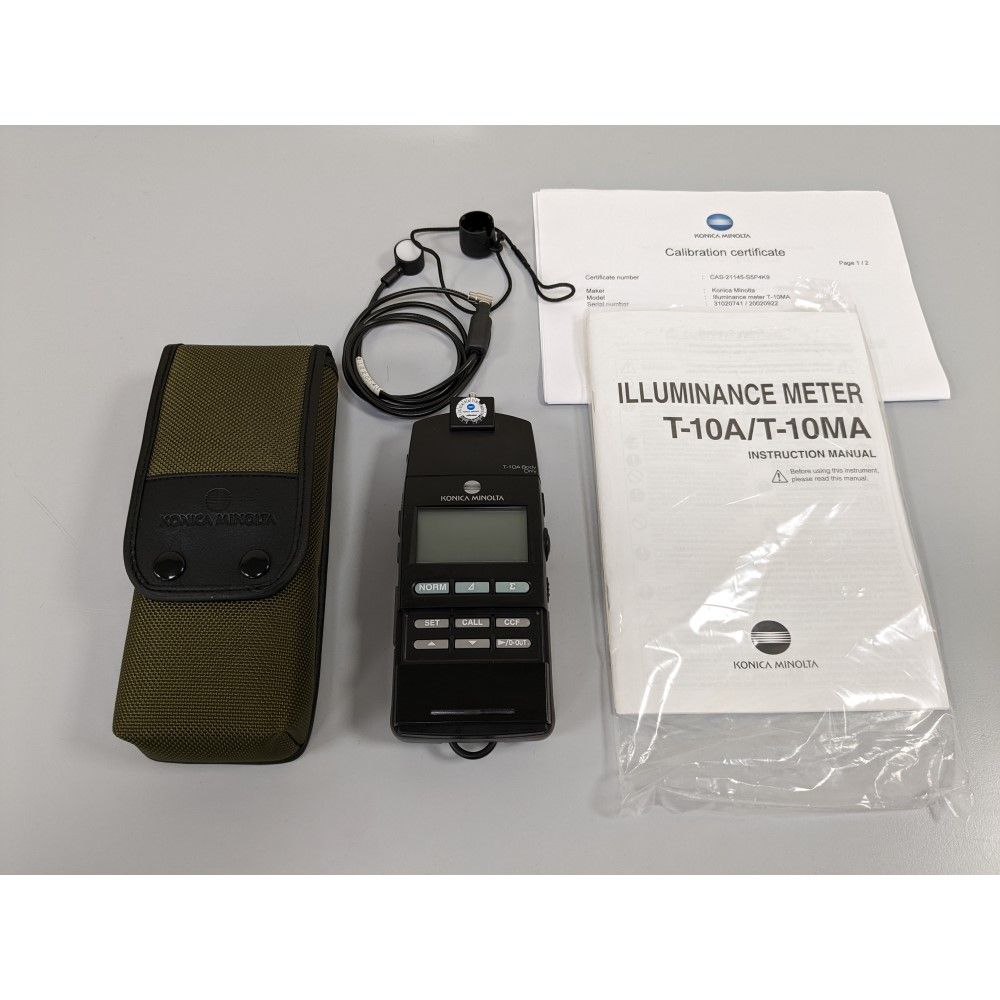

Condition report:  A2 - The unit shows small signs of use with very minor surface scuffing to the sensor cover and to the battery compartment cover.  The unit has been fully assessed and calibrated by Konica Minolta prior to sale.  Very good condition, see photos of actual product.  Item will come re-packaged.  Only 1x unit available.

The Konica Minolta T-10MA is a professional grade illuminance meter that features a small receptor head of 16.5mm diameter with a 1m connecting cable, enabling measurements on small surfaces or situations where the receptor head of the T-10A cannot be placed. As a professional measuring instrument from Konica Minolta, the device conforms to international standards and can be calibrated each year to record traceable data.

The T-10MA is capable of measuring intermittent light sources. It has a very large measuring range of 0.01 to 299,000 lx with automatic range switching and a large, backlit LCD screen.

For special applications, the T-10MA is available with waterproof receptor and with either 5m or 10m connecting cable (T-10WsA).

Although designed for portability and simplicity, the instrument can also be connected to AC Power and operated via PC connection, refcording data directly into Excel for reporting and analysis. A single measuring instrument can be connected to upto 30 sensors to form a multi-point system for characterising lighting over a large area (requires additional measuring heads, accessories, AC power and PC connection).

Main Features

• Small receptor head to measure illuminance in special situations
• Accurate measurement of Pulse modulated Light sources (PWM)
• Automatic zero adjustment for immediate measurement
• Auto-range function for a wide measurement range
• LCD backlight for low illuminance levels
• Key cover to prevent accidental operation.
• USB interface supports direct connection to a PC
• Powered by standard AA-size batteries or AC Adaptor

Applications

• Measurement in confined areas
• Spot measurements where illuminated area is small

The operational functions are accessed using just 3 large buttons. An additional operating panel for less commonly used features is found under a sliding cover. This way, you are not distracted by additional operating elements during everyday work. A large, backlit liquid crystal display shows the measurement values; the illumination is automatically switched on as soon as it gets too dark. The T-10MA offer the following possibilities for analysis:

• Absolute measurement of illuminance in Lux and foot candles.
• Comparison of illuminance values as a difference or percentage value. The target level can be entered by measurement or manual entry with the keypad.
• Integrated illuminance (exposure) with a display of the integration time and the illuminance mean value.
• Other evaluation options with the software optional T-S10w
