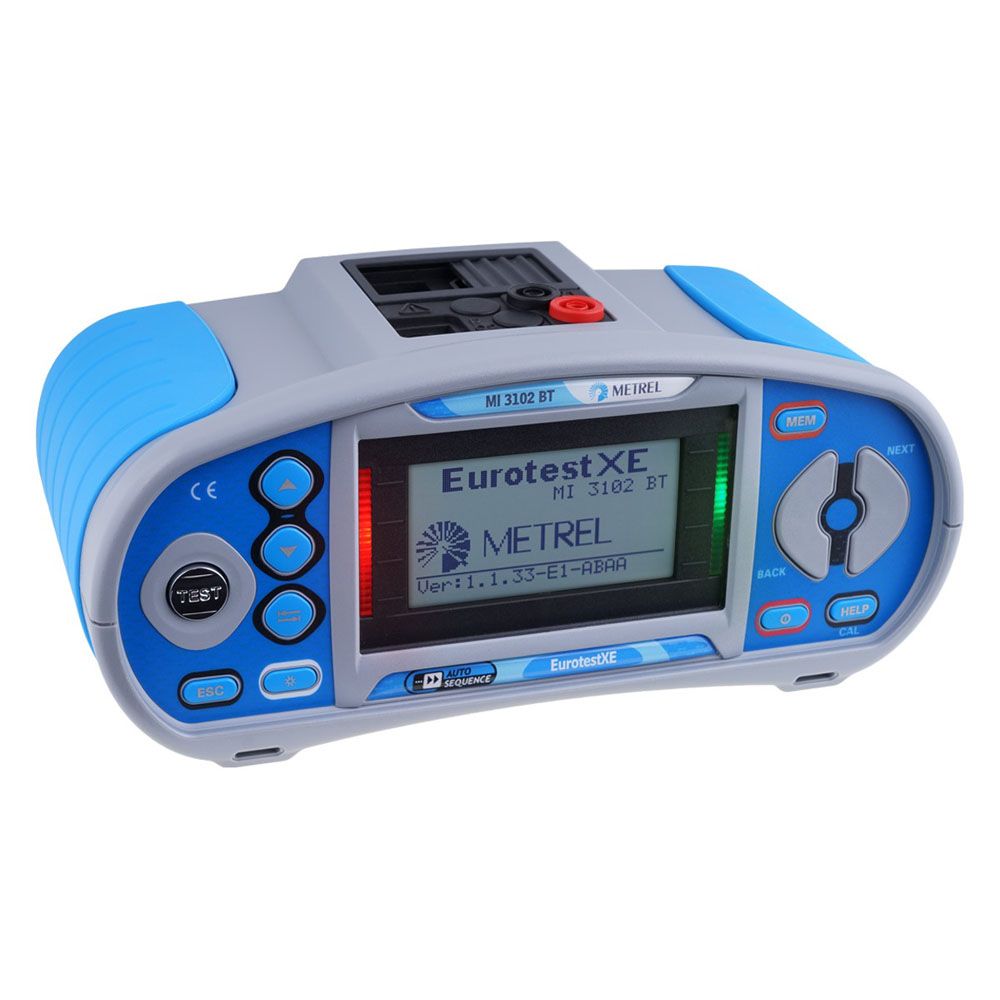

The MI 3102BT is a downloading 18th Edition tester, supplied with software for producing test certificates. Bluetooth connectivity also enables the tester to transmit information to the Metrel Android app, which in turn allows you to create circuit information and upload this to the tester.
Unique features of this particular model include power and harmonics measurement. Also with an additional accessory, you can carry our illumination measurements.
In terms of electrical tests, the MI3102BT has it all, carrying out the following:
50V - 1000V Insulation Tests
7mA & 200mA Continuity
Line / Loop Impedance
Non Trip Earth Loop Test
R1 + R2 Calculation
True RMS Voltage & Frequency
Phase Sequence
Power & Harmonics
RCD Testing (Auto, General & Selective, type AC, A, F, B, B+)
Earth Resistance (3 Wire and 2 clamps method)
Specific Earth Resistance with optional RO Adaptor
True RMS Leakage & Load Current Measurement
First Fault Leakage Current (ISFL)
Testing of Insulation Monitoring Devices (IMDs)
Illumination (optional accessory required)
Integrated into the tester are characteristics of fuses and RCDs for pass / fail evaluation of test results. All results can be stored and downloaded to the software (included) in order to produce test reports.
Power supply adapter with mains cable + 6 NiMH rechargeable batteries, size AA
Test probe, 3 pcs (brown, blue, green)
Crocodile clip, 3 pcs (brown, blue, green)
USB cable
RS232 - PS/2 cable
Test lead 3x1.5m
UK measuring cable A 1003
Tip commander A 1401 with AAA 1.5V battery
Earth test set, 3-wire, 20 m (test lead, 4 m; 2 x test lead, 20 m; 2 x test rod) S 2026 - UK1
Soft carrying bag A 1289
Soft carrying neck belt
PC Software EuroLink PRO
PC SW MESM PRO licence
Android App aMESM license
Calibration certificate
Short instruction manual
Instruction manual on storage media
Handbook on storage media
