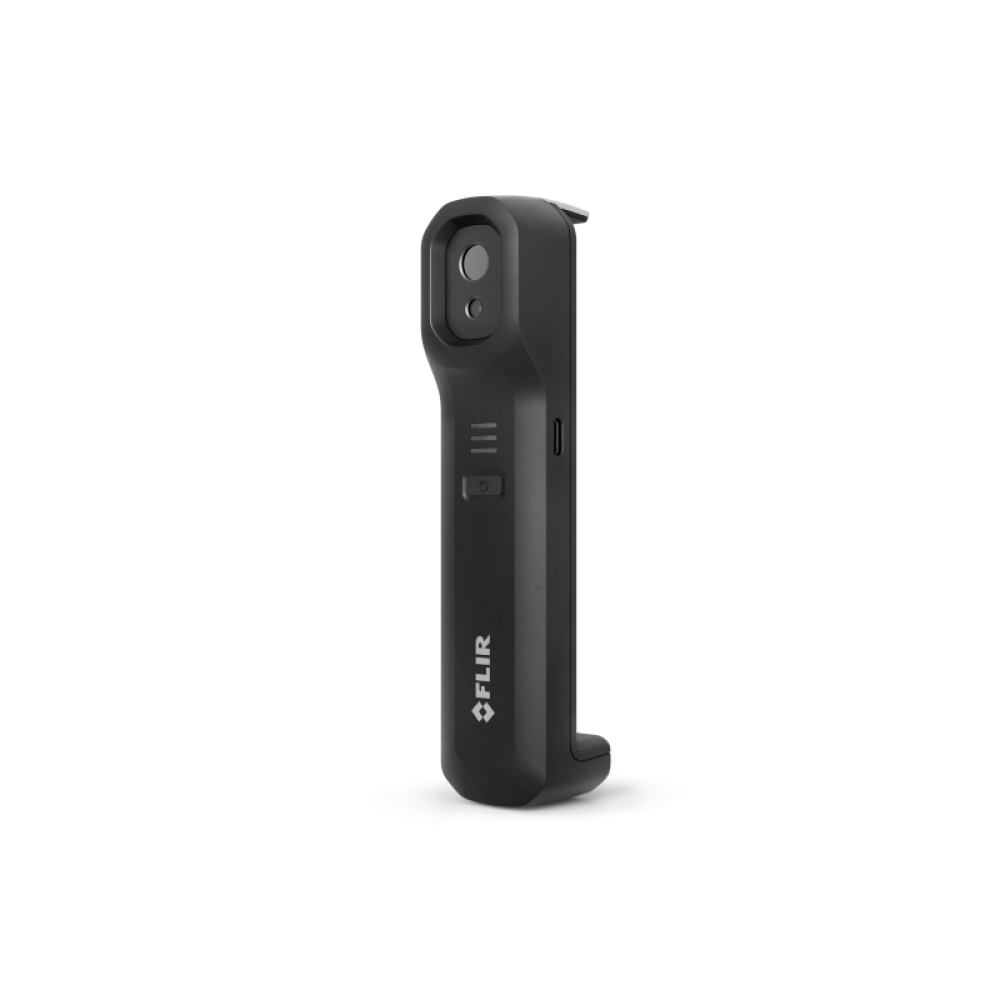

FLIR ONE Edge, Wireless Thermal Camera (for iOS and Android)

Teledyne-FLIR
  • Wireless Connectivity for iOS® and Android™ Smart Devices
  • Can also clip to your smartphone/tablet to conduct one-handed inspections
  • Great for inspecting targets that are out of reach
  • 80 x 60 thermal resolution (4,800 pixels)
  • 70mK thermal sensitivity
  • -20 to +120 degrees centigrade object temperature range
£358.80 £299.00

Availability: Usually 1-2 weeks

Product Code
FLIONEEDGE

The FLIR ONE Edge is an innovative and rugged thermal imager that allows you to easily inspect hard-to-reach areas from any position or angle.

Connect the camera wirelessly to your smart device so you can inspect out-of-view targets – or clip it onto your phone or tablet for one-handed operation.

With FLIR MSX®, you can take detailed thermal images to help you clearly identify where a problem is located.

The FLIR ONE app provides guidance to help you troubleshoot and verify repairs in many do-it-yourself (DIY) and professional applications including home, automotive, commercial electrical, and mechanical inspection.

The wireless connection allows the same camera to be used with both Android and iOS devices so you can easily share tools with your team members.

All your thermal images and videos are saved directly to your mobile device making them easily accessible for further use. Connecting to FLIR Ignite™ allows you to instantly upload your files to the cloud where you can create reports as well as organize, store, and share data for a more efficient workflow.

More Information
ManufacturerTeledyne-FLIR
Manufacturer Part Number11001-0101
GTIN4743254006065
Write Your Own Review
You're reviewing:FLIR ONE Edge, Wireless Thermal Camera (for iOS and Android)
Your Rating

Thermal Resolution

80 × 60 (4,800 pixels)

Battery life

Approximately 2 hours 30 minutes

Object Temperature Range

-20°C to 120°C (-4°F to 248°F)

Accuracy

±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)

Operating Temperature

-10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)

Spot Meter

Hottest, Coldest and 3 spot measurement

IMAGING & OPTICAL

Adjustable MSX distance

30 cm - Infinity

Focus

Fixed 30 cm - Infinity

Frame Rate

8.7 Hz

HFOV/VFOV

54° ±1° / 42° ±1°

Image Modes

MSX, Infrared, Visual

Palette

Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel

Shutter

Automatic/Manual

Thermal Resolution

80 × 60 (4,800 pixels)

Thermal Sensitivity/NETD

70 mK

Thermal Sensor

Pixel size 12 µm, 8 to 14 µm spectral range

Visual Resolution

640 × 480

VividIR

No

POWER

Battery charge time

60–90 min for fully charged
15 min charging, from empty battery, gives 40 min operating time

Battery life

Approximately 2 hours 30 minutes

Charging Method

Female USB-C (5V/1A)

MEASUREMENT & ANALYSIS

Accuracy

±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)

Measurement Corrections

Emissivity; Reflected apparent temperature (22°C / 72°F)

Object Temperature Range

-20°C to 120°C (-4°F to 248°F)

Spot Meter

Hottest, Coldest and 3 spot measurement

GENERAL

Additional Integrations

Available via device App Store. Development SDK available: https://www.flir.com/developer/mobile-sdk/

Battery charge monitor

0 to 100%

Clip Span

130 mm (min) / 195 mm (max)

Compatible with FLIR software

FLIR ONE app, FLIR Ignite, FLIR Thermal Studio

Device Compatibility

iOS (version 15 and later) or Android (version 11 and later) smartphones and tablets

Dimensions (H x W x D)

37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in)

Remote Operation

Up to 5 m (16.4 ft) from smart device

Weight

153 g (5.4 oz)

ENVIRONMENTAL & CERTIFICATIONS

Certifications

RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU

Drop test

Drop from 2 m (6.56 ft)

Emissivity Settings

Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%

IP Rating

IP54

Non-Operating Temperature

-40°C to 70°C (-40°F to 158°F)

Operating Temperature

-10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)

COMMUNICATION & DATA STORAGE

Bluetooth

Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device

Capture modes

Video, Still image

Charging

Female USB-C (5V/1A)

File Formats

Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android)

WiFi

802.11 a/b/g/n
