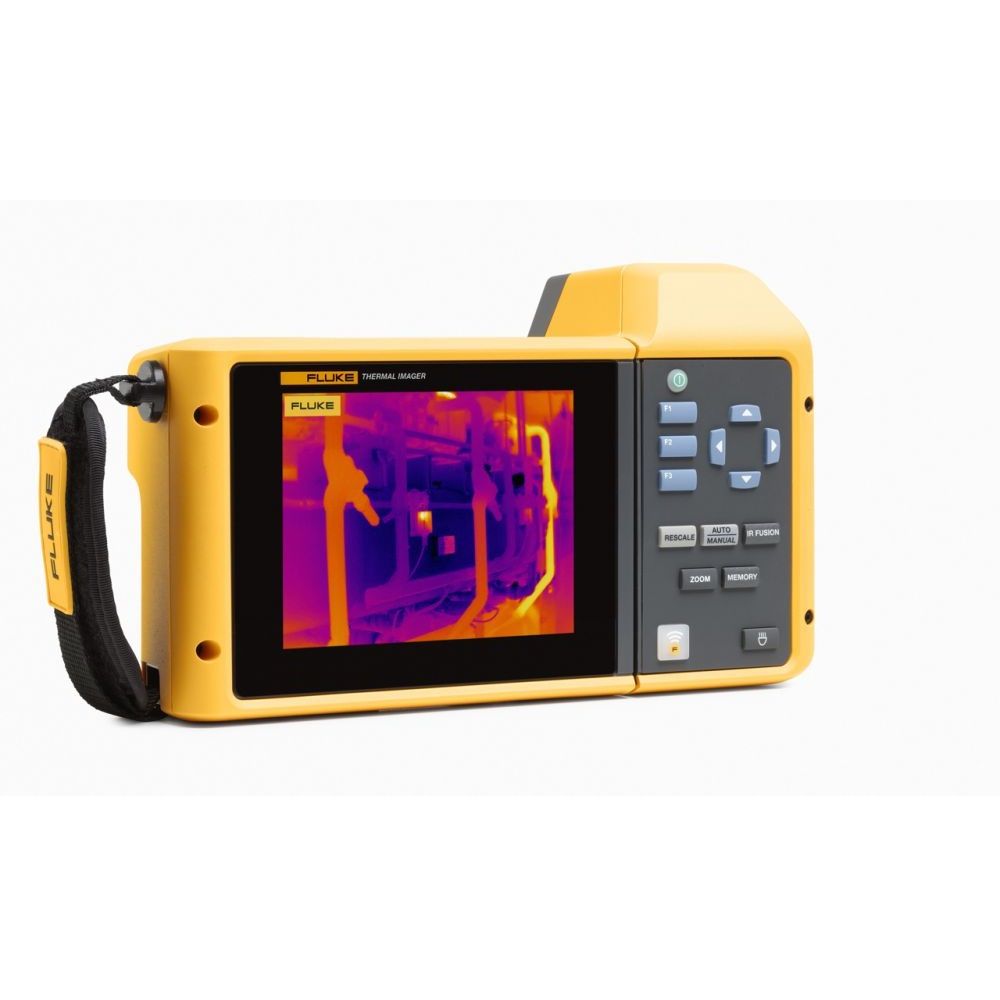

Fluke TIX501 - High Resolution Thermal Camera

Fluke TiX501 Thermal Camera, 9 Hz with a pixel resolution of 640 x 480 (307,200 measurement points).

Capture the high definition thermal images needed to complete reliability inspections, make industrial maintenance decisions, conduct building diagnostic testing and troubleshooting. Take advantage of analytics and reports with software that offers asset tagging, streaming infrared data, trend analysis and remote camera operation. 5.7-inch touchscreen LCD with on-camera analytics for in-field image analysis.

Flexible and Ergonomic Form Factor. Easily navigate over, under and around objects with full 240° rotating lens and see the image before you capture it.

Outside, the rotating screen lets you make adjustments to minimize glare, and the large 5.7 inch LCD touchscreen delivers a premium in-field viewing experience.

Key Features include:

• Infrared resolution: 640 x 480 (307,200 pixels)
• Temperature measurement range -20 °C to +650 °C
• Thermal sensitivity: ≤ 0.075 °C at 30 °C target temp (75 mK)
• IFOV (spatial resolution): 0.93 mRad, D:S 1065:1
• Field of view: 24 °H x 17 °V
• Lasersharp Autofocus
• Image file formats: bmp, jpeg, is2, is3, AVI
• Remote control operations: Remote display through Fluke Connect
• User defined measurement boxes: 1 expandable-contractible measurement box with MIN-MAX-AVG temp display
• Ruggedized touchscreen: 5.7 inch (landscape), 640 x 480 LCD
• Ergonomic design: 240 ° rotatable (articulating) lens
• Digital Zoom: 2x
• Edit and analyze captured images on camera
• Standard video recording formats
• IR-PhotoNotes: 2 images
• MATLAB® and LabVIEW® tool boxes: Integrate camera data, infrared video and images into software to support R&D analysis
• Engineered to withstand 1 meter (3.3 feet) drop with standard lens
• Two-year manufacturer warranty

• Size (H x W x L): 27.3 cm x 15.9 cm x 9.7 cm
• Weight (battery included): 1.54 kg
