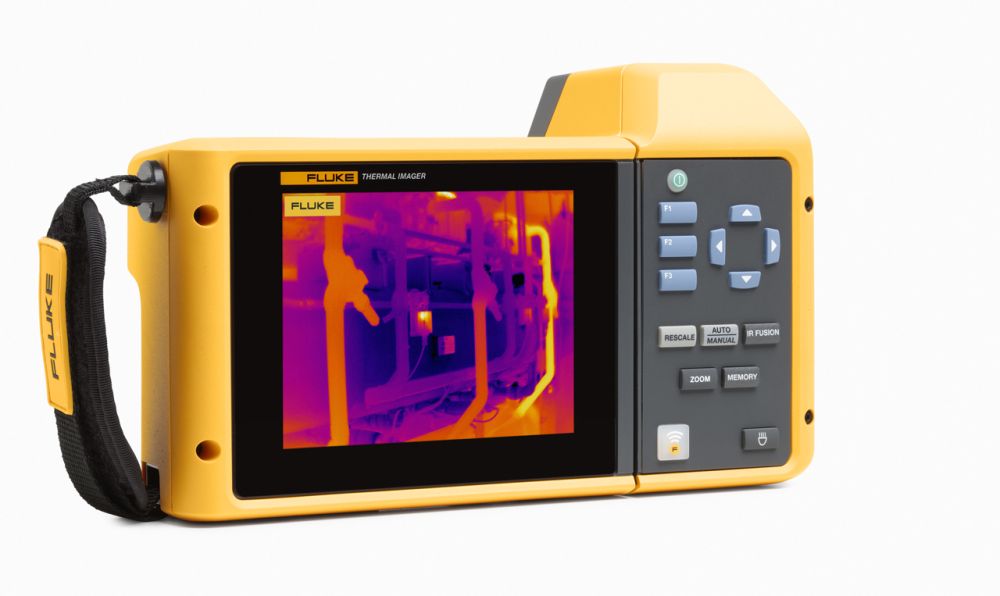

Fluke TIX580 - High Resolution Thermal Camera

Fluke
  • 240 ° rotatable (articulating) lens
  • SuperResolution: 1280 x 960 image
  • Temp range -20 °C to +1,000 °C
  • TI sensitivity: ≤ 0.05°C (50 mK)
  • Radiometric Video Recording
  • Digital zoom 2x, 4x, 8x
£12,598.80 £10,499.00

Availability: Available to Order

Product Code
FLUTIX580

Fluke TiX580 Thermal Camera, 9 Hz with SuperResolution taking the pixel count from 640 x 480 (307,200 measurement points) up to the equivalent of 1280 x 960 pixels giving 4x the level of data.

Capture the high definition thermal images needed to complete reliability inspections, make industrial maintenance decisions, conduct building diagnostic testing and troubleshooting. Take advantage of analytics and reports with software that offers asset tagging, streaming infrared data, trend analysis and remote camera operation. 5.7-inch touchscreen LCD with on-camera analytics for in-field image analysis.

Flexible and Ergonomic Form Factor. Easily navigate over, under and around objects with full 240° rotating lens and see the image before you capture it.

Outside, the rotating screen lets you make adjustments to minimize glare, and the large 5.7 inch LCD touchscreen delivers a premium in-field viewing experience.

Key Features include:

  • SuperResolution: Taking the 640 x 480 (307,200 pixels) up to a 1280 x 960 image.
  • Temperature measurement range -20 °C to +1000 °C
  • Thermal sensitivity: ≤ 0.05°C at 30 °C target temp (50 mK)
  • IFOV (spatial resolution): 0.93 mRad, D:S 1065:1
  • Field of view: 24 °H x 17 °V
  • Lasersharp Autofocus and Multisharp Focus
  • Image file formats: bmp, jpeg, is2, is3, AVI
  • Remote control operations: Remote display through Fluke Connect
  • User defined measurement boxes: 3 expandable-contractible measurement box with MIN-MAX-AVG temp display
  • Ruggedized touchscreen: 5.7 inch (landscape), 640 x 480 LCD
  • Ergonomic design: 240 ° rotatable (articulating) lens
  • Digital Zoom: 2x, 4x and 8x
  • Edit and analyze captured images on camera
  • Standard and radiometric video recording formats
  • Remote control and display via Fluke Connect
  • IR-PhotoNotes: 5 images
  • AutoCapture (temp and interval)
  • Line Temperature Graph
  • MATLAB® and LabVIEW® tool boxes: Integrate camera data, infrared video and images into software to support R&D analysis
  • Engineered to withstand 1 meter (3.3 feet) drop with standard lens
  • Two-year manufacturer warranty

  • Size (H x W x L): 27.3 cm x 15.9 cm x 9.7 cm
  • Weight (battery included): 1.54 kg
More Information
ManufacturerFluke
Manufacturer Part NumberFLUTIX580
GTIN095969835169
DatasheetDownload
Write Your Own Review
You're reviewing:Fluke TIX580 - High Resolution Thermal Camera
Your Rating
  • SuperResolution: Taking the 640 x 480 (307,200 pixels) up to a 1280 x 960 image.
  • Temperature measurement range -20 °C to +1000 °C
  • Thermal sensitivity: ≤ 0.05°C at 30 °C target temp (50 mK)
  • IFOV (spatial resolution): 0.93 mRad, D:S 1065:1
  • Field of view: 24 °H x 17 °V
  • Lasersharp Autofocus and Multisharp Focus
  • Image file formats: bmp, jpeg, is2, is3, AVI
  • Remote control operations: Remote display through Fluke Connect
  • User defined measurement boxes: 3 expandable-contractible measurement box with MIN-MAX-AVG temp display
  • Ruggedized touchscreen: 5.7 inch (landscape), 640 x 480 LCD
  • Ergonomic design: 240 ° rotatable (articulating) lens
  • Digital Zoom: 2x, 4x and 8x
  • Edit and analyze captured images on camera
  • Standard and radiometric video recording formats
  • Remote control and display via Fluke Connect
  • IR-PhotoNotes: 5 images
  • AutoCapture (temp and interval)
  • Line Temperature Graph
  • MATLAB® and LabVIEW® tool boxes: Integrate camera data, infrared video and images into software to support R&D analysis
  • Engineered to withstand 1 meter (3.3 feet) drop with standard lens
  • Two-year manufacturer warranty

  • Size (H x W x L): 27.3 cm x 15.9 cm x 9.7 cm
  • Weight (battery included): 1.54 kg
  • Thermal imager with standard infrared lens
  • AC power supply and battery pack charger (including universal AC adapters)
  • Two, rugged lithium ion smart battery packs
  • USB cable
  • HDMI video cable
  • Bluetooth headset (where available)
  • Rugged, IP67 rated, airtight hardcase with custom foam insert
  • Adjustable neck and hand strap
  • Available by free download Fluke Connect® SmartView® desktop software and users manual
