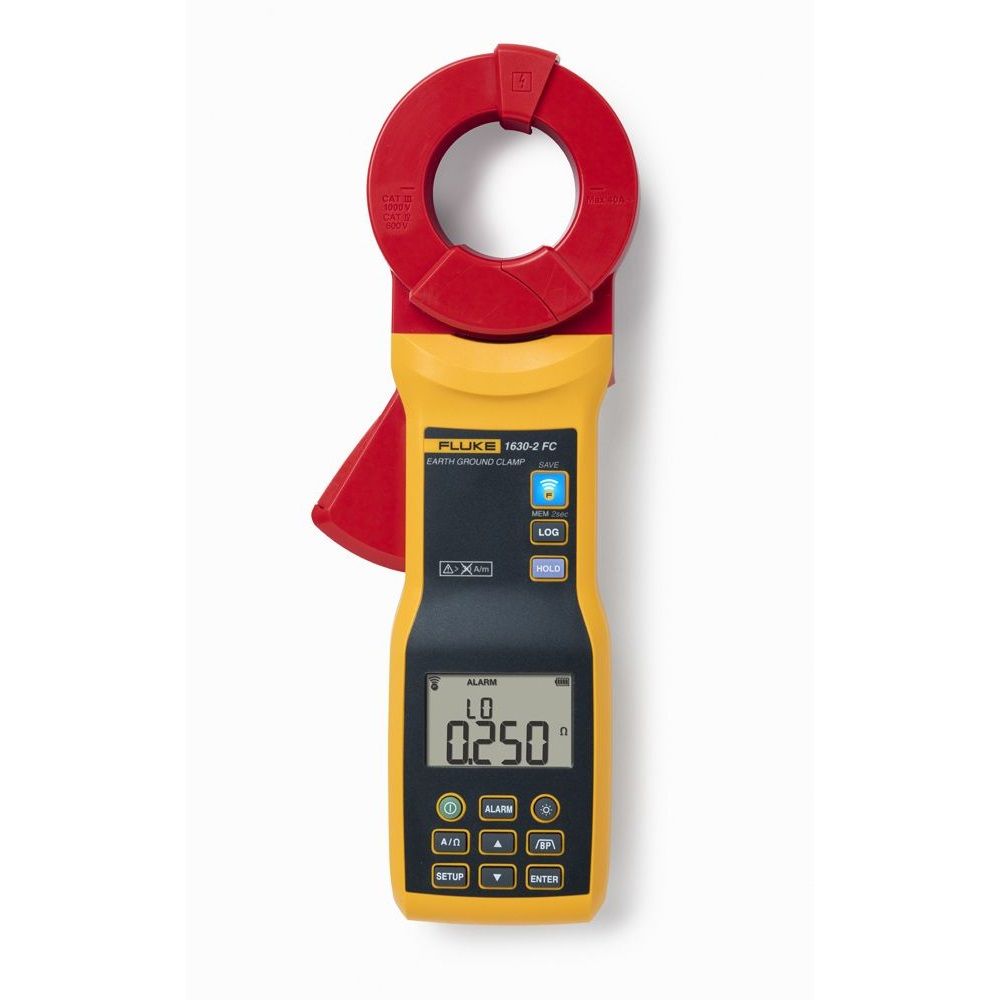

The Fluke 1630-2 FC is a stakeless earth ground loop and ac leakage current clamp for fast, safe indoor/outdoor earth ground resistance and ac leakage current tests.
This is the FC version with Fluke FC wireless communications built in. If you are working in a wireless restricted area then you will require the non-FC version (available separately). All other functions and features remain the same.
Test the grounding components of equipment in hard-to-reach spaces, including areas that are indoors or fully paved and do not permit driving auxiliary test stakes. Stay on line—identify ground loop resistance without the need to disconnect then reconnect the earth electrode from the system.
The Fluke 1630-2 FC Stakeless Earth Ground Clamp is the kind of high-quality, rugged tool you expect from Fluke. Heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments.
STAKELESS MEASUREMENT
The 1630-2 FC clamp measures earth ground loop resistances for multi-grounded systems using the dual-clamp jaw. This test technique eliminates the dangerous and time-consuming activity of disconnecting parallel grounds, as well as the process of finding suitable locations for auxiliary test stakes. You can also perform ground tests in places that were previously difficult: inside buildings, on power pylons or anywhere you don’t have access to soil to place auxiliary test stakes.
With this test method, a two-process measurement is made around the earth ground wire or bus bar using the specially-designed jaw of the 1630-2 FC clamp. Auxiliary test stakes are not used at all. A known voltage is induced by the source in the clamp, and the current is measured by the sensor in the clamp. The tester automatically determines the earth loop resistance for this section of the earthing system
FLUKE CONNECT© WIRELESS SYSTEM
The 1630-2 FC supports the Fluke Connect© Wireless System (may not be available in all regions). Fluke Connect© wirelessly connects the clamp with an app on your smartphone or tablet. The app shows the ground resistance measurements on your smartphone or tablet display. You can save these measurements, GPS location from your phone and images to Fluke Connect Cloud storage and share with your team.
KEY FEATURES:
AC LEAKAGE CURRENT MEASUREMENT
Identify ac leakage currents without disconnecting the earth ground stake from the grounding system–ideal for system troubleshooting.
RUGGED
Heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments.
LOGGING MEASUREMENTS
The earth ground clamp saves time by automatically recording data at pre-set intervals and saves up to 32,760 measurements in memory at the set logging interval. Saves time by recording and storing measured values.
ALARM THRESHOLD
User-defined high/low alarm limits, for rapid measurement evaluation.
BAND-PASS FILTER
Selectable band-pass filter function removes unwanted noise from the ac leakage current measurement.
