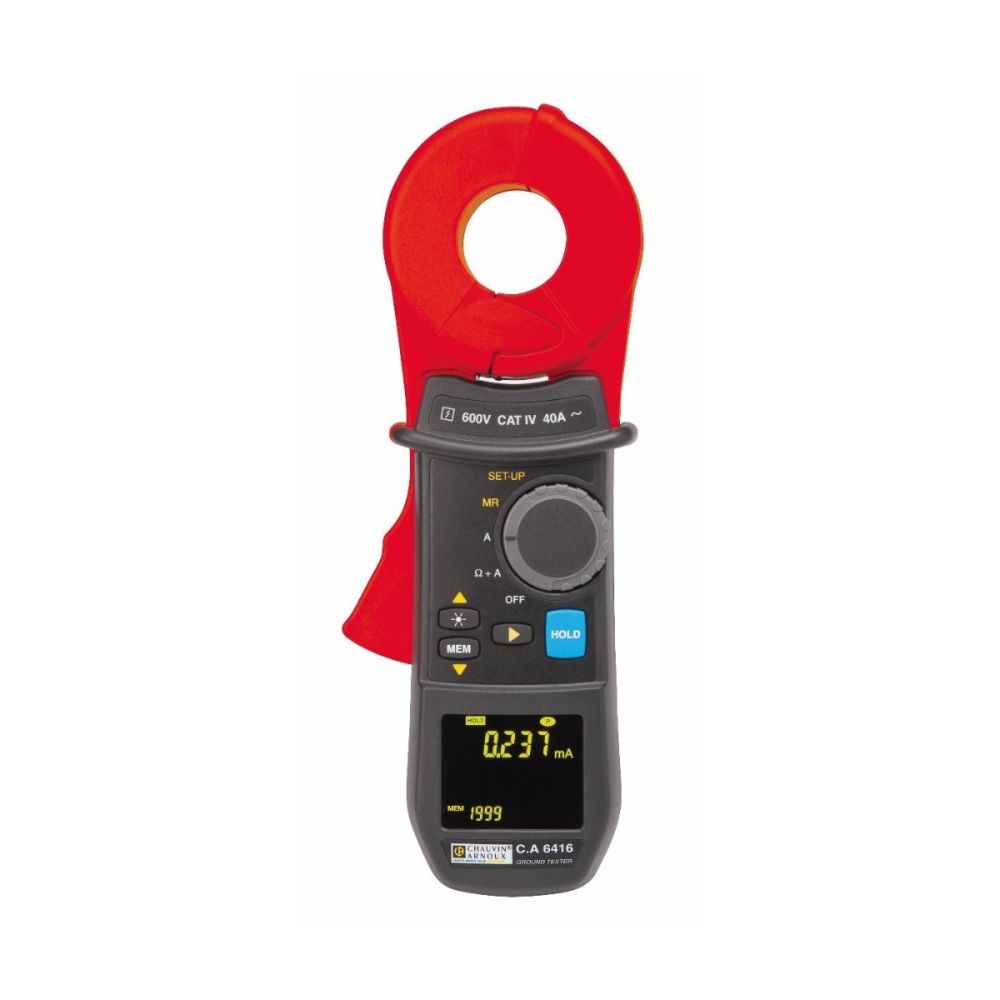

The Chauvin Arnoux CA6416 Earth Clamp (P01122015) features a 35mm clamping Ø and comes complete with a carry case and a CL1 calibration loop. Rated CAT IV 600V.
Ideal for quick earth-loop resistance measurements. The CA6416 can display the earth voltage with a dangerous voltage alarm and provide additional safety during measurement.
Particularly easy to use thanks to ergonomic innovations such as a force compensation system to keep the clamp open without any effort and an OLED display, offering visibility over an angle of 180° regardless of lighting conditions.
The automatic PRE-HOLD function when the clamp is opened and the automatic jaw calibration function at power-up help to optimize processing of the measurements provided by the clamp.
On the same screen, the CA6416 can simultaneously display:
Impedance and Leakage Current (Ω+A)
Earth Voltage
Breakdown of the resistive and inductive parts of the ground impedance
The CA6416 can also allow users to display the impedance transposed to a frequency close to the network frequency, which helps in reducing measurement errors when low values are involved.
Additional specifications:
Large measurement range: 1,500 Ω / 500 µH / 40A
Alarms on Ω, A and V
Automatic Pre-Hold mode when the clamp is opened
300 storage locations
Real-time clock for time/date-stamping of measurements
Automatic calibration of jaw opening distance at start-up
