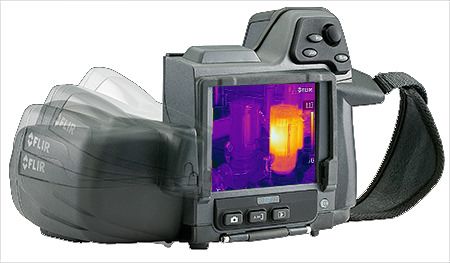

FLIR T460

The FLIR T460 is a 320 x 240 pixel thermal imaging camera, that can interpolate your images to 640 x 480 pixel resolution. It does this by capturing a series of images in quick succession in order to account for camera shake. Once done, the software will then combine the images together, increasing the resolution of your images and the accuracy of your measurement data. If you want to see just how good the enhancement is, take a look at the examples below.

In addition the resolution enhancement, the T460 has a thermal sensitivity of just 30mK, or 0.03°C. The ability to distinguish such a small temperature difference increases the detail in your thermal images, making it easier to spot even the smallest faults. The user menu is intuitive and with the touch screen feature you'll be able to operate it in no time. Images can be adjusted in camera, or in the software after capture. In camera menus include:

• Adjustment of emissivity, reflected temperature, ambient temperature, humidity and transmission of IR windows
• Multiple colour palettes including high contrast for better analysis of thermal gradients
• Multiple measurement tools available including spot, area box & line tools
• In camera radiometric video capture, ideal for trending
• High, low and interval colour alarms for fast fault detection
• Multiple image modes including full thermal, thermal MSX, thermal blend, PiP and visual only

The combination of resolution, sensitivity and measurement modes makes the FLIR T460 a great camera no matter what your application is. Whether you're carrying out electrical inspections, building diagnostics, medical scans or more, this camera will produce high quality thermal images that will enable you to diagnose problems fast.

Key Features of the FLIR T460

Temperature Range
Standard model from -40°C to +1500°C

1°C / 1% Accuracy
Best in class accuracy for a limited temperature range

320 x 240 Pixel Resolution
Software enhanced to 640 x 480 pixels

High Sensitivity
Clearly see temperature differences as low as 0.03°C

Tiltable Lens
Gives you greater flexibility, allowing you to work faster and more comfortably

Interchangeable Lenses
A wide variety of extra lenses are available, including wide angle, telephoto and close focus

Large bright 3.5" LCD Display
Touch screen ultra-bright display, ideal for use indoors and outdoors

High Quality Visual Camera
3.1 Megapixel digital camera produces crisp images in all conditions

Laser Pointer
Appears on the thermal image to associate hot spot with physical target

Flexible Interface
Easy access for video output, USB and battery charging input

Radiometric IR Video
Record radiometric video in-camera

MPEG-4 Video Capture
Record non-radiometric video in-camera

Multiple Image Modes
Full thermal, thermal MSX, thermal blend, PiP & full visual

Text & Voice Annotations
Add text comments from a pre-defined list, or soft keypad. Connect a Bluetooth headset to add up to 60 seconds of voice annotation per image

Sketch Annotations
Include a sketch with the thermal image, simply draw it sraight onto the image. Ideal for highlight areas of interest.

Digital Zoom
1x - 8x digital zoom

Multi Spectral Dynamic Imaging
An innovative feature that produces a more detailed image by superimposing the outline taken from the digital image over the thermal image

Automatic Firmware Update
Update your camera to the latest software using FLIR Tools (Included)

Meterlink
A new innovation from FLIR, and combines their Extech range of products with the FLIR cameras. Where Meterlink is available, the camera can link up via Bluetooth any test and measurement product in the FLIR Meterlink range.
