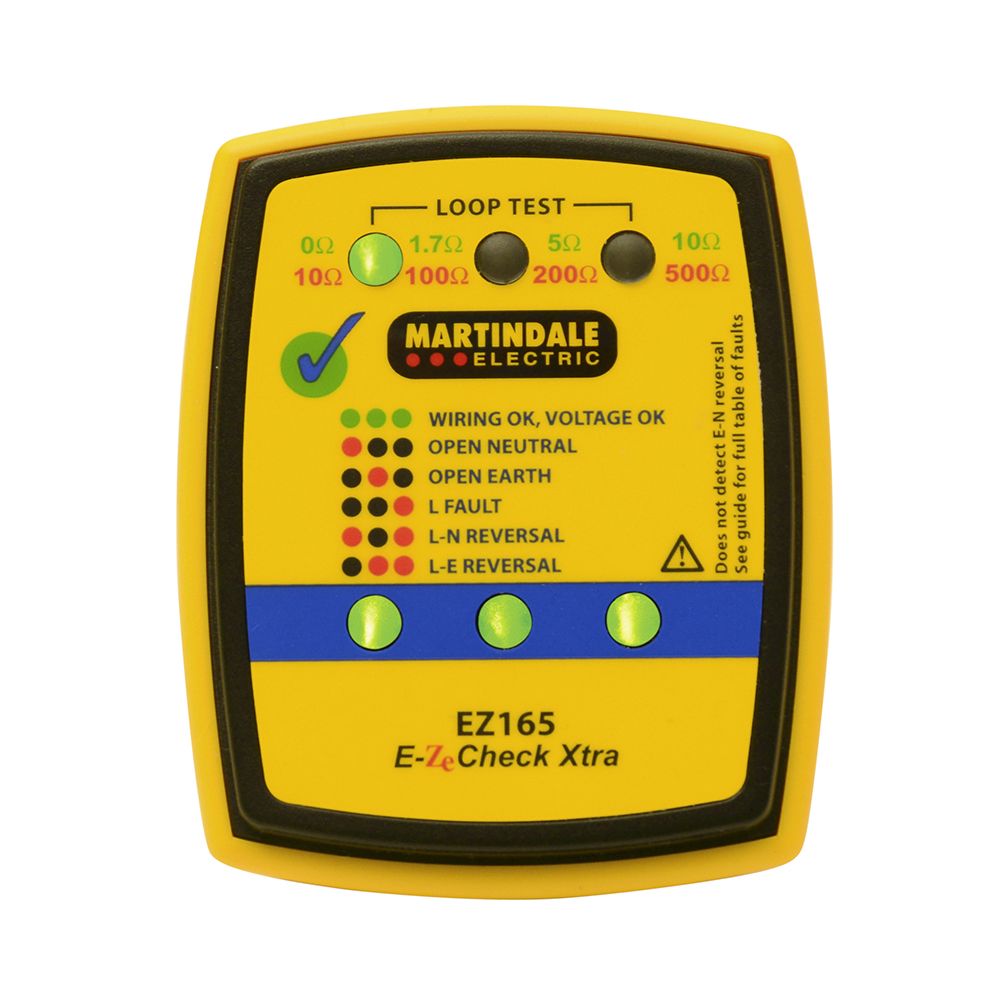

Martindale EZ165 - Socket & Non-Trip Earth Loop Tester

Martindale
  • Quick & easy mains socket polarity and earth testing
  • Red/Green LEDs show 28 fault conditions
  • Non-trip earth loop impedance test
  • Tough sculpted design for easy removal
£70.80 £59.00

Availability: Available for pre-order (due mid-late Dec 2019)

Product Code
MAREZ165

In addition to detecting 28 socket wiring fault conditions and checking mains voltage levels, the EZ165 verifies the earth wiring by carrying out a non-trip earth loop test and indicating its value in 6 discrete ranges from less than 1.7Ω to 500Ω.

A low earth resistance is essential for safety disconnection devices to work properly and prevent electrocution when faults occur. In contrast basic socket testers only indicate the presence of an earth and will do so even when resistance values are dangerously high.

Socket polarity and earth wiring faults are identified by a combination of red LEDs. The 3 LEDs correspond to neutral, earth and live connections to aid fast identification of the source of common faults. A look up chart on the tester provides further fault diagnosis.

The EZ165 is an Advanced Socket Tester as defined by the Health & Safety Executive as it indicates earth loop impedance. Advanced Socket Testers offer a simple solution to verifying socket earthing and are commonly used by engineers and technicians prior to servicing and installing mains powered electrical and gas appliances.

Key Test Features:

  • Indicate functional socket: Yes
  • Detect line/neutral reversal: Yes
  • Detect presence of earth: Yes
  • Mains voltage check: Yes
  • Earth loop impedance range: Yes

The EZ165 replaces the Martindale EZ150.

More Information
ManufacturerMartindale
Manufacturer Part NumberEZ165
GTIN5036162187841
ManualDownload
DatasheetDownload
Write Your Own Review
You're reviewing:Martindale EZ165 - Socket & Non-Trip Earth Loop Tester
Your Rating

  • Nominal operating voltage: 230V AC rms
  • Operating frequency: 50Hz
  • Power consumption: <2.5W
  • Power: from mains socket under test
  • Non-trip earth loop impedance ranges: 0 – 1.7 – 5 – 10 – 100 – 200 – 500Ω
  • Earth loop threshold accuracy: ± (10% + 0.3Ω) *
  • Voltage low indication: <195V ± 5%
  • Voltage high indication: >270V ± 5%
  • Earth neutral voltage high indication: >30V nominal
  • Open earth indication: >500Ω ± 10%
  • Dimensions: 65 x 80 x 59mm
  • Weight: 93 g approx
  • Temperature: (Operating & Storage) -10°C to 40°C, at max. 60% RH
  • Altitude: up to 2000m
  • Pollution degree: 2
  • Safety: Conforms to BS EN 61010-1, CAT II 300V, Class II, double insulation
  • EMC: Conforms to BS EN 61326-1

* Measurement accuracy can be affected by highly inductive or capacitive loads distributed on the supply.
