Fluke 1664FC, Ex-Demo Stock (EV Suitable)

Fluke
  • Fluke 1664FC ex-demo stock offer, latest version (with EV Type-B RCD test option).
  • Only a limited number available
  • Save yourself pounds £££
  • Full manufacturer warranty and CAL cert included*.
Regular Price £2,444.40 Special Price £1,042.80 £869.00

Availability: Limited Stock

Product Code
EXDFLU1664FC

*** Fluke 1664FC demo stock special offer, we’re selling off a limited number of Fluke 1664FC units from our demo stock.  These are brand new with only display/demo use so may show some small signs of having been out the box (all leads and accessories are complete). Full manufacturer warranty and CAL cert included*. Save yourself pounds!! ***



Protect appliances, share results wirelessly, perform seven tests with one touch. Latest firmware version with EV RCD test capability (when used in conjunction with an EV charge point adapter - sold separately).



Insulation pretest

Protect the installation. Avoid costly mistakes.

The Fluke 1664 FC Installation Tester is the only Installation with "Insulation PreTest," which warns you about potentially serious and costly mistakes. If the tester detects that an appliance is connected to the system under test, it will stop the insulation test and provide a visual warning. This helps eliminate accidental damage to peripheral equipment and keeps your customers happy.



Fluke Connect and FlukeCloud™ Storage

Share from anywhere.

Stay on the same page even when you and your team are in different places. Fluke Connect allows your 1664 FC Installation Tester to send test results to your smartphone so you can connect and collaborate with others. It's the fastest way to let your team see what you see, helping you get approvals without leaving the field.

Retrieve stored results from anywhere

FlukeCloud™ storage allows you to retrieve stored results whether you are in the office or in the field to make decisions in real time. Plus you can import the data into Fluke DMS to process and generate certificates. Plus you get world-class data protection. Safe. Secure. Fast. More accurate. All from the power of Fluke Connect.



Auto Test reduces test time up to 40%

Auto Test does all required installation tests in one sequence, ensuring compliance with local installation regulations. It reduces the number of manual connections, decreases the possibility of making errors and reduces test time up to 40% from previous Fluke models.



* requires in-service date to be filled in

More Information
ManufacturerFluke
Manufacturer Part Number4547031
GTIN0095969766890
ManualDownload
DatasheetDownload
Earth testYes
Type B RCD testYes
Write Your Own Review
You're reviewing:Fluke 1664FC, Ex-Demo Stock (EV Suitable)
Your Rating

AC voltage measurement

  • Range 500 V
  • Resolution 0.1 V
  • Accuracy 45 Hz – 66 Hz 0.8% + 3
  • Input impedance 360 kΩ
  • Overload protection 660 V rms
  • Continuity testing (RLO)
  • Range (autoranging) 20 Ω / 200 Ω / 2000 Ω
  • Resolution 0.01 Ω / 0.1 Ω / 1 Ω
  • Open Circuit Voltage >4 V

Insulation resistance measurement (RISO)

  • Test voltages 50-100-250-500-1000 V
  • Accuracy of tTest voltage (at rated test current) +10%, -0%
  • Test voltage 50 V, 100 V, 250 V, 500 V, 1000 V
  • Insulation resistance range 20 MΩ /50 MΩ, 20 MΩ / 100 MΩ, 20 MΩ / 200 MΩ, 20 MΩ / 200 MΩ / 500 MΩ, 20 MΩ / 200 MΩ / 1000 MΩ
  • Resolution 0.01 MΩ / 0.1 MΩ, 0.01 MΩ / 0.1 MΩ, 0.01 MΩ / 0.1 MΩ, 0.01 MΩ / 0.1 MΩ / 1 MΩ, 0.01 MΩ / 0.1 MΩ / 1 MΩ
  • Test current 1 mA @ 50 kΩ, 1 mA @ 100 kΩ, 1 mA @ 250 kΩ, 1 mA @ 500 kΩ, 1 mA @ 1 MΩ

Loop and line impedance (ZI)

  • Range 10 Ω / 0.001 Ω / High current mΩ mode
  • Resolution 0.01 Ω / 0.1 Ω / 1 Ω

Prospective earth fault current, PSC test

  • Range 1000 A / 10 kA (50 kA)
  • Resolution 1 A / 0.1 kA
  • Computation Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively.

RCD testing, RCD types tested

  • RCD Type AC¹, G²,S³
  • Model 1664 A, AC, B5, S

Tripping speed test (ΔT)

  • Current settings¹ 10-30-100-300-500-1000 mA – VAR, 10-30-100 mA
  • Multiplier x ½, x 1, x 5
  • Measurement range RCD Type G: 310 ms, 50 ms; RCD Type S: 510 ms, 160 ms

RCD/FI-Tripping Current Measurement/Ramp Test (IΔN)

  • Current range 30% to 110% of RCD rated current¹
  • Step size 10% of IΔN²
  • Dwell time Type G 300 ms/step
  • Type S 500 ms/step
  • Measurement accuracy ±5%
  • Specified trip current ranges (EN 61008-1) 50% to 100% for Type AC, 35% to 140% for Type A (>10 mA), 35% to 200% for Type A (≤10 mA), 50% to 200% for Type B, ²5% for Type B

Earth Resistance Test (RE)

  • Range 200 Ω / 2000 Ω
  • Resolution 0.1 Ω / 1Ω
  • Frequency 128 Hz
  • Output Voltage 25 V

Phase Sequence Indication

  • Icon Phase Sequence indicator.

General Specifications

  • Size (L x W x H) 10 x 25 x 12.5 cm
  • Weight (incl. batteries) 1.3 Kg
  • Battery size, quantity Type AA, 6 ea.
  • Sealing IP-40
  • Safety Complies with EN61010-1 Ed 2.0 (2001-02), UL61010, ANSI/ISA –s82.02.01 2000 and CAN/CSA c22.2 No. 1010 2nd edition
  • Overvoltage CAT III / 500V; CAT IV 300V
  • Performance EN61557-1 to EN61557-7 Second Edition and EN61557-10 Second Edition

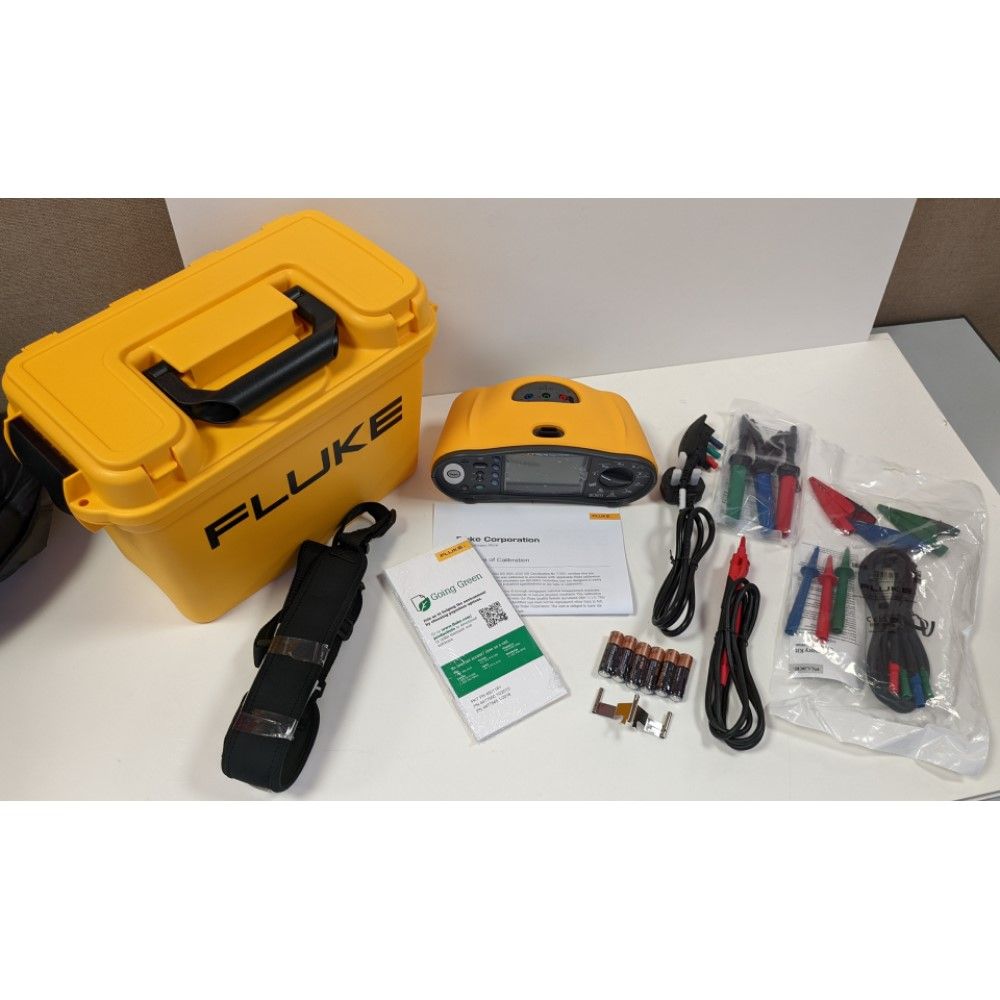

Fluke 1664FC Multifunction Installation Tester Includes:

  • 6x AA (IEC LR6) cell batteries
  • C1600 hard carrying case
  • Zero adapter
  • Heavy duty mains cord
  • STD standard test lead set
  • C1600 hard carrying case
  • Padded carrying and waist strap
  • Quick reference guide
  • TP165X remote control probe and lead
