Martindale TB118KITB, Gas Engineer Electrical Safety Kit

The Martindale TB118KITB is used widely by gas safety engineers to help achieve compliance to the Gas Safe Register Technical Bulletin 118. The kit includes tools for live voltage indication together with fused spur and MCB locking-off devices in a high-quality soft carry case. The kit also features the EZ664 socket tester to enable earth loop verification.

The EZ664 provides total socket testing flexibility by being able to connect either to a standard 13 amp plug or via flying leads, ideal when testing at fused spurs (also light fittings and terminals).

A key feature of the EZ664 is the ability to check the earth loop impedance of the wiring under test and indicate the measured value in six discrete ranges via three tricolour LEDs. The technology employed by the EZ664 allows the earth loop impedance to be measured with a 30mA or higher RCD in circuit without it tripping.

Key Features

• Complete electrical safety kits for gas installation and service engineers
• All-in-one solution for locking off and proving dead plus earth verification.
• Includes voltage indicator, proving unit, locking-off devices and earth checker
• Slimline and miniature push-pin MCB lock outs and fused spur locking-off device
• Ideal for compliance with Electricity at Work Regulations for safe working and TB118

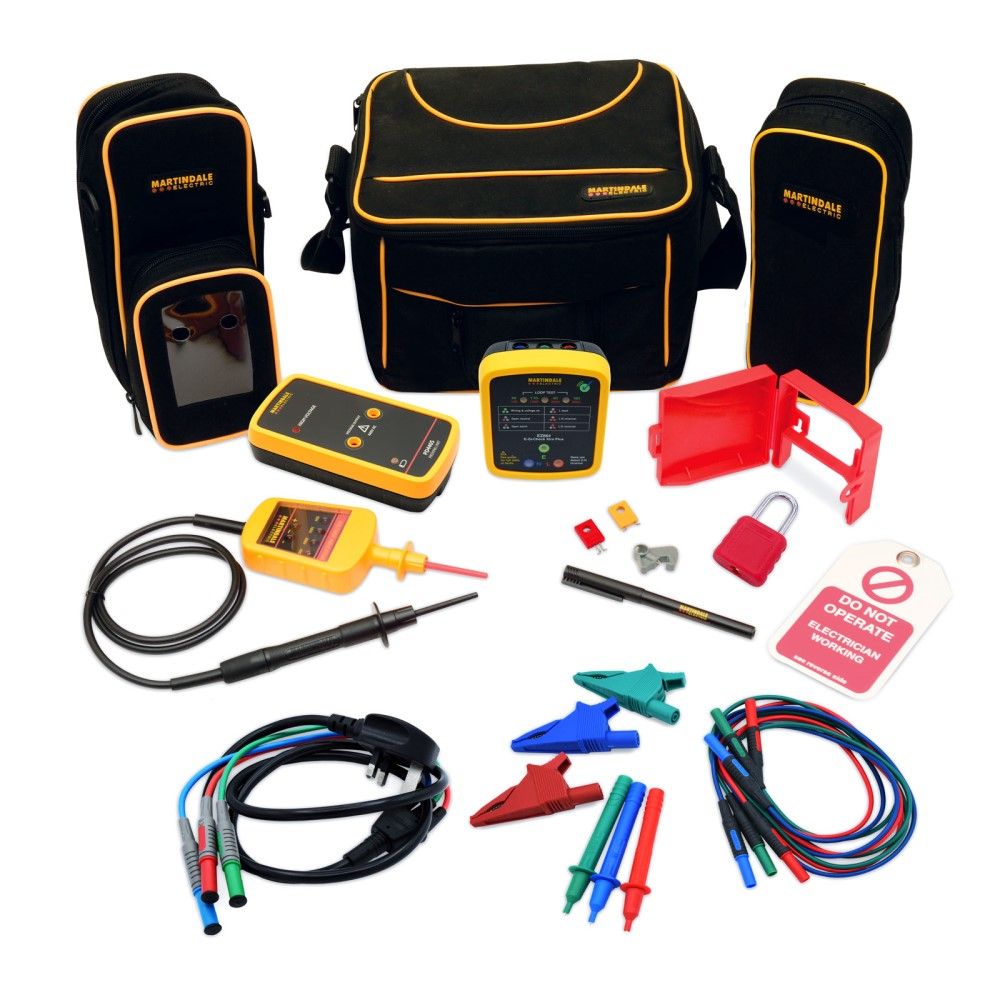

TB118KITB Contents

LOKKITGAS1

• Four essential locking off devices, LOK10, LOK11, LOK7 for MCBs and LOKFS1 for fused spurs
• Padlock, pen tag and carry case

VIPD138-S

• Voltage indicator and PD440S matching proving unit for safe and simple voltage indication
• Combination carry case

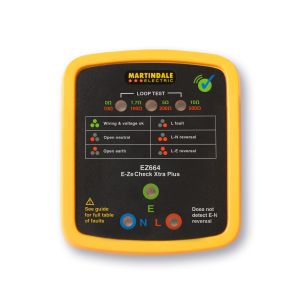

EZ664

• Earth loop resistance and polarity checker for socket and spur testing

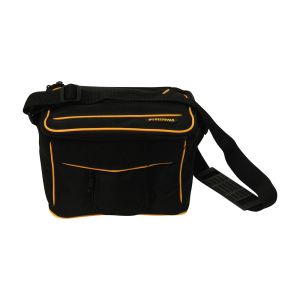

TC88

• Soft carry case with shoulder strap
