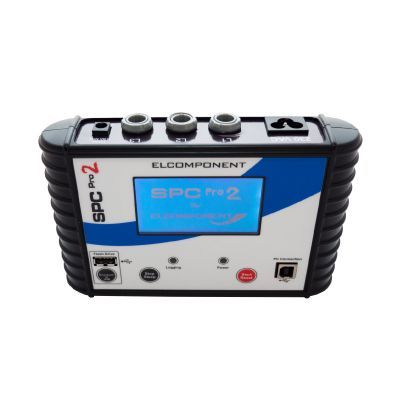

Elcomponent SPC Pro 2 - 3-Phase Data Logger

Elcomponent
Easy to use 3-phase power data logger designed for load logging.
£1,314.00 £1,095.00

Availability: In stock

Ships tomorrow if ordered in the next 1 day, 12 hours and 50 minutes!

Product Code
ELCSPCPRO2

The Elcomponent SPC Pro 2 is a very easy to use 3-phase power data logger which is perfect for measuring current consumption (load logging).

It features the well-proven 3-currents, 1-voltage hook-up, where the only voltage connection it needs is a standard 13A wall socket. For surveys where mains power is not available the internal battery provides up to two weeks 'no voltage' logging (you can increase this by up to 12 weeks with an external battery pack option – sold separately).

Current measurement is via the fully isolated flexible hoop CTs (which are included). An Operator can safely set-up and connect without needing any detailed knowledge of electrical systems.

The SPC Pro 2 has enough on-board memory to record surveys up to 12 weeks in duration as well as hi-speed (1 second) logging of critical plant for up to 48 hours. It is also really easy to get your data out from the logger thanks to the USB Flash Drive interface. Simply plug in a USB memory stick and hit ‘Download’. Data can then be analysed and processed with the PowerPackPro software that is included and available to download. There is also a second USB connection should you wish to directly hook the unit up to your PC.

The SPC Pro 2 is light, compact, portable, and tough thanks to the hi-impact moulded casing. The front panel is sealed with no protruding buttons. The feet are magnetic so you can attach the unit securely to any ferrous metal surface and everything can fit into the bespoke zip case to keep everything nice and tidy.

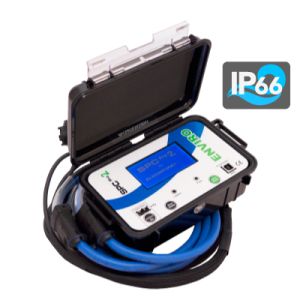

If you are operating within a harsh environment then you may wish to consider the SPC Pro 2 Enviro model (sold separately) which has all the same operating features as the SPC Pro 2 but is housed within an IP66 rated Peli Case.

More Information
ManufacturerElcomponent
Manufacturer Part NumberSPCPRO2
ManualDownload
DatasheetDownload
Write Your Own Review
You're reviewing:Elcomponent SPC Pro 2 - 3-Phase Data Logger
Your Rating

GENERAL

Input Channels:

  • 1 X Voltage via pluggable power cable
  • 3 X current via integral flex type CTs
  • Ranges:

  • 1 Voltage range: 230VAC +/- 15% 50-60Hz
  • 3 Current ranges: 2-20A, 20-200A, 200-2000A Fully auto-ranging
  • Dimensions:

  • Unit: L=183mm H=41mm W=120mm (Excluding CTs)
  • Flex CT diameter: 150mm
  • Flex CT length: 450 mm
  • Flex CT cable length: 1.8m
  • Protection level: IP30
  • Case: ABS
  • SERVICE CONDITIONS:

  • Operating Temperature: -20 to 50 Deg C
  • Humidity: Max 80% relative non-condensing
  • POWER SUPPLY:

  • 230VAC External
  • Li-ion internal battery
  • Battery life: Approx 3 weeks logging (fully charged)
  • Battery Charging: Integral charger from mains connection
  • MEASUREMENT:

  • Technique: Digital Sampling
  • Sample rate: 1.6kHz
  • Update rate: 1 second – stored to cache
  • DATA STORAGE/DOWNLOAD:

  • 1 X Voltage, 3 X Current, 3 X Phase Angle stored memory. Stored value is the average of all cached readings since previous store.
  • Memory capacity: 200,000 records
  • Survey length at 30 second storage: 10 weeks
  • USB Download to PC & USB Flash Drive (Memory Stick)
  • ACCURACY:

  • Voltage: 0.5% of measurement +/- 2.0V
  • Current:
  • 2-20A = 0.5% of measurement +/- 0.5A
  • 20-200A = 0.5% of measurement +/- 2.0A
  • 200-2000A = 0.5% of measurement +/- 5.0A
  • kWh (in software) = < 2% typical
  • STANDARDS: Electrical Safety: Unit: IEC1010 600V CAT III 300V CAT IV, Flex CTs: IEC1010 1000V Cat III

    SOFTWARE: PowerPackPro: Windows XP Pro, Vista, W7, W8, W10

    • SPC Pro 2 Unit c/w 3 x flex CTs
    • USB Download Cable
    • Mains Lead
    • PowerPackPro Software
    • Zip Holdall
    • Flash Drive
