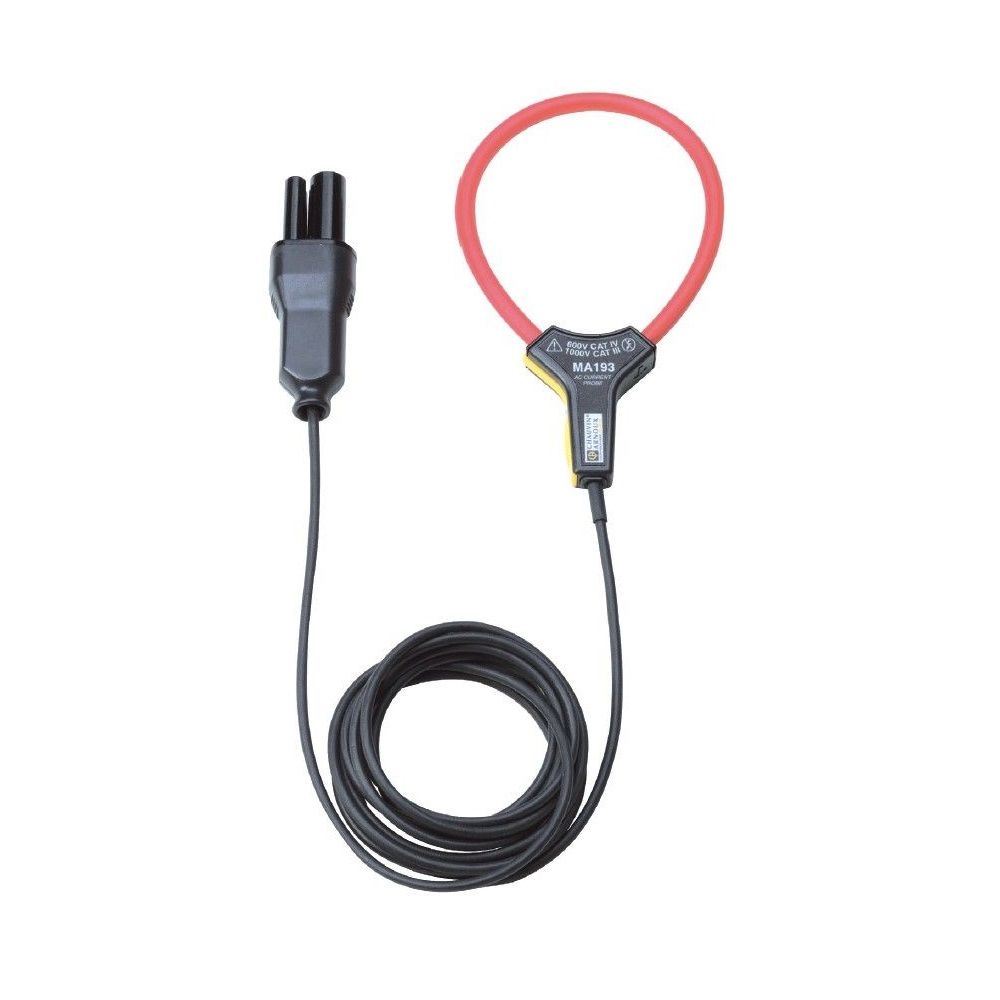

Chauvin Arnoux MA193-250 / MA193-200 - Miniflex AC Current Clamp (250mm)

MA193-250, AC, 1..10kA, 70mm Ø, single, black. (This product is also known as the Chauvin Arnoux MA193-200).

The Chauvin Arnoux MA193-250 Miniflex has a sensor length of 250mm and a clamping diameter of 70mm and can measure AC current from 100mA to 10kA. It is supplied with a 3m cable. The clamp weighs approximately 60g.

It meets electrical safety as per IEC 61010 and maximum rated voltage is 600V CAT IV or 1000V CAT III.

Designed for use with the Chauvin Arnoux Qualistar or PEL Series of power and energy analysers. Compatible with the PEL102, PEL103, PEL105, CA8220, CA8331, CA8333, CA8336.
