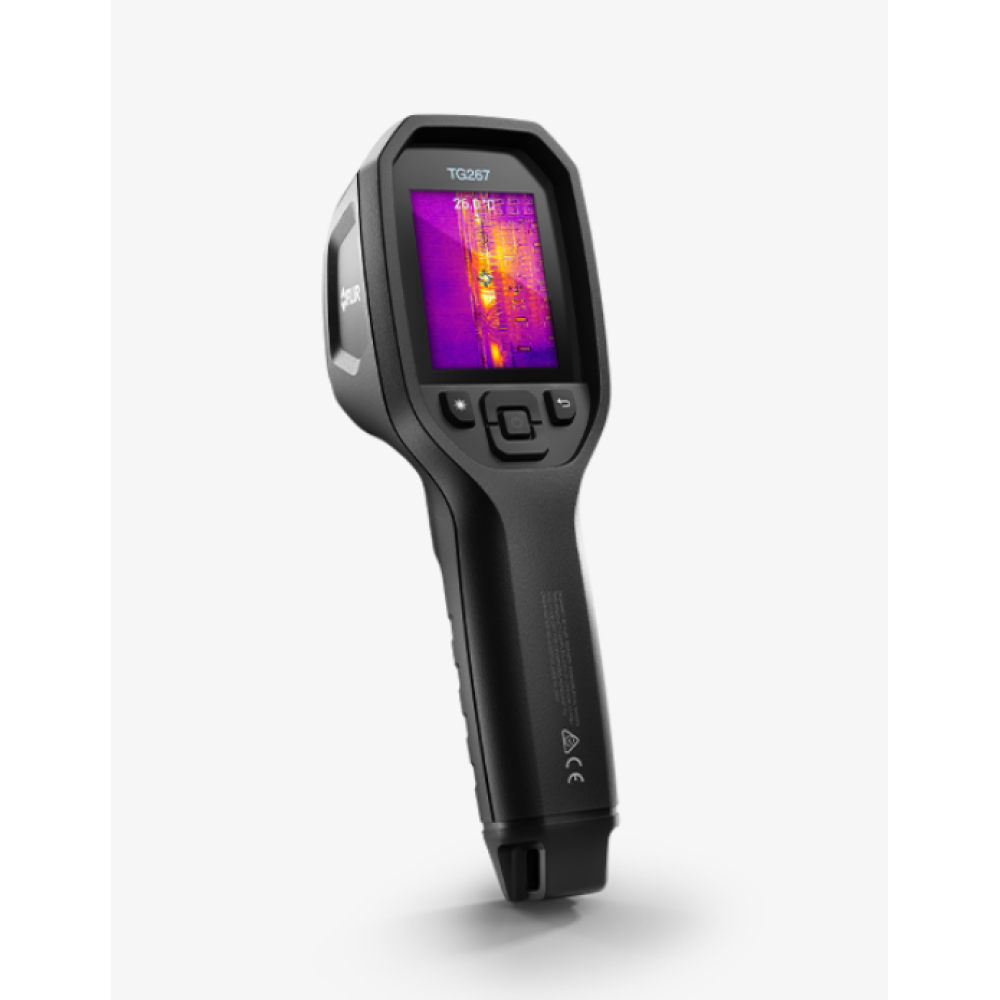

The FLIR TG267 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues.
Ideal for commercial electrical, facility maintenance, and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting.
Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs.
Record images to monitor maintenance history and reassure your customer that problems have been resolved.
Designed for Affordable Diagnostic Thermal Imaging
IDENTIFY PROBLEMS QUICKLY
Measure a wide range of temperatures from -25°C to 380°C (-13°F to 716°F) with a true 160 × 120 IR pixel imager (19,200 pixels)
PRODUCE CRISP THERMAL IMAGES
Display and record MSX®-enhanced thermal images or visual images with temperature readings.
WORK WITH CONFIDENCE IN RUGGED ENVIRONMENTS
Work safely and worry-free knowing that the IP54 enclosure can withstand a 2-meter drop and protect against dust and water
±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F)
Field of view (FOV)
57° × 44°
Image Modes
• MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading
Display
320 × 240 pixel, 2.4 in color LCD
Storage Media
eMMC 4 GB
IMAGING & OPTICAL
Built-in Digital Camera
Yes
Color Palettes
Iron, Rainbow, White hot, Black hot, Arctic, Lava
Detector Pitch
12 µm
Detector Type
Focal plane array (FPA), uncooled microbolometer
Digital image enhancement
Yes
Field of view (FOV)
57° × 44°
Focus
Focus free
Gallery
Yes
Image Frequency
8.7 Hz
Image Modes
• MSX® (Multi Spectral Dynamic Imaging) • Visual with temperature reading
IR Resolution
160 × 120 pixels
Laser
Class 1 laser indicates the temperature measurement area; button-activated
Minimum Focus Distance
0.3 m (0.98 ft)
Minimum Measurement Distance
0.26 m (0.85 ft)
Spectral Range
7.5 - 14 µm
Thermal Sensitivity/NETD
<70 mK
MEASUREMENT & ANALYSIS
Accuracy
±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F)
Camera size (L x W x H)
210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
Camera weight incl battery
0.394 kg (13.9 oz)
Center spot
Yes
Emissivity Correction
Yes: 4 preset levels with custom adjustment of 0.1–0.99
Object Temperature Range
-25°C to 380°C (-13°F to 716°F)
Set-up Commands
• Local adaptation of units, language, date, and time formats • Screen brightness (high, medium, low) • Gallery, deletion of images
