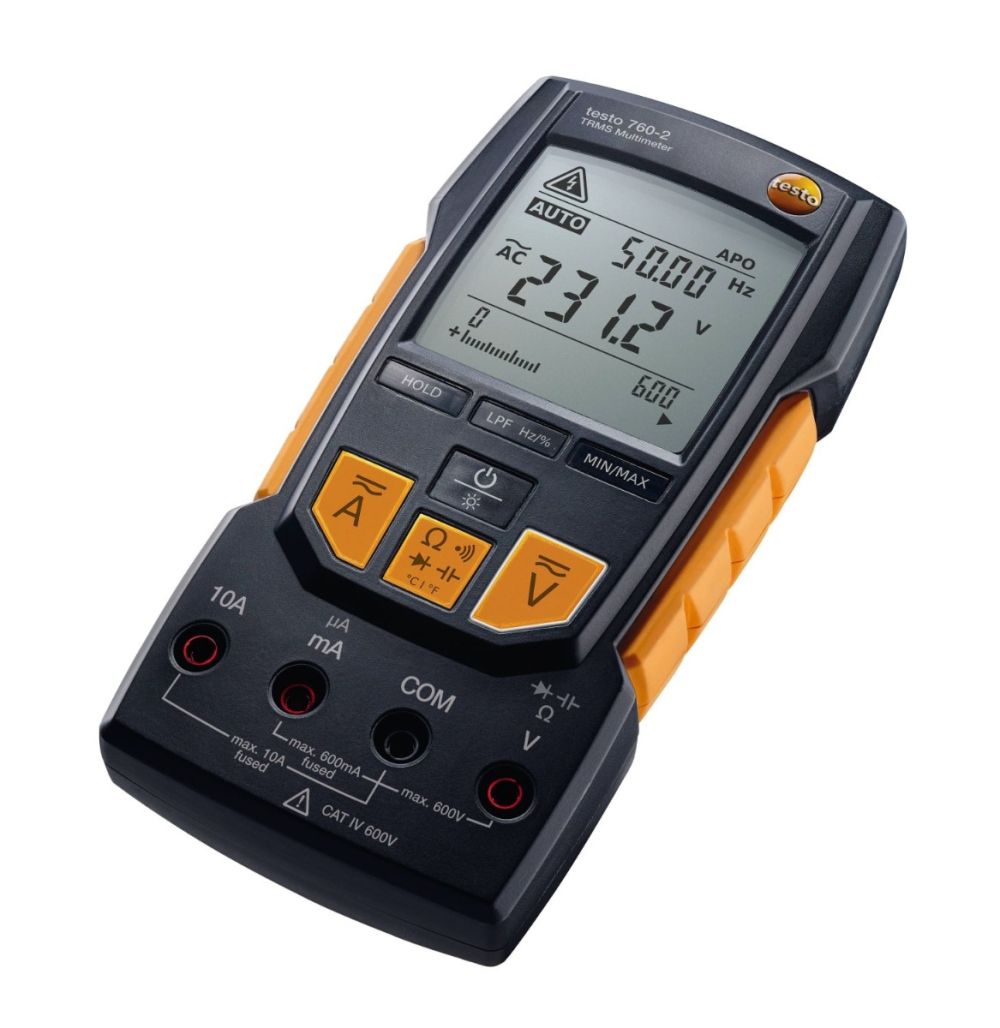

Testo 760-2 Multimeter with Temperature

Temperature - TC Type K (NiCr-Ni)

• Measuring range -20 to +500 °C
• Accuracy ±1 °C (0 to +100 °C)
• Resolution 0.2 °C

DC voltage

• Measuring Range 0.1 to 600 V
• Resolution 0.1 mV
• Accuracy ± (0.8 % of mv + 3 Digit)

AC voltage

• Measuring Range 0.1 mV to 600 V
• Resolution 0.1 mV
• Accuracy ± (1.0 % of mv + 3 Digit)

DC current

• Measuring Range 0.1 μA to 10 A
• Resolution 0.1 μA
• Accuracy ± (1.5 % of mv + 5 Digit)

AC current

• Measuring Range 0.1 μA to 10 A
• Resolution 0.1 μA
• Accuracy ± (1.5 % of mv + 5 Digit)

Resistance

• Measuring Range 0.1 Ohm to 60.00 MOhm
• Resolution 0.1
• Accuracy ± (1.5 % of mv + 3 Digit)

Capacitance

• Resolution 0.01 nF
• Measuring Range 2 nF to 30.00 mF
• Accuracy ± (1.5 % of mv + 5 Digit)

Frequency

• Resolution 0.001 Hz
• Measuring Range 0.001 to 600 Hz
• Accuracy ± (0.1 % of mv + 1 Digit)

General technical data

• Dimensions 167 x 85 x 45 mm
• Operating temperature -10 to +50 °C
• Protection class IP64
• Storage temperature -15 to +60 °C
• Weight 340 g
• Overvoltage Category CAT III 1000V; CAT IV 600V
• Authorizations CSA; CE

Instrument Measurement Functions

• Diode test yes
• Continuity testing yes
• Current probe measurement with adapter yes
• Display ligthing yes
• Hold yes
• MinMax yes
• Temperature measurement with adapter yes
• True RMS yes
• Low-pass filter yes
• Duty cycle measurement yes
• Display (counts) 6,000
• μA current measuring range yes
• Autom. measurement parameter detection yes

• Testo 760-2 TRMS Multimeter
• Batteries
• 1 set of measuring cables
