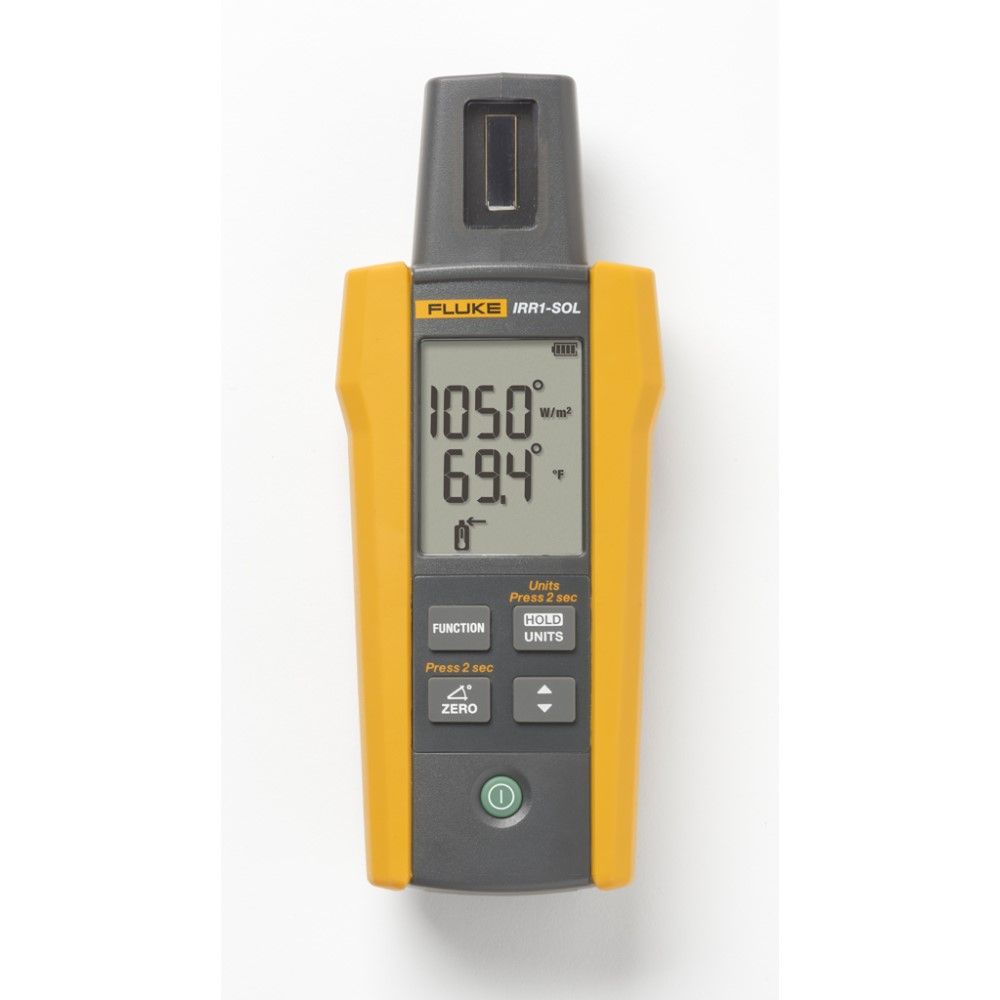

Fluke IRR1-SOL, Solar Irradiance Meter

The Fluke IRR1-SOL Irradiance Meter has been designed to simplify the installation, commissioning and troubleshooting of photovoltaic arrays. Allowing the measurement of irradiance, temperature, and inclination of solar arrays in a single handheld tool.

With a rugged, compact design, protective carrying case and an easy-to-read, high-contrast LCD screen to read measurements in direct sunlight, the IRR1-SOL can go where you go. The simple user interface, instantaneous solar irradiation measurements and built-in temperature sensor make it easy to help meet IEC 62446 requirements for testing, documenting, and maintaining photovoltaic systems. Additionally, the integrated compass and inclination sensor allow you to quickly measure and document roof and site orientation, pitch, and panel tilt while surveying, installing, or adjusting an installation.

Features

• Irradiance measurement: the high precision mono-crystalline solar sensor allows for instantaneous irradiation measurements up to 1400 W/m2.

• Temperature measurement: using either the built-in temperature sensor or the external suction mount temperature probe to measure ambient and panel temperature.

• Integrated compass: measure and document roof or site orientation.

• Inclination sensor: measure roof and PV panel tilt when surveying, installing, or adjusting the installation.

• Carry it everywhere: equipped with a practical shoulder strapped case, to allow safe scaling of climbing equipment, keeping your hands free.
