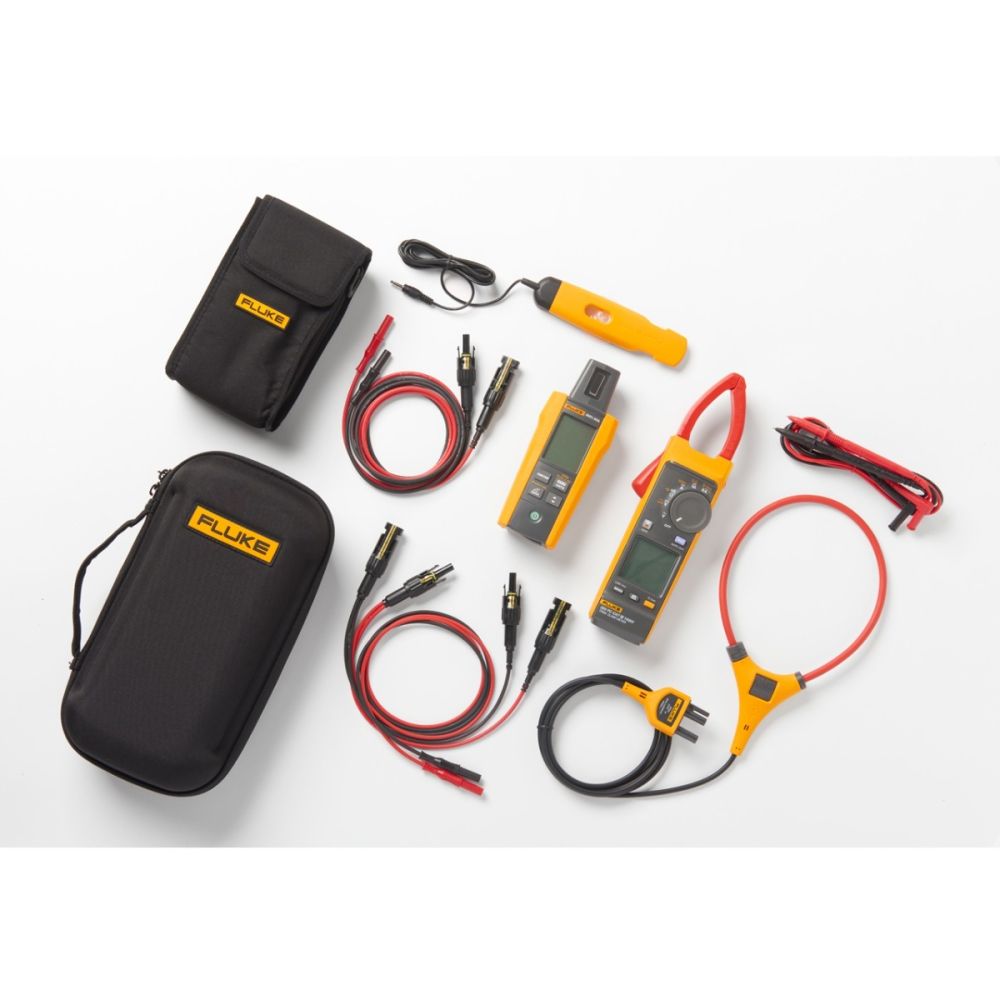

The 393 FC CAT III 1500 V True-rms Clamp Meter with iFlex is an industrial clamp meter designed for solar photovoltaic (PV) installation technicians and maintenance professionals who work in high voltage dc environments. Safely connect the MC4 test leads to the clamp meter to validate voltage and current from individual panels or a series of panels in a PV array. The inline capabilities of the MC4 PVLEAD3 leads allow the system to remain online and generating power while testing without needing to pierce the line. Use the IRR1-SOL to obtain the amount of solar irradiance necessary to calculate the IV curve of the power output. Validate that the panel or string of panels are outputting the correct voltage.
Key functions of the solar clamp meter, irradiance meter and MC4 test leads:
View voltage and current simultaneously with the meter's dual display
IP54 rated meter, ideal for work outdoors including PV panel testing
DC power measurement, showing readings in kVA
Logging and reporting of test results via Fluke Connect software
Make instantaneous measurements to determine the watts per square meter solar irradiation, required by IEC 62446-1 standard
Test leads, CAT III 1500 V rated, right angle plugs, with safety caps
iFlex 18 inch flexible current probe
TPAK magnetic hanging strap
Premium carrying case
3-year warranty
FLK-IRR1-SOL Solar Irradiance Meter
FLK80PR-IRR External Temperature Probe with Suction Cup
C250 Carrying Case with Shoulder Strap
(4) AA Alkaline Batteries (installed)
User Manual
Pomona PVLEAD1 MC4 to 4 mm Test Lead Set
Pomona PVLEAD3 MC4 Solar Clamp Test Lead Set
