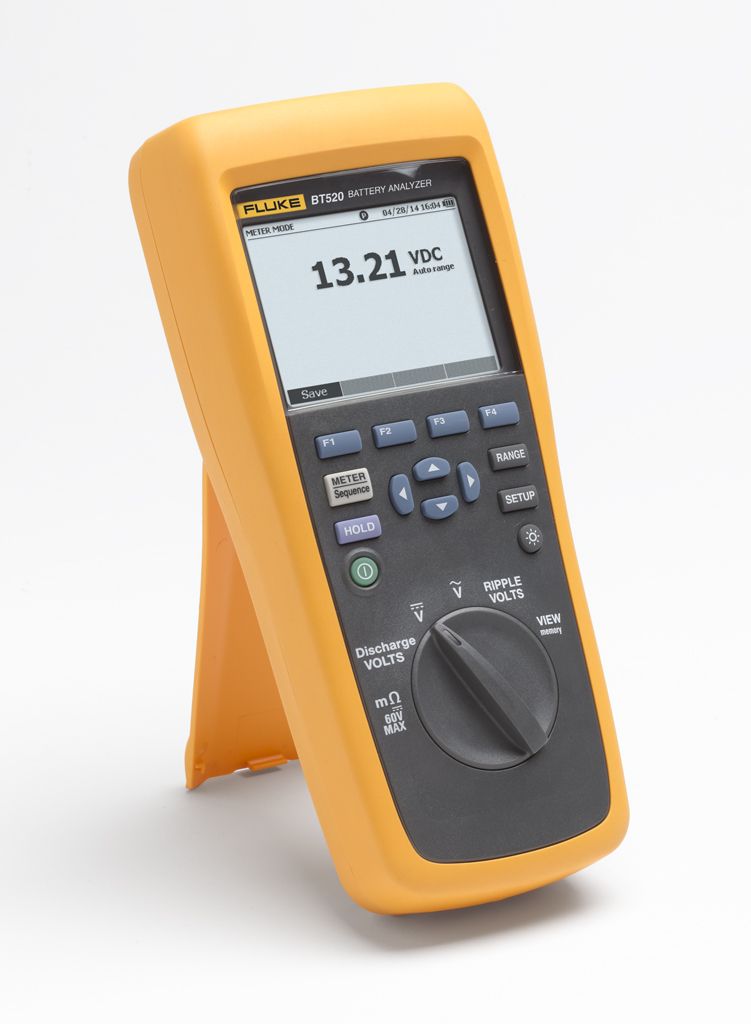

Fluke BT520 - Battery Analyser

The Fluke BT520 is a battery analyser that is specifically designed for measuring batteries that are situated within cabinets and hard to access places.

It includes the Fluke BTL20 interactive Test Probe Set which has long and short probe extenders as well as a built-in LCD display and speaker on the lead set itself. This gives very clear visual and audio feedback and means you don’t need to manoeuvre yourself into strange contortions trying to get probes onto the battery terminals but your head situated so you can see the instrument display – you can now take your readings from either the display on the leads, or the display on the unit.

The BT520 also has the following features and capabilities:

• Battery voltage

• Discharge volts

• Ripple voltage test

• Meter and sequence modes

• Threshold and Warnings – user configurable

• Intercell Strap Resistance Test and Data Management

• Auto Hold

• Auto Save

• Battery Management Software – data transfer to PC to generate profiles and reports

• Comprehensive Logging

• Optimised User Interface

• Long Battery Life (more than 8hrs continuous use from the 7.4V 300mAh Li-ion battery)

• USB port – for fast data transfer

• High safety rating – CAT III 600V, 1000V dc max rated
