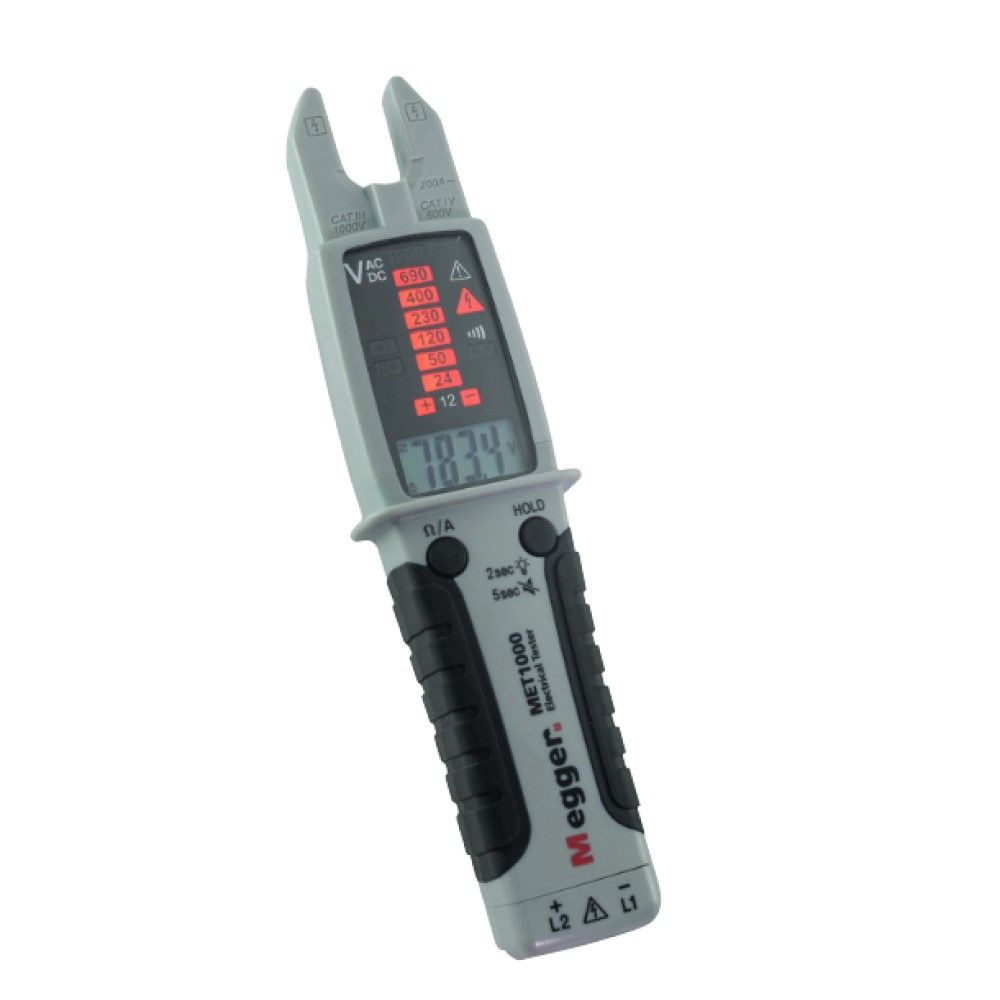

Megger MET1000, All-In-One TRMS Electrical Tester

£324.00 £270.00

Availability: In stock

Ships tomorrow if ordered in the next 14 hours and 47 minutes!

Product Code

MEGMET1000

Details

The Megger MET1000 is a multifunctional voltage and current tester providing electricians and electrical engineers a versatile and robust hand - held all-in-one meter, with detachable test leads. Featuring both LED and LCD displays, it gives the user a 200 A AC and 1000 V AC/DC tester designed for everyday use. CATIV 600 V/CATIII 1000 V rated, with an IP65 housing for added protection, it reduces the number of testers required in the professional’s tool bag.

Key Features:

LED and LCD display with self-test
Detachable test probes
AC/DC voltage to 1000 V
200 A AC measurement
True RMS on ACV/ACA
Measures voltage without batteries

More Info

More Information
Manufacturer	Megger
Manufacturer Part Number	1013-099
GTIN	5036175241196
Datasheet	Download

Specifications

Specifications:

Sampling Rate	3times/sec
Input peak Current	Is < 3.5mA@1000V
ACA	Range	200.0A
	Resolution	0.1A
	Basic Accuracy	±(3.0%+5d) at 45Hz~65Hz
ACV	Range	(w/ batteries) 6.0V~999.9V
		(w/o batteries) 45V~999.9V
	Resolution	0.1V
	Basic Accuracy	±(1.5%+5d) at 45Hz~400Hz
DCV	Range	(w/ batteries) 7.0V~999.9V
		(w/o batteries) 35V~999.9V
	Resolution	0.1V
	Basic Accuracy	±(1.0%+2d)
OHM	Range	50KΩ
	Basic Accuracy	±(1.5%+5d)
	Resolution	1Ω
Continuity Beep	<1.8KΩ, 2.7KHz tone buzzer
Rotary Field Indication	Sensitivity 90V to 1000V (Phase to earth)
Frequency Range	45Hz to 65Hz
Single-Pole Phase Check	Sensitivity 90V to 1000V (45Hz – 65Hz Phase to earth)
Dimensions	57mm(W) x 220mm (L) x 35mm(H)
Weight	(with battery) 200g
Bar Response time	< 0.5s
Reading response time	< 0.5s
Overload Indication	“OL” or “-OL”
Auto Power Of	30 seconds
Indicator	2.7kHz Tone Buzzer and ELV LED
Battery Life	(No backlit, Alkaline battery) 1000 operations
Operating Temperature	-15°C~55°C, ≤80% RH
Storage Temperature	-20°C ~ 60°C
Temperature Coefficient	0.2 x (Spec. Acc)/°C, <18°C or>28°C
Jaw Size	39mm
Maximum Conductor Size	16mm
Power Requirement	2 x AAA Size Battery (R03, LR03, 24D, 24A)
International Standard	IEC/EN 61243-3:2014
Safety Standard	IEC 61010-1, 61010-2-032, EN 61326-1 CAT IV 600V, CAT III 1000V

Contents

Megger MET1000 All-in-One Electrical Tester (1013-099)
Red and black probe lead set (1013-359)
Carry holster with belt loop (1013-360)
