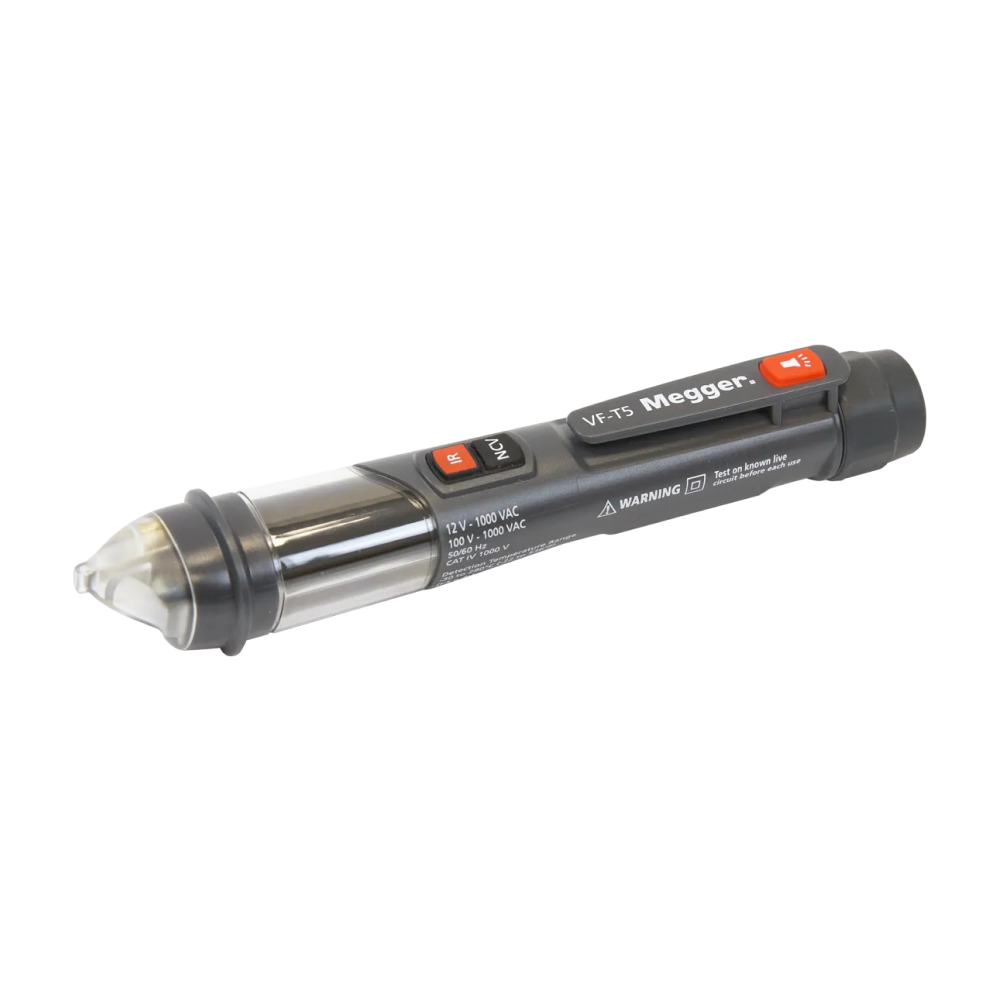

The Megger VF-T5 is a non-contact voltage detector with built-in infrared thermometer. Featuring 12–1000V AC detection, CAT IV 1000V safety rating, and laser-guided temperature measurement, it’s ideal for fast, safe electrical testing.
The Megger VF-T5 is 2-in-1 non-contact Voltage Detector with built in Infrared (IR) laser thermometer for temperature measurement.
It has been designed to check for the presence of AC voltage by lighting up the red LED situated in the tip, along with an audible sounder, plus vibration alert. The detector has both low voltage (12 V to 1000 V) and medium voltage (100 V to 1000 V) ranges. The Megger VF-T5 also has the added advantage of a bright white LED torch for use in poor light.
The 4:1 laser distance to spot ratio infrared thermometer has a temperature range from -30 °C to +280 °C with the reading shown on the LCD display.
The Megger VF-T5 is suitable for identifying live conductors, finding a break in a conductor, or verifying a blown fuse while in circuit, as well as for detecting AC voltages at socket outlets, switches, circuit breakers, fuses, cables, and luminaires.
Non-Contact Voltage Detector with Infrared Thermometer
Voltage Detection
AC Voltage Range
12V – 1000V AC (Low) / 100V – 1000V AC (High)
Frequency Range
50/60 Hz
Detection Alerts
LED Visual Indicator, Audible Buzzer, Vibration Alert
Infrared Thermometer
Temperature Range
-30°C to +280°C
Resolution
0.1°C / 0.1°F
Accuracy
±3°C (-30°C to +20°C), ±2°C (+21°C to +280°C)
Distance-to-Spot Ratio
4:1
Laser
Class 1, 650nm (Pointer only)
Display & Features
Display
Digital LCD
Built-in Torch
White LED Work Light
Auto Power Off
Yes (approx. 5 minutes)
Safety & Protection
Safety Rating
CAT IV 1000V
Ingress Protection
IP54
Compliance
CE Marked
Power & Physical
Battery Type
2 x AAA 1.5V Alkaline
Operating Temperature
0°C to +50°C
Storage Temperature
-10°C to +60°C
Maximum Altitude
2000m
Weight
Approx. 200g
Why choose Instrotech for your electrical test equipment?
With over 40 years’ experience supporting UK electricians, technicians and engineers, Instrotech is your trusted partner for quality tools and expert service. When you purchase from us, you benefit from:
Free UK shipping on all orders
Access to our knowledgeable technical support team

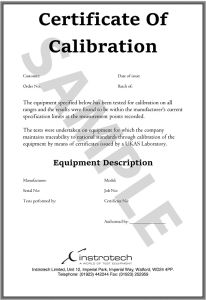

Available calibration services to maintain safety compliance
