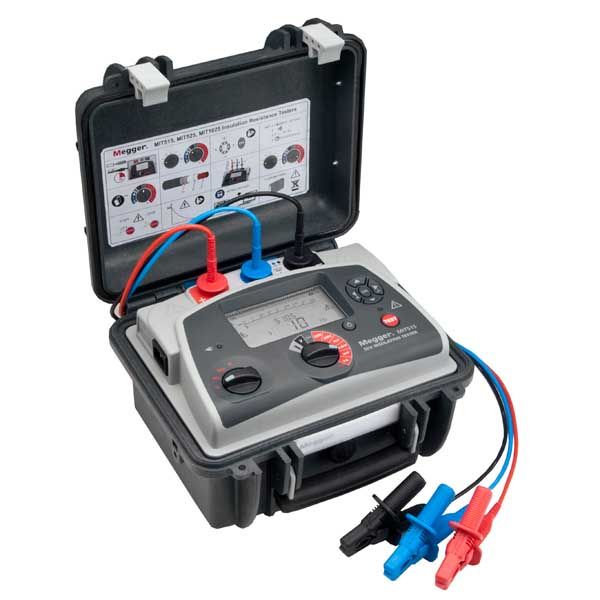

Megger MIT515, HV Insulation Tester (5kV)

The Megger MIT515 is a general purpose model 5kV insulation resistance tester, with a maximum resistance reading of 10TΩ. A high voltage insulation test is used to indicate the effectiveness of insulation in electrical products, such as transformers, motors, cables, circuit breakers and more.

This model has many features that set it apart from other testers, such as the ability to take measurements even when the battery is dead, when connected to mains power. As with all Megger products, this one is built into a rugged IP65 case, ensuring it will function even in harsh conditions. In addition it comes with a CAT IV 600V safety rating and is double insulated.

The MIT515 has five preset voltage ranges, with the ability for the user to lock the voltage range. Diagnostic tests are pre-configured for Dielectric Absorption Ratio (DAR) and Polarisation Index (PI).

Key features of the MIT515 include:

• 10TΩ insulation resistance range
• Timed IR plus PI and DAR diagnostic tests
• Operate with dead battery when on mains power
• Rapid charge Li-Ion battery when on mains power
• Dedicated voltmeter function (30V to 660V)
• CAT IV 600V safety rating
• Large LCD display with automatic backlight
• Noise Filter - rejects up to 3mA noise
• High altitude operation up to 3000m

Note: The free manufacturers calibration certificate is issued on the date of manufacture. If you require a personalised certificate issued on the date of purchase, please select the relevant calibration option above.
