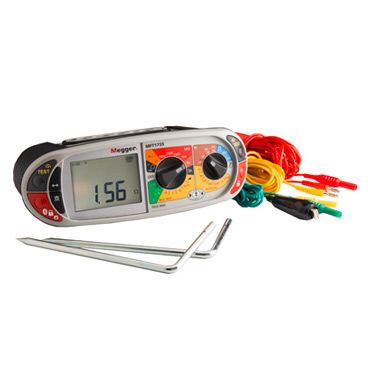

Megger MFT1735 Multifunction Tester

Megger
  • Suitable for domestic, commercial and industrial testing
  • Includes Earth Test Spike kit
  • FREE manufacturer's calibration certificate included*
  • FREE bundle included (many options to choose from)
  • Ready for 18th Edition
  • Special Price £1,038.00 £865.00 Regular Price £1,782.00

    Availability: Limited stock

    Ships today if ordered in the next 8 hours and 53 minutes!

    Product Code
    MEGMFT1735

    Web-only limited-time deal - Choose one of the following FREE bundles when you order:

    • Option 1 - Martindale NC2 Voltage Indicator + LOKKIT2PLUS Lock-Out Kit + TMK ST16 Socket Tester
    • Option 2 - Martindale VT25 Two-Pole Voltage Tester + LOKKIT2PLUS Lock-Out Kit
    • Option 3 - CalCard Calibration Resistance Card + Martindale LOKKIT2PLUS Lock-Out Kit
    • Option 4 - Martindale VT12 Voltage & Continuity Tester + PD240 Proving Unit
    • Option 5 - Martindale TL78 Test Wander Lead (50m)


    The Megger MFT1735 is an electrical installation multifunction tester with additional earth resistance tests built-in. This particular tester is ideal for anyone who does a lot of earth ground or lightning protection testing, but also carries out general installation tests.

    The key difference between the MFT1735 and MFT1730 is the addition of stakeless earth measurement. Using the two optional clamps, you can take earth resistance readings without breaking the circuit. With this extra test feature, you do lose some of the test features found on some of the other Megger testers, specifically the automatic R1 + R2 calculation and Zmax value.

    The MFT1735 has the rugged build quality that you'd expect from Megger, along with a simple control panel for test selection. Test buttons are located on either side, making it easy to use for left and right handed users. This is a downloading model, with results stored in the tester for download to the Megger Lite Onsite software, or other Powersuite packages. Based on the design of the MFT1730, the 1735 features Bluetooth communication, so test results can be transmitted in realtime to a laptop enabled PC or smartphone.

    There is a large, clear LCD display with backlight and it also features the Megger patented analog arc. Key values are displayed when carrying out a test, such as the output voltage for insulation testing as well as the resistance value. An audible and visual live circuit warning notify you if voltage exceeds a safe level for test and prevents the test from running.

    As a top end model, the MFT1735 will test B type RCDs and features true RMS voltage readings. It features IP54 protection and a CAT IV safety rating. The tough design ensures the tester can withstand accidental misuse and voltage transients.

    The tester is supplied with a 3 way test lead set, mains test lead, earth spike kit with 3 leads & two spikes, remote test probe, rechargeable batteries, mains charger, hard carry case & calibration certificate. everythign works

    More Information
    ManufacturerMegger
    Manufacturer Part Number1003-319
    GTIN5036175227398
    ManualMFT1735
    DatasheetMFT1735
    DownloadingYes
    Earth testYes
    Write Your Own Review
    You're reviewing:Megger MFT1735 Multifunction Tester
    Your Rating

    General Specification

    Accuracy

    Insulation test:

    • 1000 Volts 10 kΩ - 999 MΩ ±3% ±2 digits
    • 500 Volts. 10 kΩ - 500 MΩ ±3% ±2 digits >500 MΩ ±10% ±4 digits
    • 250 Volts. 10 kΩ - 250 MΩ ±3% ±2 digits >250 MΩ ±10% ±4 digits
    • 100 Volts. 10 kΩ - 100 MΩ ±3% ±2 digits >100 MΩ ±10% ±4 digits
    • EN61557 range: 10 kΩ - 999 MΩ (1000 V range)
    • Voltage display: ±3% ±3 digits ±0.5% of rated voltage
    • Max service error: ±15% ±2 digits.
    • Short circuit current: 1.5 mA nominal test current
    • Test current on load: ≥1 mA at min. pass values of insulation
    • Output voltage tolerance: -0% +20% at rated load or less
    Continuity / Resistance:
    • Intrinsic accuracy: ±2% ±2 digits (0.01 Ω to 99.9 Ω), ±5% ±2 digits (100 Ω to 99.9 kΩ)
    • EN61557 range: 0.1 Ω to 99.9 kΩ
    • Open circuit voltage 5 V ±1 V
    • Test current at 200 mA (0 Ω to 2 Ω): >200 mA @ ≤2 Ω
    • Test current at 15 mA (0 Ω to 2 Ω): >15mA @ ≤2 Ω
    • Max Service error: ±12% ±2 digits.
    Loop test 2Hi (L-PE, L-N, L-L):
    • Intrinsic accuracy: ±5% ±3 digits
    • Display range: 0.01 Ω to 1000 Ω
    • Supply: 48 V to 480 V* (45 Hz to 65 Hz)
    • Test current high: 4.0 A (at 230 V)
    • PSCC range: 20 kA
    • EN61557 range: 0.30 Ω to 1000 Ω
    • Max service error: ±10% ±2 digits
    Loop test 3Lo, 2Lo (L-E):
    • Intrinsic accuracy: 0.01 Ω to 39.9 Ω ±5% ±5 digits
    • 40.0 Ω to 999 Ω ±10% ±5 digits
    • Display range: 0.01 Ω to 1000 Ω
    • Supply: 48 V to 280 V (45 Hz to 65 Hz)
    • Test current: Pulsed
    • PFC range: 20 kA
    • EN61557 range: 1.0 Ω to 1000 Ω
    • Max service error: ±10% ±2 digits
    RCD test:
    • Intrinsic current accuracy:
    • No trip test: (1/2xI) –10% to 0%
    • Trip test: (1xI, 2xI and 5xI) +0% to +10%.
    • Ramp test current: ±5% ±1 digit
    • Trip time: ±1% ±1 ms
    • Programmable step increments: 10 mA to 50 mA - 1 mA steps, 50 mA to 500 mA - 5 mA steps, 500 mA to 1000 mA - 10 mA steps.
    • Supply: 48 V - 280 V 45 Hz to 65 Hz
    • Max service error: ±10% ±2 digits
    Voltage:
    • Intrinsic accuracy: ±2% ±1 V
    • EN61557-1 Range: 10 V to 600 V
    • Phase rotation indication.
    • Max service error: ±5% ±2 digits
    Frequency:
    • Intrinsic accuracy: ±0.5% ±2 digits
    • Resolution: 0.1 Hz
    • EN61557 Range: 15 Hz to 400 Hz
    • Max service error: ±5% ±3 digits
    Earth Test Ranges:
    • Intrinsic accuracy: ±2.0% ±3 digits
    • ART method ±5.0% ±3 digits
    • Stakeless method ±7.0% ±3 digits
    • Resolution: 0.01 Ω
    • EN61557 range: 1.0 Ω to 1.99 kΩ
    • Current: 0.45 mA or 4.5 mA.
    • Noise rejection: 20 V pk/pk (7 V rms)
    • Max probe resistances: Rp, Rc = 100 kΩ @ 50 V
    • Max service error: ±20% ±3 digits
    Current (via Clamp meter):
    • Intrinsic accuracy: ±5.0% ±3 digits
    • Resolution: 0.1 mA
    • EN61557 Range: 0.5 mA – 199 A
    • Max service error: ±10% ±2 digits
    mV Sensor input
    • Including temperature (third party module)
    • ±1.0% ±2 digits
    • Range 0.0 mV to ±199.9 mV dc
    • Resolution 0.1 mV
    Internal memory
    • Capacity 1000 results
    • Bluetooth® communication
    Power consumption:
    • Nominal minimum: 60 mA (Voltage range with no input voltage)
    • Nominal maximum: 350 mA (Active Insulation test set to 1000 V / 1 MΩ)
    • Range: -20 °C to +55 °C
  • Temperature (via 3rd Party Module):
    • Intrinsic accuracy: ±1.0% ±2 digits
    • Resolution: 1 °C
    • Range: -20 °C to +100 °C
    Environmental Specification

    Temperature

    • Operational range: -10 °C to +55 °C
    • Storage range: -25 °C to +70 °C
    Humidity
    • Operating humidity: 90% R.H. at +40 °C max.
    Altitude
    • 2000 m to full safety specification.

    Weight: 1000 g ±10% including batteries but excluding test leads, accessories and carry case.

    Dimensions: 150 mm high x 85 mm wide x 235 mm deep (6 in. x 3.5 in. x 9.5 in.)

    IP rating: IP54

    Power Supply

    • Battery: Primary 6 x 1,5 V cells IEC LR6 type (AA alkaline,).
    • Battery: Rechargeable: 6 x 1.2 VNiMH cells EC HR6.
    • Display shows rechargeable [NiMH] when the battery type is changed in setup option (Section 10).

    Safety / EMC
    EMC In accordance with IEC61326 edition 2.
    Locations: Class B locations.
    Safety in accordance with BS EN 61010 -1 2010 + 61010 -30:2010
    Installation Category: 600 V CAT III / 300 V CAT IV. (Max Phase to Phase 550 V)
    In addition switch probe and test leads are designed to meet IEC 1010-031:2008, Double insulated to Installation Category III, 300 V phase to earth, 500 V phase to phase.

    • Megger MFT1735
    • 3 Wire Unfused Test Leads with Crocodile Clips
    • Mains Test Lead
    • Earth Spike Kit with 2 Spikes & 3 Different Length Leads
    • 6 x AA Rechargeable Batteries
    • Mains Battery Charger
    • Instruction Manual on CD ROM
    • Carry Strap
    • Hard Carry Case
    • Calibration Certificate
    • 3 Year Warranty
