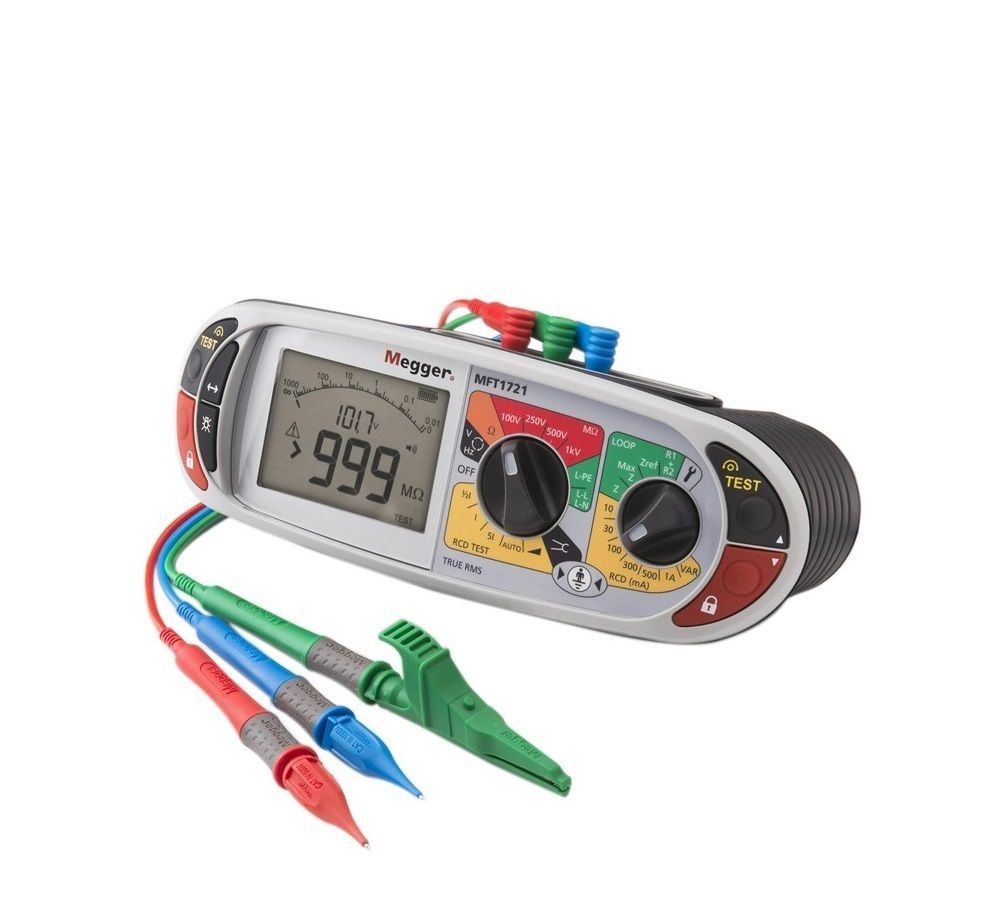

Everything you need for 18th Edition testing in one tester, the Megger MFT1721 is an upgrade to the widely popular Megger MFT1720, adding an additional 100V insulation test range, true RMS voltage measurement, mV sensor input and Type B RCD testing. Designed with the user in mind, test selection is made quickly by using the dials on the front, no need for multiple button pushing or tricky menu navigation.
The Megger brand is associated with robust and rugged design and the MFT1721 is no exception. It is IP54 rated and can be connected across phases without any damage occurring. Drop it, bounce it or use it in the rain, the MFT1721 will still keep going. Your safety is of paramount importance in the design of this tester, therefore it won't go bang if the wrong test range is selected, or if it is connected to a live circuit by accident - even if the test button has been locked on!
This multifunction unit has a comprehensive range of electrical installation tests, ideal for the domestic and commercial electrician alike.
Non-Trip & High Current Earth Loop Testing
Featuring Megger's unique two wire loop testing method, you can easily carry out a non-trip L-PE test (3 wire option also available), or high current L-L / L-N test. It features a resolution of 0.01Ω and performs the PSC / PFC test at the same time, simultaneously displaying the results.
Continuity & Resistance Testing
The MFT1721 has the option to perform a standard 200mA or low current 15mA continuity test with auto-start and a resistance range from 0.01Ω to 99.9kΩ. The buzzer is not only fast, but also has an adjustable threshold. In addition, once test leads have been nulled, the results will remain in the tester, even when it\'s been turned off.
Insulation Test
4 standard ranges are available, 100V, 250V, 500V & 1000V, with the test voltage being displayed alongside the resistance measurement. The buzzer threshold is adjustable and protection is built-in for live circuits up to 600V (even if the test button is locked on).
RCD Test
The auto-RCD test feature is a must for most electricians, so the MFT1721 includes this along with the standard trip time tests. A wide range of RCD types can be tested, including AC, A, B, Selective, Programmable and 3 Phase. Finally there is a ramp test option, ideal for pinpointing the exact current that the RCD will trip.
Other Electrical Tests
To complete the arsenal of tests, the MFT1721 includes voltage measurement from 10V to 600V AC / DC, frequency measurement from 15 - 400Hz and Phase Rotation.
Hire Information & Pricing
The Megger MFT1721 tester for 18th Edition testing is available to hire at the following prices:
7 Day Hire: £70.00
Hire deposits are only applicable to non-credit account holders and are refunded in full upon return inspection of the equipment.
Delivery & Return Collection
We know people need rental equipment quickly so we use a pre-10.30am courier service (only £15.00 ex-VAT per way per consignment) for mainland UK addresses, alternatively you are welcome to collect and return via your own means.
Delivery to some outlying areas, Highlands, Channel Islands, Northern Ireland and offshore isles will incur additional charges, please contact us for details.
