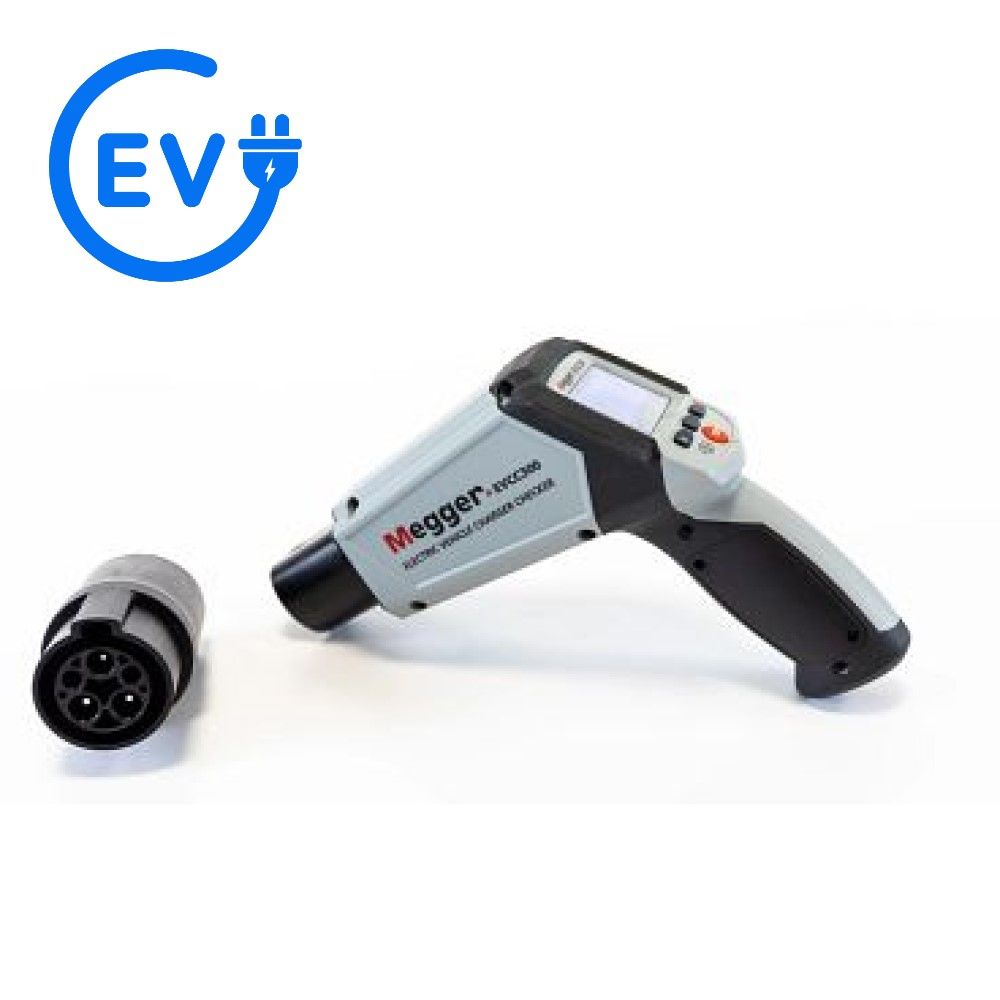

Megger EVCC300, EV Charger Checker

Megger
  • Checks mode 2 and single phase mode 3 (level 1 and two phase level 2) chargers
  • Checks chargers with SAE J1772 Type 1 and Type 2 connectors
  • Performs four EV charger safety checks
  • Performs four EV charger operation checks
  • Checks to see if nuisance tripping or RCD/GFCI is likely to occur
  • Reads control pilot state response from EV Charger to IEC61852-1
£888.00 £740.00

Availability: In stock

Ships Monday, December 12 if ordered in the next 2 days, 3 hours and 56 minutes!

Product Code
MEGEVCC300

The Megger EVCC300 introduces a new and convenient way of regularly checking the safety operation of Electric Vehicle (EV) charge points.

A simple all in one concept provides an easy to use solution to check both the safety and operation of Mode 2 and single phase Mode 3 (Level 1 and two phase Level 2) EV chargers. The instrument is ideal for those wishing to perform a check on their EV charge points (e.g. following manufacture, installation or repair, or part of a maintenance schedule / inspection).

This product is ideal for service stations, car park facilities, or anywhere where EV charging points are accessible for public or employee use. The Megger EVCC300 gives you a tool that enables you to regularly check that the EV charge points are electrically safe, and can be used as part of your regular safety inspection routine.



Key Features:



Four important safety checks:

1. PE touch pad to check ground connection and hazardous voltages.

2. PE resistance (RPE) test to check any exposed metal work is properly grounded / earthed.

3. Touch voltage test to ensure the charger ground / earth does not rise to a hazardous level when charger output is on.

4. RCD / GFCI protection check by timing the device tripping speed.



Four key EV charger operation checks:

1. Proximity detection operation check

2. Control pilot operation check

3. Control pilot signal check

4. EV charger output check



The Megger EVCC300 also provides a nuisance charger supply tripping check.



NOTE: This product is a checking device that can be used to check the safety and operation of EV charger points. It is not intended to be used to certify installations. For installation inspection and certification please see the Megger EVCA210 test adaptor which is used in conjunction with the Megger MFT1741+ multifunction tester.

More Information
ManufacturerMegger
Manufacturer Part NumberEVCC300
DatasheetDownload
