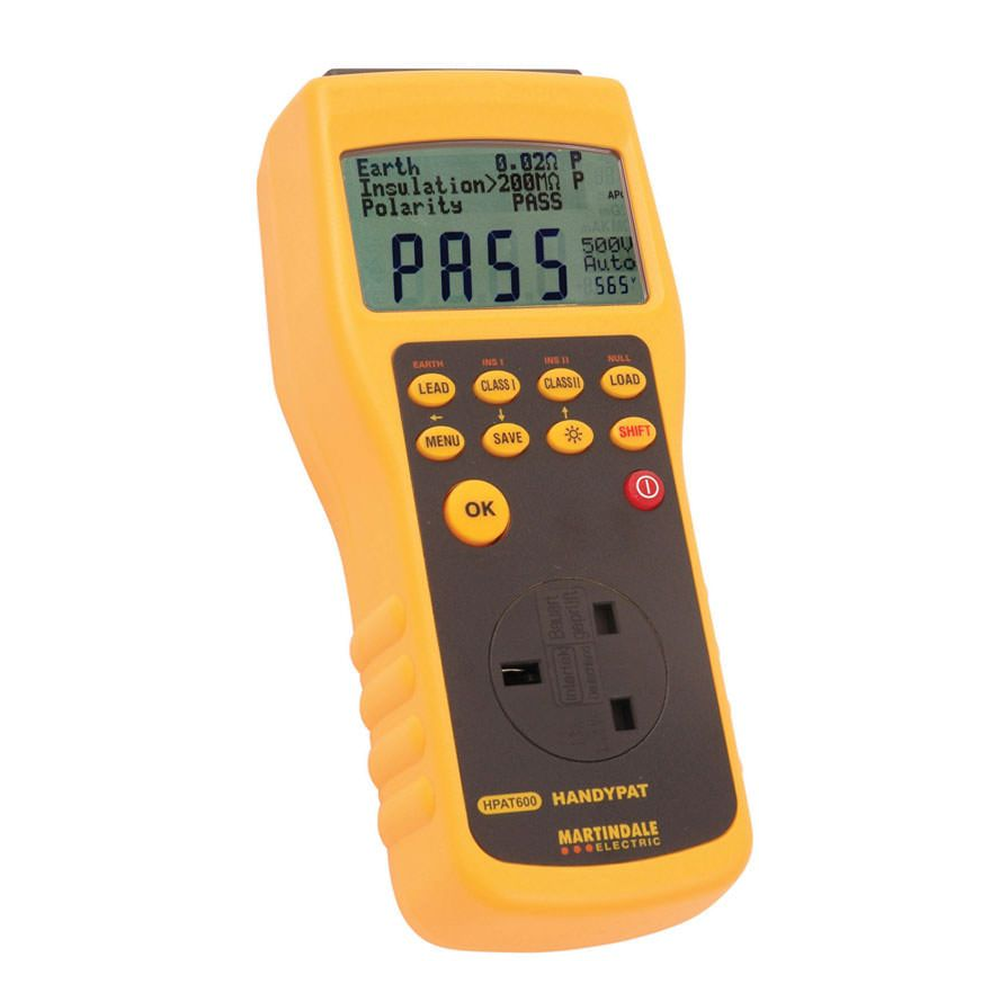

The Martindale HPAT600 is a great all round manual PAT tester, suitable for use in schools and by general PAT testing contractors.
The lighter the instrument, the quicker the job gets done and this is especially true in high volume activities such as portable appliance testing (PAT). The Martindale HPAT600 is the essential hand-held PAT measuring just 90 x 210 x 54mm and weighing just over half a kilo including rechargeable batteries.
Carrying out earth bond tests on IT equipment with the Martindale HPAT600
The design of the HPAT600 PAT tester means that there is no need for a separate test process for IT equipment. The earth bond current is only 200mA, as recommended in the IEE Code of Practice, meaning that whether testing standard appliances, or IT equipment, using the Class I test button will perform the required tests.
In addition the HPAT600 also features a 250V insulation test option, which will allow the user to succesfully test any IT equipment or leads that have a surge protection device fitted.
The Martindale HPAT600 is crammed with features such as:
Dual insulation test voltage (250V & 500V)
User selectable pass levels - with the option to reset to factory defaults
Easy or fast operating mode
IEC lead test
test data storage for up to 200 appliances - equivalent to a whole day's testing
The Martindale HPAT600 can be operated in easy (manual) or fast (automatic) mode.
In manual or training mode, aimed at the newcomer to PAT testing, a connection diagram for the selected test type is shown on the display and each step of a test requires user confirmation by a press of the OK button.
In the automatic mode, for the experienced operator, the Martindale HPAT600 will routinely run through a selected test sequence without any further user interaction unless a failure is encountered.
The Martindale HPAT600 portable appliance tester is supplied with:
Martindale HPAT600
Earth Bond Probe & Croc Clip
Earth Bond Null Adaptor
240V Extension Lead Adaptor
6 x AA NiMH Rechargeable Batteries
Mains Battery Charger
In Car Battery Charger
Printed Instruction Manual
Soft Carry Case
Hire Information & Pricing
The HPAT600 is supplied with an earth bond lead, NiMH Rechargeable Batteries, Mains Charger, In Car Charger, 240V extension lead adaptor & instruction manual.
The standard hire charge is £50.00 per week. Please call 01923 442244 for long term hire pricing.
Hire deposits are only applicable to non-credit account holders and are refunded in full upon return inspection of the equipment.
Delivery & Return Collection
We know people need rental equipment quickly so we use a pre-10.30am courier service (only £15.00 ex-VAT per way per consignment) for mainland UK addresses, alternatively you are welcome to collect and return via your own means.
Delivery to some outlying areas, Highlands, Channel Islands, Northern Ireland and offshore isles will incur additional charges, please contact us for details.
