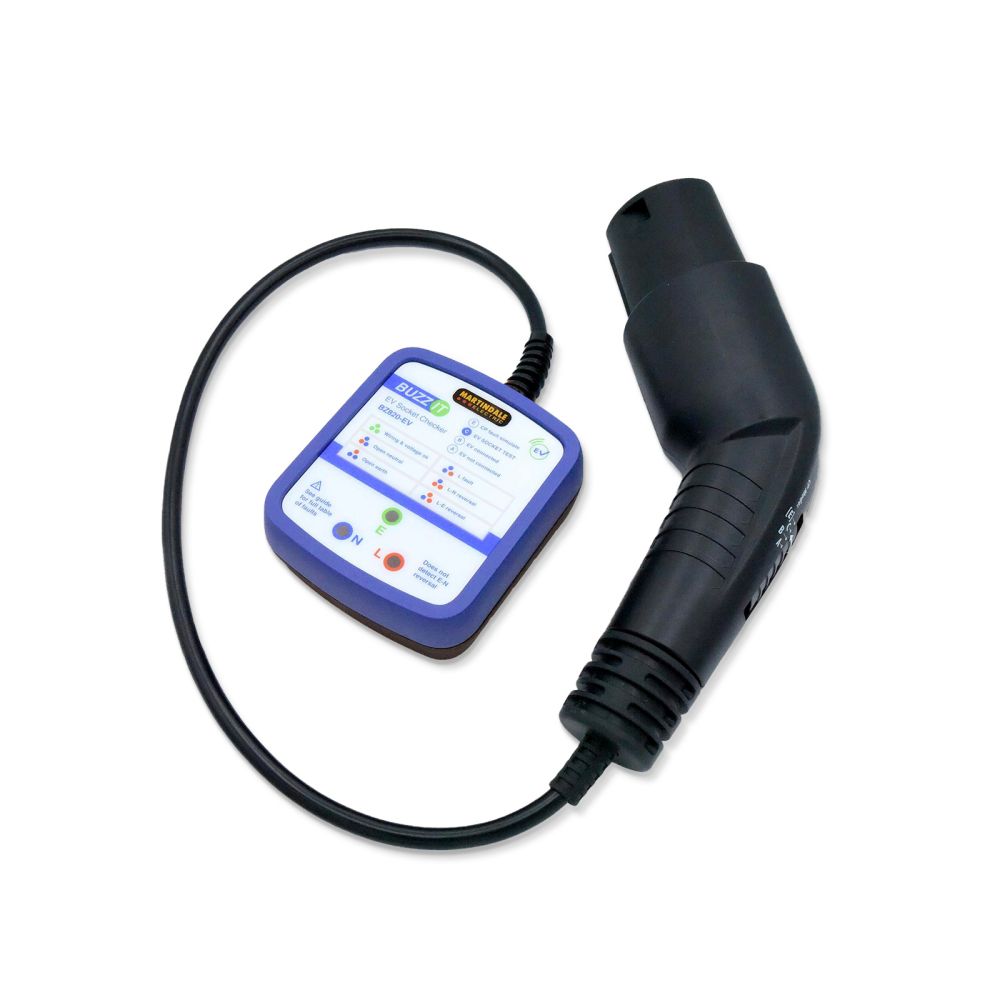

The BZ820-EV is the ideal first-line tool for checking EV chargers fitted with Type-2 connectors. The unit detects 28 wiring fault conditions and also checks the voltage supply level. Correct polarity is indicated by three flashing green LEDs and a continuous audible tone. Fault conditions are clearly indicated by 3 red LEDs and a warning buzzer.
Socket polarity and earth wiring faults are identified by a combination of red LEDs. A look-up chart on the tester provides basic fault diagnosis. Further information is available in the product manual.
The BZ820-EV connects to an EVSE charging point using a Type 2 connector. The integral CP mode slider switch enables the simulation of various vehicle states: No vehicle connected (A), vehicle connected but not ready to charge (B), and vehicle connected and ready to charge (C). Mode C is used for testing. The additional “E” (error) setting simulates failure of the CP signal, which should cause the charger to inhibit charging. LEDs on the integral Type-2 plug show the status of the CP signal and if the voltage supply is present (L1).
Quick & easy EVSE socket testing
LEDs and buzzer indicate 28 fault conditions
High/low supply voltage indication
Type-2 plug connects directly to the EVSE charging point
Fast and easy testing for the correct wiring of L, N and PE
The 4-position switch simulates CP mode A, B, C and E
The Type-2 Connector LEDs indicate the charger CP mode
Voltage low high indication: L=<195V ± 5% / H=>270V ± 5%
Earth neutral voltage high indication: >30V
Socket / test lead colours: L, N, PE in 3-wire cable
Temperature range: -10 to 40°C, non-condensing
Power consumption: <2.5 W
Safety conforms to: Conforms to BS EN 61010-1:2010+A1:2019, Class II, Reinforced insulation
EMC conforms to: BS EN 61326-1
