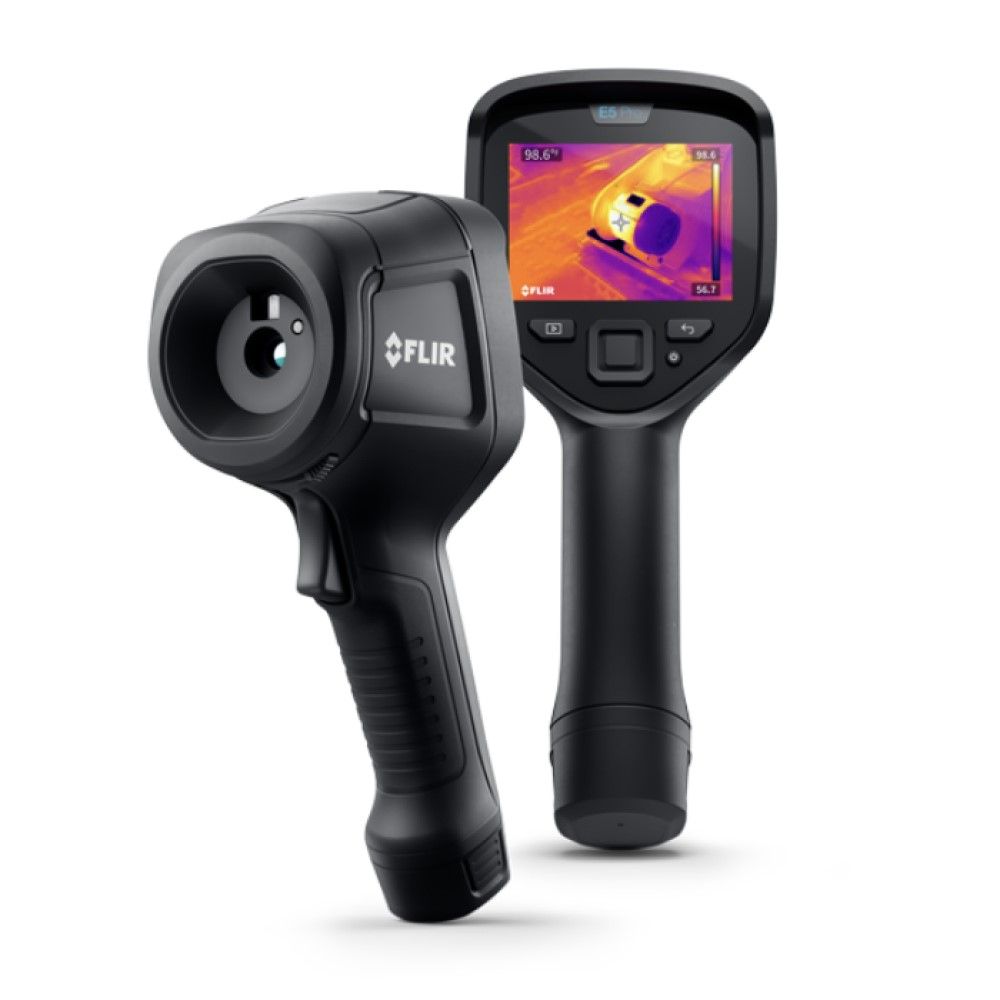

FLIR E5-PRO, Thermal Imaging Camera

Teledyne-FLIR
  • 160 x 120 resolution (19,200 pixels)
  • 60mK thermal sensitivity
  • -20 to +400 degrees centigrade object temperature measurement
  • Touch screen
  • Delta T measurements
  • Perfect for industrial inspection of electrical and mechanical equipment
£1,618.80 £1,349.00

Availability: Limited stock

Ships tomorrow if ordered in the next 22 hours and 2 minutes!

Product Code
FLIE5PRO

The FLIR E5 PRO is a rugged point-and-shoot thermal camera that can help you work more efficiently than ever before in building surveys, HVAC, automotive, and general electrical and mechanical inspections.

Locate and diagnose problems quickly with 160 × 120 thermal resolution (19,200 pixels) and vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement.

Featuring a 3.5-inch, 640 × 480 touchscreen, the E5 PRO simplifies your workflow.

Key Features:

  • 160 × 120 (19,200 pixels) thermal resolution
  • Thermal sensitivity: <0.06°C (0.11°F) /
  • <60 mK at 30°C (86°F)
  • Spatial resolution (IFOV): 3.7 mrad
  • 1-Touch Level/Span contrast enhancement
  • FLIR IgniteTM cloud storage
  • Extended temperature: 400°C/752°F
  • MSX® image enhancement
  • Wi-Fi connectivity

Save Time With 1-Touch Level/Span

1-Touch Level/Span allows you to choose a small area of focus in a thermal image - with one touch of the screen - and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.

Delta T Measurement Tools

With NFPA 70B compliant Delta T measurement tools now built into Ex-Series cameras (Box1 Max - Spot1 Max, and Box1 Max - Atmosphere Temperature), you can save a lot of time by calculating ∆T on the camera without any additional steps.

Efficient Inspections at Your Fingertips

Featuring a 3.5-inch touchscreen, the FLIR E5 Pro allows you to add detailed annotations to images and save them to the cloud, making it simple to create reports.

You can edit and organize photos, add detailed notes, and upload files directly from the camera to the FLIR Ignite cloud for convenient access from any device. Share images with clients and create quick reports directly in FLIR Ignite or create advanced reports in FLIR Thermal Studio.

More Information
ManufacturerTeledyne-FLIR
Manufacturer Part Number13301-0101
ManualDownload
DatasheetDownload
Write Your Own Review
You're reviewing:FLIR E5-PRO, Thermal Imaging Camera
Your Rating

SPECIFICATIONS

IR Resolution

160 × 120 (19,200 pixels)

Thermal Sensitivity/NETD

<0.06°C (0.11°F) / <60 mK at 30°C (86°F)

Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Field of view (FOV)

33° × 25°

Digital Camera

5 MP

Image Modes

Thermal MSX, Thermal, Picture-in-Picture, Digital camera

Display

3.5 in. 640 × 480 color LCD

Storage Media

Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)

IMAGING & OPTICAL

Color Palettes

Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC

Detector Type

Uncooled microbolometer

Digital Camera

5 MP

Field of view (FOV)

33° × 25°

f-number

1.4

Focus

Focus free

Image Frequency

9 Hz

Image Modes

Thermal MSX, Thermal, Picture-in-Picture, Digital camera

IR Resolution

160 × 120 (19,200 pixels)

Minimum Focus Distance

0.36 m (1.18 ft)

Picture-in-Picture

IR area on visual image

Spatial resolution (IFOV)

3.7 mrad

Spectral Range

7.5 µm to 13 µm

Thermal Sensitivity/NETD

<0.06°C (0.11°F) / <60 mK at 30°C (86°F)

MEASUREMENT & ANALYSIS

Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Camera size (L x W x H)

244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Camera weight incl battery

0.590 kg (1.30 lb)

Delta T

Yes, NFPA 70B compliant

Isotherm

Above alarm, below alarm

Measurements correction

Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation

Object Temperature Range

-20°C to 400°C (-4°F to 752°F) in two ranges

Spot Meter

Center spot; box with min./max.

USER INTERFACE

Display

3.5 in. 640 × 480 color LCD

Text

Text annotation on image using onscreen keyboard

Touchscreen

Capacitive touch

POWER

Battery operating time

4 hours

Battery type

Rechargeable Lithium ion battery

Charging system

Battery is charged inside the camera or in specific charger.

Charging Time

2 hours

Power Management

Automatic shut-down

ENVIRONMENTAL & CERTIFICATIONS

Certifications

UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC

Drop test

2 m (6.6 ft)

EMC

EN 301 489-1
EN 301 489-17
EN 61000-6-3
EN 61000-6-2
FCC 47 CFR Part 15 Class B

Encapsulation

IP54 (IEC 60529)

Humidity (Operating and Storage)

IEC 60068-2-30/24 h 95% relative humidity

Operating Temperature Range

-15°C to 50°C (5°F to 122°F)

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

-40°C to 70°C (-40°F to 158°F)

Vibration

2 g (IEC 60068-2-6)

GENERAL

Flashlight

Bright LED

List of Contents

Infrared camera, hard transport case, battery (inside camera), power supply (with EU, UK, US and AU plugs), FLIR Thermal Studio Starter, and printed documentation

Packaging Size

385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)

  • Infrared camera
  • Hard transport case
  • Battery (inside camera)
  • Power supply (with EU, UK, US and AU plugs)
  • FLIR Thermal Studio Starter
  • Printed documentation
