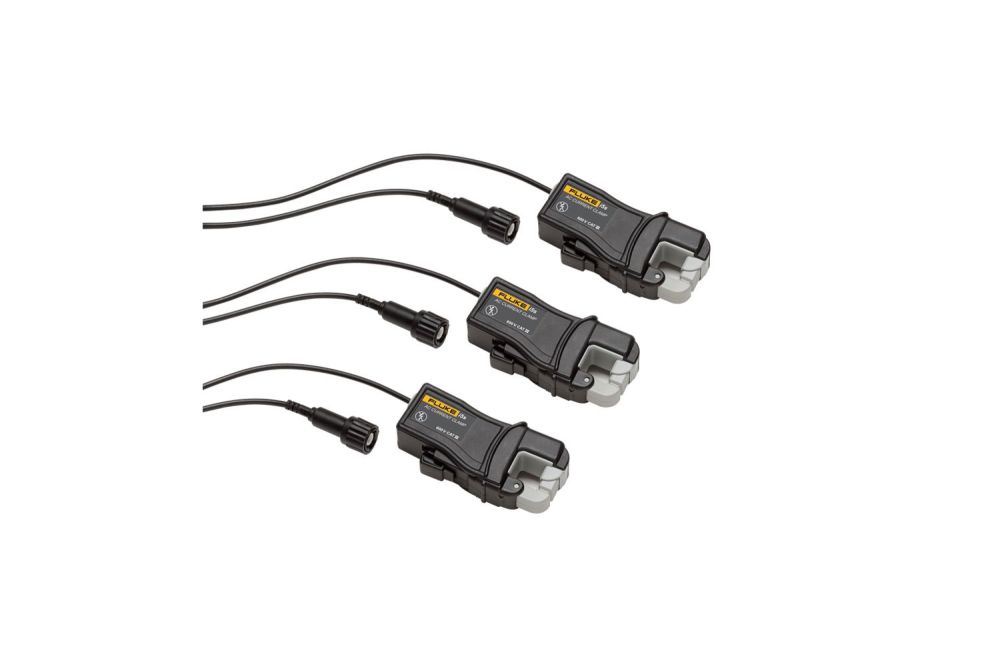

Fluke i5S PQ3 AC Current Clamp Set (5A) - 3 Pack

• Nominal current range 5 A
• Continuous current range 10 mA to 6 A
• Maximum non-destructive current 70 A
• Lowest measurable current 10 mA
• Basic accuracy at 48 Hz to 65 Hz: 10mA to 1A 1% + 5 mA / 1A to 5A 1%
• Useable frequency 40 Hz to 5 kHz
• Output level(s) 400 mV/A
• Input load impedance > 1 MΩ in parallel with up to 47 pF
• Crest factor ≤ 3, add 0.7% to accuracy

Safety specifications

• Safety CAT III 600 V per IEC/EN61010-1, Pollution Degree 2
• Maximum voltage 600 V AC

Mechanical and General Specifications

• Warranty 1 year
• Maximum conductor diameter 15 mm
• Output cable length 2.5 m
• BNC adapter Yes
• BNC to banana adapter included No
