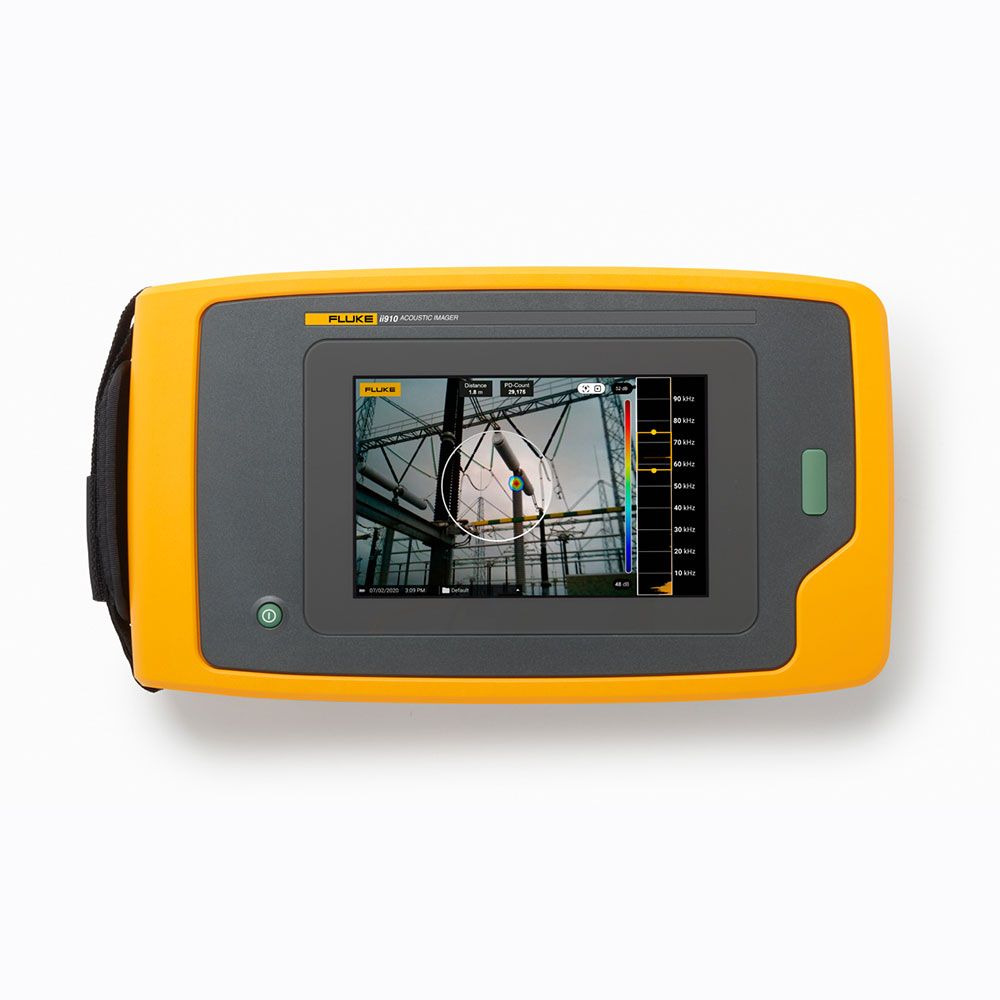

Fluke ii910 Precision Acoustic Imager – corona, partial discharge and gas detection made easier, faster and safer.
The Fluke ii910 Precision Acoustic Imager is engineered to locate partial discharge, corona discharge as well as compressed gas, air, and vacuum leaks. The camera's groundbreaking acoustic imaging technology is a cost efficient, safe, effective, and comfortable tool for teams who inspect and maintain power distribution and industrial high voltage equipment.
The Fluke ii910 is the all-in-one tool for when it comes to all of your leak and PD issues. Everything needed is right at your fingertips. Quickly scan the area or environment and get all the pictures/videos with the simple one button capture and large 7” touchscreen LCD. No additional tools or equipment needed. Without cumbersome secondary cables or devices you have full mobility and greater flexibility to swap between detection of the leak/PD and fixing the leak/PD.
Partial discharge is a very serious issue and often difficult to find. Whether you are inspecting insulators, transformers, switch gear or high voltage powerlines you need to be confident you can spot a problem in time to fix it before it becomes catastrophic. Partial discharge that goes unchecked can cause blackouts, fires, explosions, or deadly arc flashes. There is also a significant monetary risk of downtime!
The Fluke ii910 Precision Acoustic Imager enables you to:
- Detect partial discharge early allowing for proper scheduling of maintenance and increased uptime
- Quickly and easily scan areas to find potential problems
- Detect and analyze partial discharge from a safe distance
- Cut costs and save energy everyday by taking the guesswork out of finding and fixing partial discharge
With the SoundSight™ technology the Fluke ii910 translates the sounds that it hears into a visual representation so that you can quickly locate problem areas. The higher frequency capability of the Fluke ii910 allows for earlier detection to facilitate early maintenance planning that is why the ii910 has a frequency range of 2-100Khz.
Safety is key when working on high voltage equipment with the combination of specific microphone positions and a sophisticated algorithm the Fluke ii910 Precision Acoustic Imager can detect PD and Corona Discharge from 120 meters away. There are no external cords or dangling accessories so the ii910 ensures that you wont get tangled up in any equipment as you do your rounds. In addition, with the acoustic imaging technology being able to pick up reflections of sounds you don’t even need to have direct line of sight to locate a problem. This means you can locate PD without ever opening a cabinet.
The ii910 is truly designed so that anyone can use it with little to no training. Simply turn on the ii910 with one button select your frequency range, or let the tool do that for you, and start scanning around immediately looking for PD or leaks. Once you find a concerning image of a sound you can take a video or a photo to be used later after you have added any text annotation.
Key areas to scan for PD include:
- Insulators
- Transformers
- High voltage powerlines
- Switch gears
- Arrestors
- Busbars
- High voltage coils
- Breakers
- Capacitors
