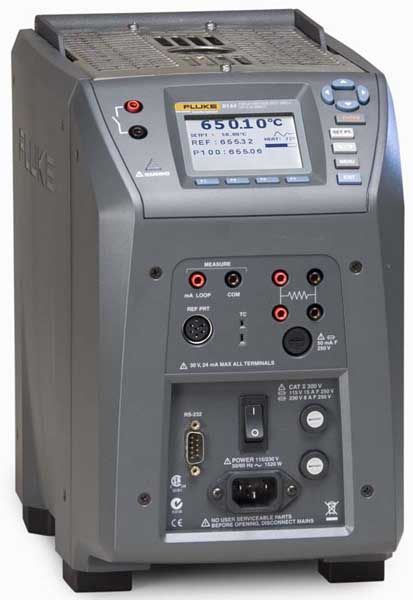

Fluke 9144, Metrology Well

This high temperature field metrology well has a range from 50°C to 660°C and is designed to meet the requirements for high accuracy, portable calibration of digital thermometers, thermocouples and transmitter loops. With its on-board calibration routines you are guaranteed stable and repeatable results, with the guesswork taken out of how to use it.

An additional process electronics option can be added at the time of order, to give you the ability to calibrate 24V loop power, resistance, voltage and 4 - 20mA current.

The 9143 features a large, clear LCD which can be read even in poorly lit areas and a visual and audible stability indicator lets you know when the unit is ready to calibrate.

Key features of the Fluke 9144 include:

• Stability of +/- 0.01°C
• Automated Calibration Routines
• Function Keys and Intuitive User Menu
• Reference Readout Accepts "plug-and-play" smart connector

The Fluke 9144 can be purchased with or without an insert and process electronics. Models are as follows, Prices may vary depending on the model ordered, please contact us on 01923 442244 for a formal quotation:

• Fluke 9144-DW-256: No Insert
• Fluke 9144-DW-P-256: No Insert, with Process Electronics
• Fluke 9144-A-256: Fitted with Insert A
• Fluke 9144-A-P-256: Fitted with Insert A & Process Electronics
• Fluke 9144-B-256: Fitted with Insert B
• Fluke 9144-B-P-256: Fitted with Insert B & Process Electronics
• Fluke 9144-C-256: Fitted with Insert C
• Fluke 9144-C-P-256: Fitted with Insert C & Process Electronics
• Fluke 9144-D-256: Fitted with Insert D
• Fluke 9144-D-P-256: Fitted with Insert D & Process Electronics
• Fluke 9144-E-256: Fitted with Insert E
• Fluke 9144-E-P-256: Fitted with Insert E & Process Electronics
• Fluke 9144-F-256: Fitted with Insert F
• Fluke 9144-F-P-256: Fitted with Insert F & Process Electronics

View an image of the inserts

Insert A: Misc. Imperial Holes
Insert B: Comparison Imperial Holes
Insert C: 0.25 Inch Holes
Insert D: Metric Comparison
Insert E: Metric Misc. Holes
Insert F: Metric Comparison with 0.25 Inch Hole
