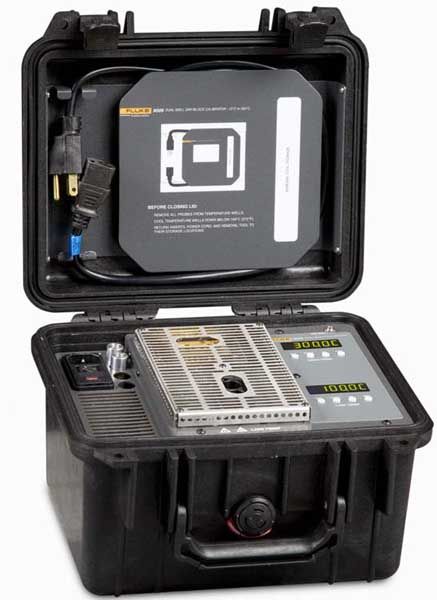

Fluke 9009, Industrial Dual-Block Dry-Well

Two independently controlled temperature blocks provide the Fluke Model 9009 with a calibration range from -15°C to 350°C. The reliability and performance is exactly as you would expect from a Fluke product. Built into a robust peli-case, which is watertight and airtight, makes this truly portable and suitable for use in many environments. There are two options available for peli-case cover, either black or yellow. The default is black.

The temperature block includes two wells with interchangeable inserts, allowing you to calibrate four probes at the same time, or alternatively you can calibrate two probes whilst using an external reference thermometer, such as the Fluke 1523 or 1524. The temperature wells can also be used to get quick transmitter calibration references for span and zero.

Fluke's precision temperature controller is used to control the two blocks, specifically manufactured for precise results and accurate calibrations. The cold block is calibrated to +/- 0.2°C, with the second hot block calibrated at +/- 0.6°C and a traceable calibration certificate for both block is included.

An RS232 connection is available for use with the Fluke 9930 software. With this you can both monitor and control the temperature from a PC or laptop. In addition you can use the Fluke MET/TEMP II software, which integrates fully with the 9009 and allows for completely automated calibrations.

There are two models in the range:

• Fluke 9009-B-256: -15°C to 350°C in Black Case - this is the default unit
• Fluke 9009-B-Y-256: -15°C to 350°C in Yellow Case - call us to order this variant
