The Fluke 1770 Series includes a one-of-a-kind system for automatically collecting measurements, ensuring that you always get the correct data. At the same time, it allows you to select and adjust specific parameters as needed. More than 500 network quality parameters are recorded with the default settings. The guided configuration makes it easy to choose the right parameters for the system you're working on. Logged data can be viewed, downloaded, and shared instantly with Fluke Energy Analyze Plus software, eliminating the need to wait for a session to end before reviewing or analyzing data.

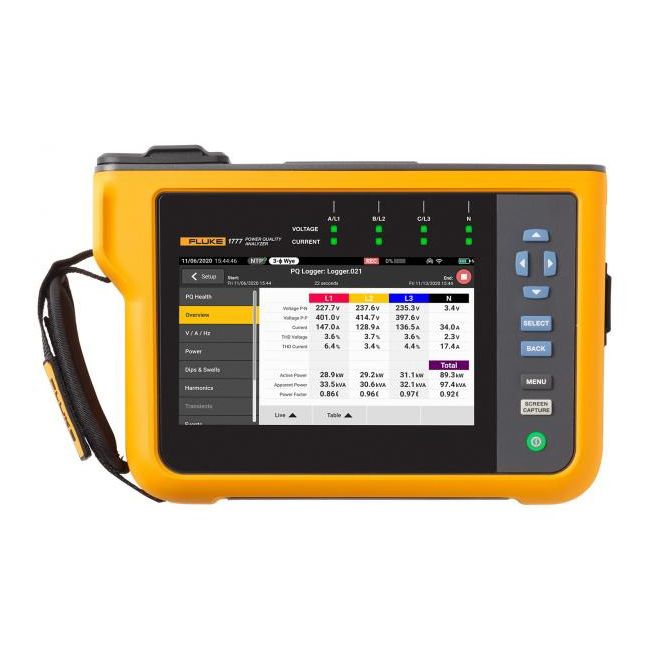

The Fluke 1777 Three-Phase Power Quality Analyzer, as Fluke's top-of-the-line 1770 Series Three-Phase Power Quality Analyzer, can measure over 500 parameters, including harmonics, dips, swells, unbalance, voltage, current, and power, and offers high-speed transient capture up to 8kV with 1MS/s and 20MS/s sampling rates. The Fluke 1777 Three-Phase Power Quality Analyzer, like the other models in this series, features a simplified reporting platform, an easy-to-use interface, and automatic measurement capture technology.
This two-in-one power quality analyzer and meter is ideal for energy surveys, load testing, harmonic surveys, nuisance circuit breaker tripping, power utility quality surveys, and detecting transient equipment failures. A diverse and comprehensive automatic measurement capture ensures that you collect the correct data for the system you're working on while allowing you to change and adjust parameters as needed. A streamlined user interface makes switching between measurement parameters simple, while guided setups, accessible via the PQ Logging and Analysis function, allow for simple configuration and measurement selection. Furthermore, guided installations digitally autocorrect connection issues without requiring you to make any physical probe changes. In addition, the Fluke 1777 Three-Phase Power Quality Analyzer allows you to create custom displays, allowing you to personalize the PQA to your application.
The Fluke 1777 Three-Phase Power Quality Analyzer's PQ Meter function gives you instant access to live data, allowing you to swiftly detect potential problems while troubleshooting. The Fluke 1777 Three-Phase Power Quality Analyzer's big, vivid touchscreen display displays results and readings; data may be uploaded to a PC via a USB or Wi-Fi interface.
Data can be examined and shared using Fluke's Energy Analyse Plus Software after being transferred to a PC. This software can also be used to generate customized and/or industry standard (EN50160/ IEEE 519/ GOST 33073) reports; it has a one-click option for producing industry-standard reports.
Finally, because it can be powered directly from the measurement circuit, the Fluke 1777 Three-Phase Power Quality Analyzer is not restricted by the location of power outlets or the length of extension cords.
The Fluke 1777 Three-Phase Power Quality Analyzer is a two-in-one power quality analyzer and power quality meter that can log and analyze data as well as troubleshoot problems.
For specifications look in the Datasheet
