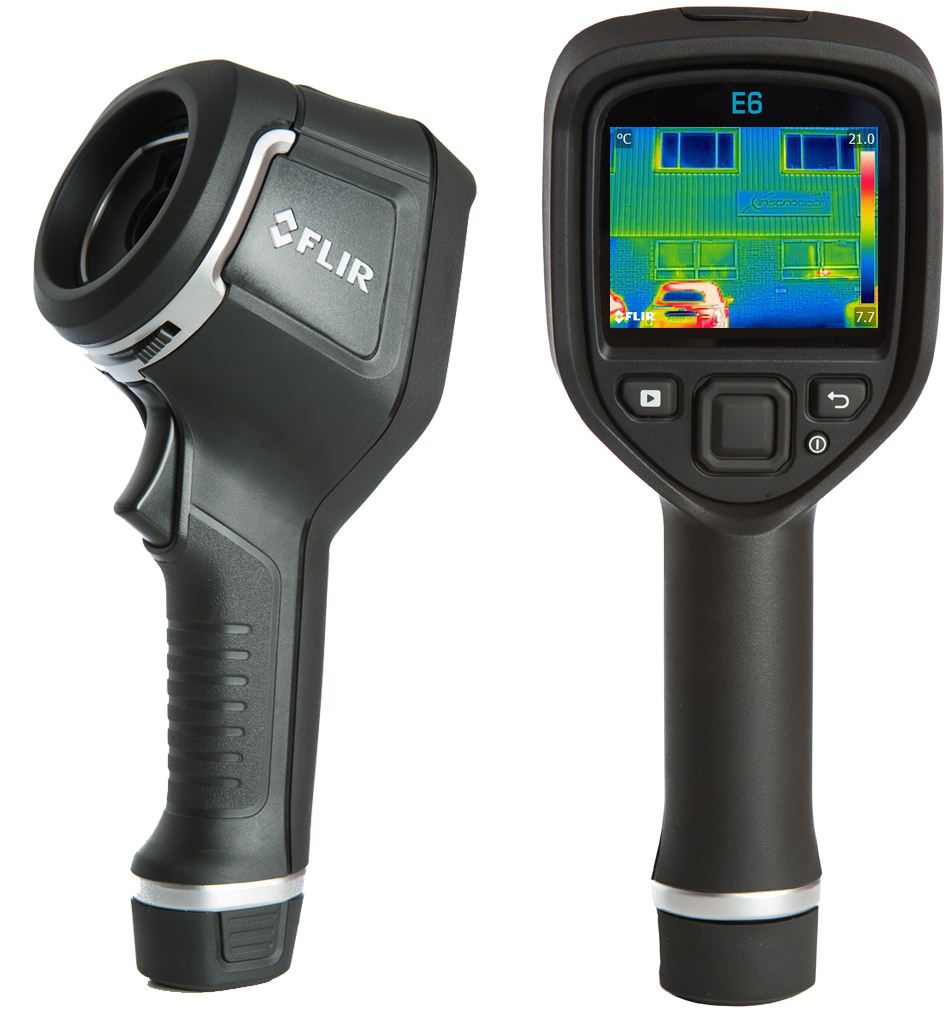

The FLIR E6 is a 160 x 120 pixel thermal camera with MSX enhancement that adds the detail of the digital image to the thermal. This is an excellent entry level camera for those carrying out basic electrical and industrial surveys. It's also suited to basic building diagnostics such as moisture detection, water leaks in pipes, heating system blockages and general heat loss.
Note: The product image shown is a true representation of the quality of thermal image this camera will produce.
A 45° lens is fitted as standard with this model, which makes it suitable for use in confined spaces, or where you want to get more of the object in the image, without moving further away. This model adds a better sensitivity at 0.06°C (60mK) and additional temperature alarms. The E6 replaces the old E30 model, which has now been discontinued.

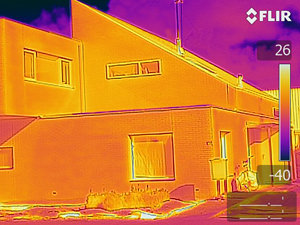

Example of FLIR MSX Enhanced Image (320 x 240 Pixel Resolution)
The digital camera fitted on this model is 0.3 megapixel and has auto adjustment for low light levels. With the MSX feature, the FLIR E4 will capture a thermal, digital and MSX version of each image, enabling you to choose either one for your reports. Up to 200 images can be stored on the internal memory for download to the free FLIR Tools software package.
Key features of the FLIR E6
- 160 x 120 pixel thermal resolution
- -20°C to +250°C Temperature Range
- 60mK (0.06°C) thermal sensitivity
- 3 Colour Palettes, Ironbow, Rainbow and Greyscale
- Thermal Image, MSX Image, Digital Image, Picture-in-Picture
- 45° wide angle lens
- 0.3 megapixel digital camera
- MSX image enhancement
- Single spot measurement tool
- Temperature Alarms (High & Low)
Choosing the right thermal camera
With so many thermal cameras available, ranging from £559 to £20,000+, how do you know which camera you should choose? Consider the application you will be using the camera for and also whether you are using it as an in-house engineer, or if you are offering this as a contracted service. Ensuring you buy the right resolution camera is key, because you cannot upgrade this, you have to buy a new camera.
At Instrotech, we won't just sell you a camera, our technical experts will help you choose the right camera for your application. In addition, we also run a selection of approved one day thermography training courses covering both electrical and building applications. To make sure your getting the best possible deal, call our team on 01923 442244.
