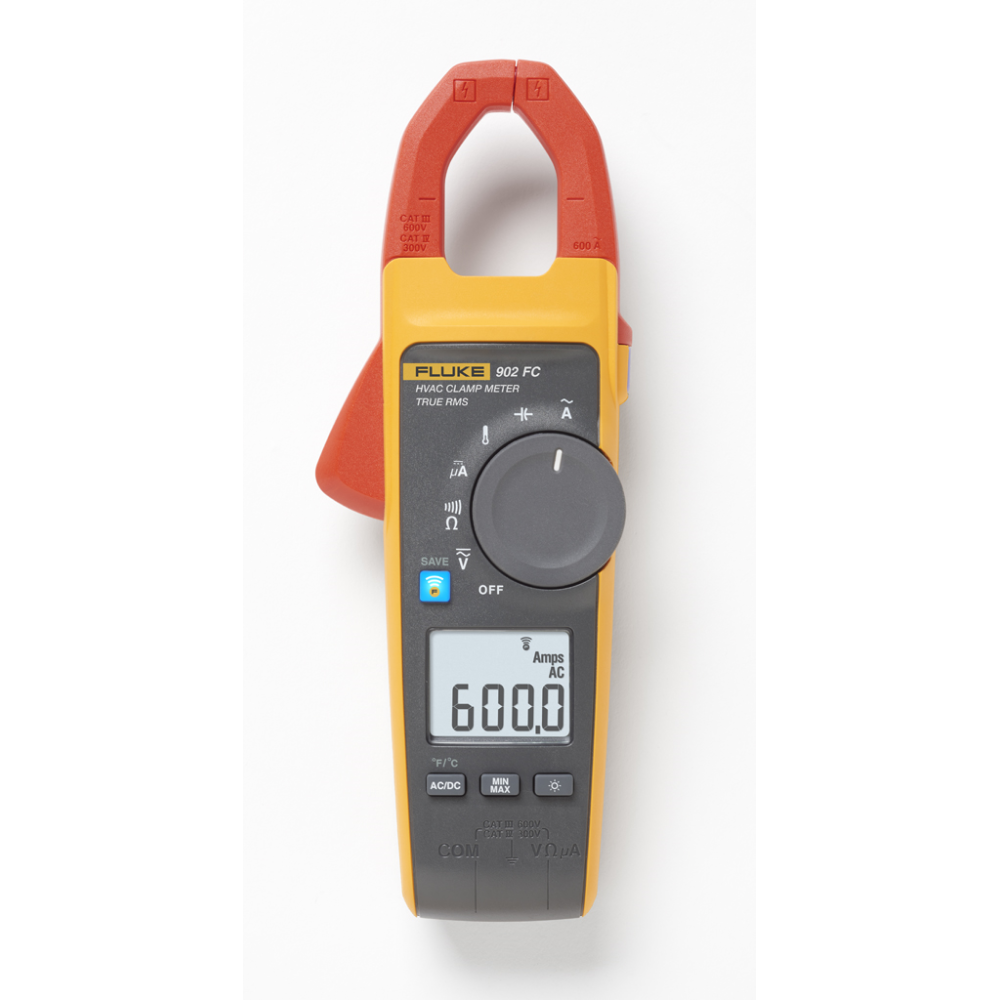

Fluke 902 FC TRMS HVAC Clamp Meter

  • 600A AC - ideal for HVAC current testing
  • True RMS - accurate AC measurements
  • Temperature measurement - checks HVAC systems
  • 200µA DC - ideal for flame sensors
  • 1000µF capacitance - checks motor capacitors
  • Fluke Connect - wireless remote readings
Regular Price £501.60 Special Price £349.64 £291.37

Availability: In stock

Ships today if ordered in the next 7 hours and 5 minutes!

Product Code
FLU902FC

Free Delivery over £99

90-day Returns

Technical Support

Fluke 902 FC TRMS HVAC Clamp Meter

What is the Fluke 902 FC HVAC Clamp Meter?

The Fluke 902 FC is a True RMS clamp meter designed specifically for HVAC engineers and technicians. It measures AC current up to 600A and AC/DC voltage up to 600V, combining essential electrical and HVAC measurements in one compact instrument.



Built for HVAC Testing and Fault Finding

The 902 FC measures temperature, capacitance, resistance and DC microamps, allowing technicians to check flame sensors, thermistors, motor capacitors and other HVAC components. Fluke Connect also enables measurements to be viewed remotely on a compatible smartphone.



How does the 902 FC stand out in everyday use?

With True RMS measurement and a compact clamp design, the 902 FC is well suited to modern HVAC systems including variable frequency drives. MIN/MAX recording and wireless connectivity also make it easier to capture changing measurements during troubleshooting.



Order today to enjoy free delivery, expert support and our 90-day satisfaction guarantee. Need advice? Our team is here to assist you.



More Information
ManufacturerFluke
Manufacturer Part Number4695814
GTIN0095969798341
Included CalibrationCall for info
Current RangeUp to 600A
Category ratingCAT IV 300V, CAT III 600V
FeaturesTrueRMS, Temperature measurement
ManualDownload
document Datasheet (620.44 kB)
document Manual (3.23 MB)
  • Product Type: True RMS HVAC Clamp Meter
  • Model: 902 FC
  • Measurement Type: True RMS
  • AC Current Ranges: 60A / 600A
  • AC Current Resolution: 0.01A / 0.1A
  • AC Current Accuracy at 45Hz to 65Hz: ±2.0% + 5 Digits
  • AC Current Accuracy at 65Hz to 400Hz: ±2.5% + 5 Digits
  • AC Voltage Range: Up to 600V
  • AC Voltage Resolution: 0.1V
  • AC Voltage Accuracy: ±1.5% + 5 Digits
  • DC Voltage Range: Up to 600V
  • DC Voltage Resolution: 0.1V
  • DC Voltage Accuracy: ±1% + 5 Digits
  • DC Microamp Range: Up to 200µA
  • DC Microamp Resolution: 0.1µA
  • Resistance Ranges: 600Ω / 6000Ω / 60kΩ
  • Maximum Resistance: 60kΩ
  • Capacitance Ranges: 100µF / 1000µF
  • Maximum Capacitance: 1000µF
  • Temperature Range: -40°C to 400°C
  • Temperature Resolution: 0.1°C / °F
  • Continuity: Yes
  • Continuity Threshold: ≤30Ω
  • MIN/MAX: Yes
  • Fluke Connect: Yes
  • Display Backlight: Yes
  • Auto Power Off: Yes
  • Category Rating: CAT III 600V / CAT IV 300V
  • Ingress Protection: IP30 Non-Operating
  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -40°C to 60°C
  • Operating Altitude: Up to 3000m
  • Power Supply: 2 x AA Alkaline Batteries
  • Dimensions: 230 x 83.7 x 45.4mm
  • Weight: 419g
  • Fluke 902 FC True-RMS HVAC Clamp Meter
  • TL75 Test Leads
  • 80BK Integrated DMM Temperature Probe
  • 2 x AA Alkaline Batteries
  • Soft Carrying Case
  • Quick Reference Guide
