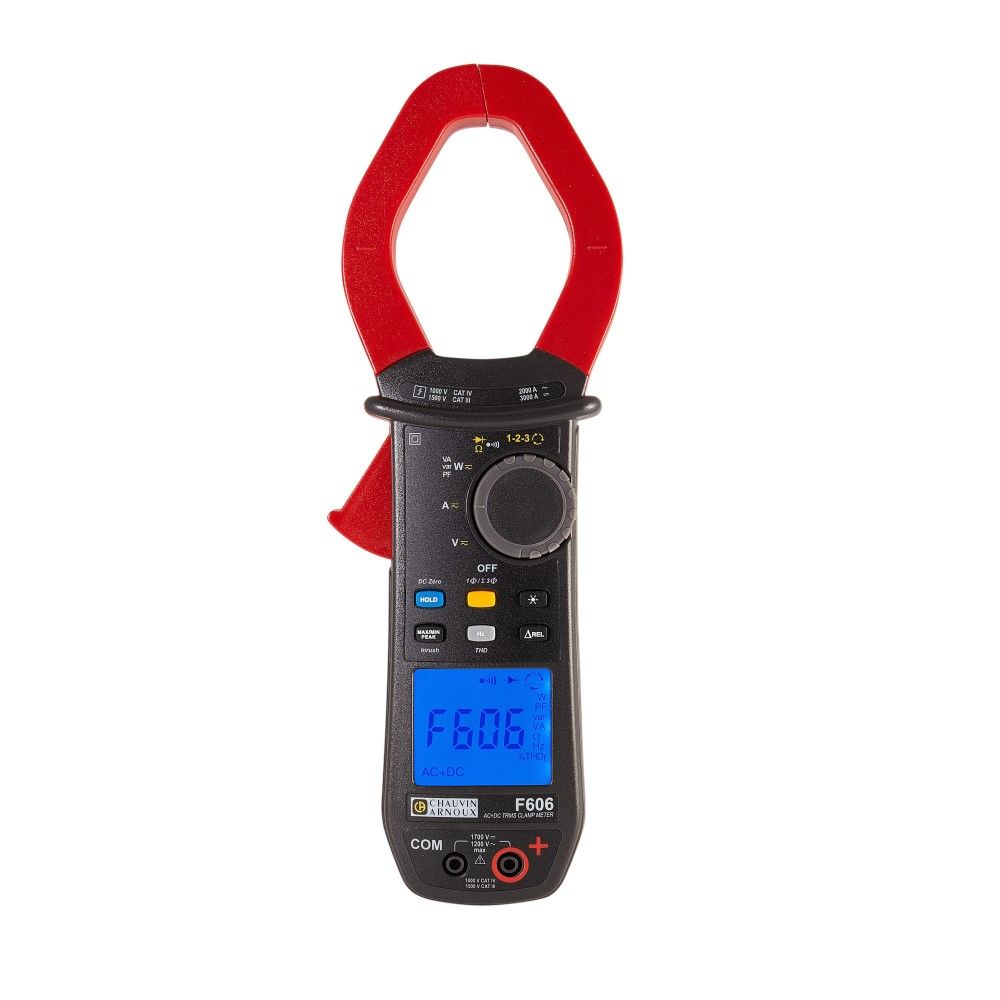

Chauvin Arnoux F606 TRMS AC/DC Multimeter Clamp (3000A, 60mm)

  • True RMS - accurate AC measurements
  • 3000A DC - high-current testing
  • 60mm jaw - accommodates large conductors
  • Power measurement - advanced diagnostics
  • True InRush - captures overcurrents
  • THD analysis - identifies distortion
£885.60 £738.00

Availability: Usually 5 working days

Product Code
CAF606

Free Delivery over £99

90-day Returns

Technical Support

Chauvin Arnoux F606 TRMS AC/DC Multimeter Clamp (3000A, 60mm)

What is the Chauvin Arnoux F606 Clamp Multimeter?

The Chauvin Arnoux F606 is a professional True RMS AC/DC clamp multimeter for electricians and maintenance engineers working on high-power electrical systems. It measures up to 2000A AC/AC+DC and 3000A DC through its large 60mm clamp.



Advanced Power and Current Measurement

Alongside current and voltage, the F606 measures frequency, resistance, power and power factor. It also offers THD measurement, phase rotation and True InRush for advanced troubleshooting and electrical system analysis.



How does the F606 stand out in everyday use?

The 10,000-count backlit display, Min/Max, Peak and ΔREL functions make complex measurements easier to assess while its rugged IP54 construction is suited to demanding industrial environments.



Order today to enjoy free delivery, expert support and our 90-day satisfaction guarantee. Need advice? Our team is here to assist you.



More Information
ManufacturerChauvin Arnoux
Manufacturer Part NumberP01120966
GTIN3760171410592
Included CalibrationCall for info
Current RangeOver 1000A
Jaw Opening SizeOver 55mm
Category ratingCAT IV 1000V, CAT III 1500V
FeaturesTrueRMS, Frequency measurement, DC Clamp, Inrush current, Power / Energy measurement
ManualDownload
DatasheetDownload
  • Product Type: True RMS AC/DC Clamp Multimeter
  • AC Current Range: 0.25A to 2000A
  • DC Current Range: 0.25A to 3000A
  • AC+DC Current Range: 0.25A to 2000A
  • Maximum AC Current: 2000A
  • Maximum DC Current: 3000A
  • AC Voltage Range: 0.15V to 1200V
  • DC Voltage Range: 0.15V to 1700V
  • AC+DC Voltage Range: 0.15V to 1200V
  • Frequency - Current: 5Hz to 1kHz
  • Frequency - Voltage: 5Hz to 20kHz
  • Resistance Range: 0.1Ω to 99.99kΩ
  • Continuity: Audible
  • Jaw Opening: 60mm
  • Display: 10,000-count backlit LCD
  • Acquisition Method: True RMS
  • AC/DC Detection: Automatic
  • Power Measurement: W, var and VA
  • Power Factor: Yes
  • THD Measurement: THDf and THDr
  • Phase Rotation: 2-wire method
  • True InRush: Yes
  • Functions: Hold, Min/Max, Peak+/Peak- and ΔREL
  • Ingress Protection: IP54
  • Category Rating: CAT IV 1000V / CAT III 1500V
  • Power Supply: 4 x 1.5V AA batteries
  • Dimensions: 111 x 296 x 41mm
  • Weight: 640g
  • Order Code: P01120966
  • Chauvin Arnoux F606 Clamp Multimeter
  • Test leads
  • 4 x 1.5V AA batteries
  • Carrying case
  • Quick Start Guide
  • User Manual on CD-ROM
