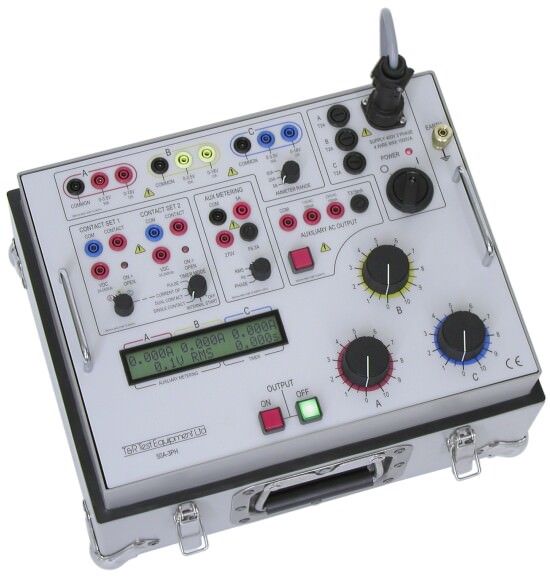

T&R Test Equipment 50A-3PH

The T & R 50A-3PH features an easy to use interface and simple panel layout. Ideal for maintenance and commisioning engineers, every function status can be seen at a glance, with no complex menu navigation.

A range of outputs are available, from low mA currents up to 50A and voltages of up to 18V are available on the main outputs. Full scale of the meter and trip level can be set independently of the selected output, via three true RMS metering ranges.

The tester is protected from overcurrent, duty cycle and thermal trips, with any trip condition visible to the user. Inputs and outputs are also fuse protected.

A flexible timing system allows you to measure trip times, reset times and reclose times quickly and accurately. The timing system can also be used as a standalone timer and the contact inputs are independently isolated.

Suitable for testing single & three phase protection including:

• Over & Under Current Relays
• IDMT Relays
• Auto-Reclosers
• Time Delay Relays
• Earth Fault Relays
• Miniature Circuit Breakers
• Power Relays
• Tripping Relays
• Thermal Relays

The standard model is supplied with an aluminium carry case, however there is an option to add a heavy duty peli-case, which also has space for the test leads.

All units are calibrated by the manufacturer prior to shipping, however there is no certification included. If you require a full calibration certificate, please contact us for details.

This product is only made to order, therefore please allow a delivery time of 4 - 6 weeks and contact us for confirmation at the time of order.
