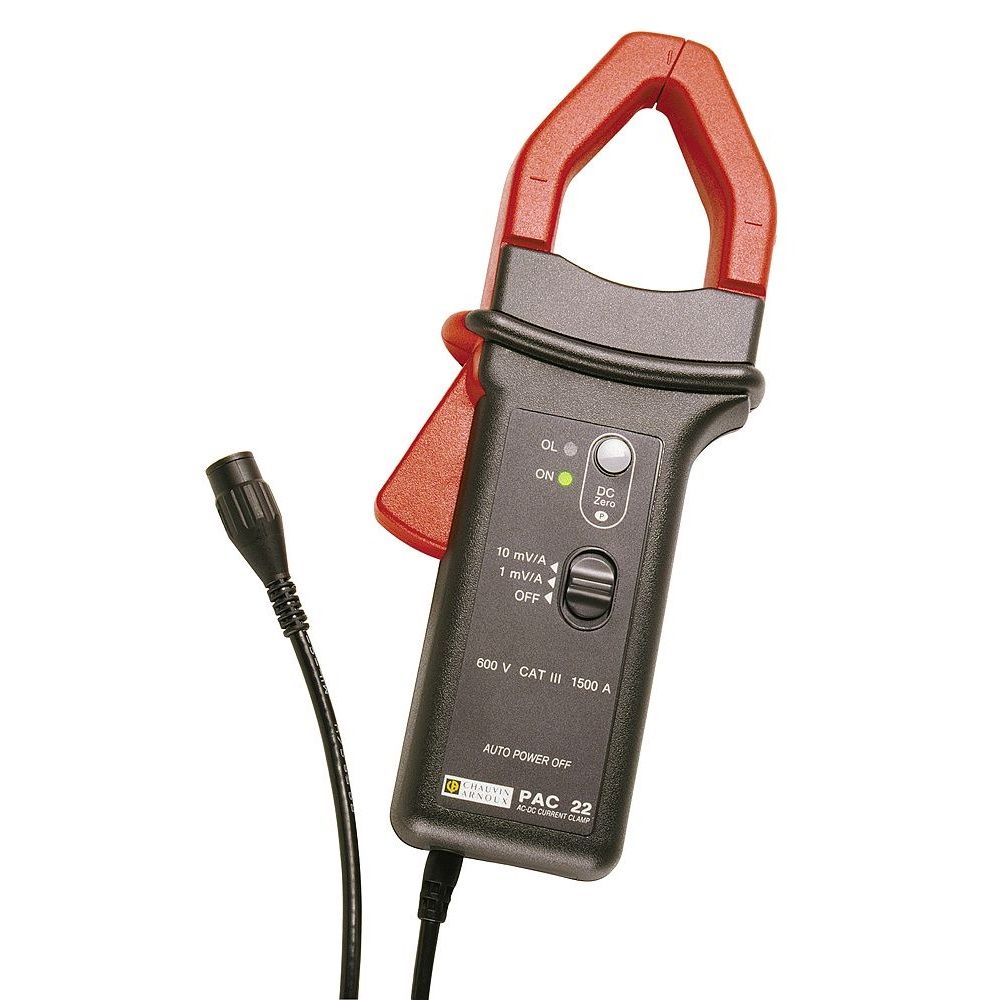

Chauvin Arnoux PAC22, AC/DC Current Clamp (1000A AC / 1400A DC)

Chauvin Arnoux PAC22, Clamp, AC/DC, 0.2..150/1400A.Pk, 0.4..150/1400A.DC, (1.4V AC/DC), DC - 10kHz.

Main features of the PAC22 model:

• Rated current: 1000 A AC / 1400 A DC
• Output signal: DC and AC voltage
• Output / input ratio: 10 mV / A, 1 mV / A
• Coaxial cord output and isolated BNC trunk plug

The "PAC" series is a range of Hall-effect ammeter clamps for measuring DC and AC currents. 2 forms are proposed to enclose cables up to 30mm or 42mm in diameter as well as small bars.

The range thus consists of PAC1x models and 2x models for higher intensities.

Combined with an oscilloscope, this insulated current probe has 2 sensitivities and allows to visualize the intensities with a bandwidth up to 10 kHz, peak intensities up to 1400 A DC or peak.

It has a simplified Zero DC adjustment system and an automatic disengaged standby.
