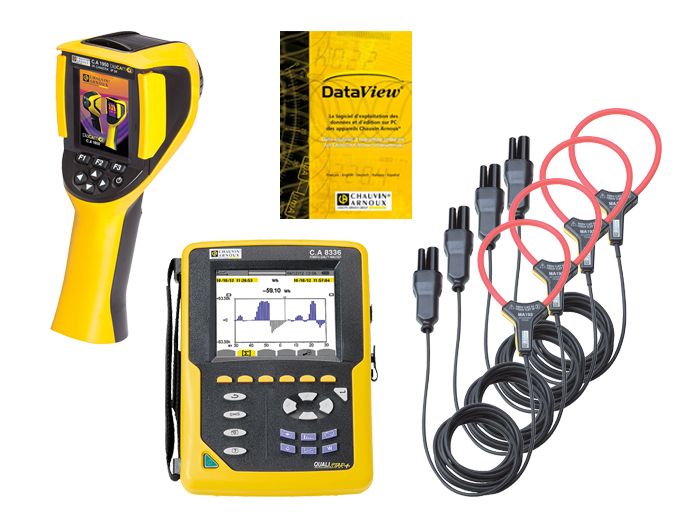

Chauvin Arnoux CA8336 Qualistar Power & Energy Quality Analyser PLUS 4x MA193-250 Current Clamps PLUS CA1950 DiaCAm2 Thermal Camera PLUS DataView Software
Chauvin Arnoux CA8336 Qualistar Power & Energy Quality Analyser:
The CA8336 Qualistar Power and Energy Quality Analyser has been designed for Inspection and Facilities Maintenance applications across industrial and administrative buildings. It allows you to measure current, voltage, and power parameters across an electrical installation to enable a full diagnosis.
CAT 3 (1000V) and CAT 4 (600V) compliant to IEC61010.
Covers three phase, split phase and single phase, with or without neutral and works with all types of 2-5 wire electrical networks.
Size your electrical installation correctly by measuring maximum input current drawn by a device on power up. The CA8336 Qualistar can measure Inrush over 10 minutes and captures everything.
Measurements include:
Pst (short term flicker) and Plt (long term flicker) as defined by the IEC/EN standard.
Energy values including oil tonnes equivalent (kW, Joule, nuclear toe, non-nuclear toe, BTU etc.).
Calculate K factor for transformers.
Harmonics
Distorting Power
Current sensors are automatically recognised.
The display allows you to view all inputs simultaneously and measurements can be displayed as waveforms, values or Fresnel diagrams.
Operation Modes:
Power / Energy – displays all values and utilises start and stop keys.
Recording – programmable recording and storage for more than 450 values including required parameters and graphical display. Includes quick start up for immediate start of recording.
Alarms – can set up to 40 alarms simultaneously where threshold overrun can be set and monitored (each alarm occurrence is time/date stamped along with duration and extreme values)
Transients – capture hundreds of current and voltage transients, display events down to tens of µsecs.
Inrush – monitoring Inrush current when a load is powered up
Chauvin Arnoux MA193-250 MiniFLEX flexible current sensor (x4)
The MiniFLEX MA193 flexible current sensor can be used to measure the current in a cable without opening the circuit. It also serves to isolate the user from hazardous voltages in the circuit.
Measurement range of 100mA to 10kA with
Max rated voltage: 600V CAT 4 or 5, 1000V CAT 3
Clamping diameter: 70 mm.
Sensor length: 250 mm.
Connection cable length: 3 m.
Weight: ~60 g.
Compatible with PEL and Qualistar Power Quality Analysers including the: CA8333 & CA8336, CA8345 and the PEL 103
Chauvin Arnoux CA1950 DiaCAm2 Thermal Camera:
Allows you to conduct thermal inspection for energy auditing and electrical or mechanical maintenance.
Starts up in only 3 secs
Continuous operation of up to 13hrs
Focus Free with 20ᵒ x 20ᵒ field of view
Wide 2.8 inch screen
Direct function access with one hand
Ergonomically designed
Tripod insert
Protective flap
CAmReport analysis software included
Chauvin Arnoux DataView software:
Allows you to configure and perform measurements, view data in real time, recover recorded data and create standard or customised measurement reports. The software automatically recognises the instrument connected and gives the User direct access to the data recorded, configuration and real time data in the instrument.
