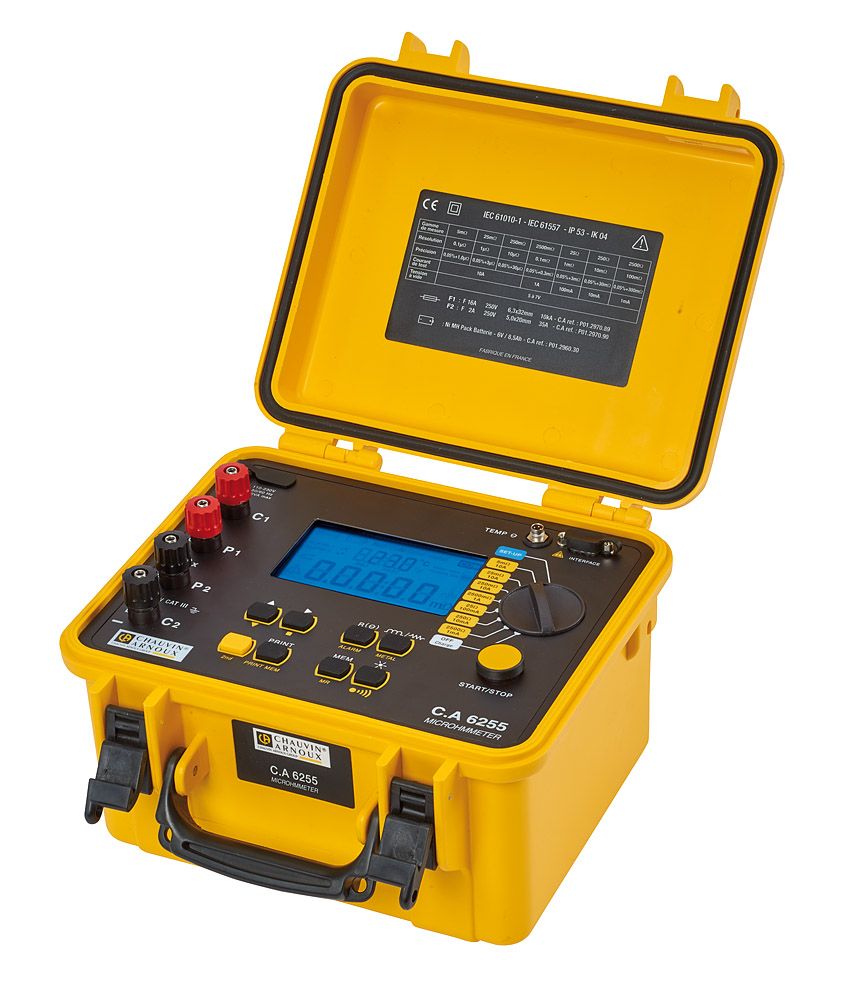

Chauvin Arnoux CA6255, Micro Ohmmeter (10A)

The Chauvin Arnoux CA6255 is a micro-ohmmeter (otherwise known as a “ductor” or “low ohmmeter”) with a really high accuracy as it has a resolution going down as low as 0.1μΩ. This makes it a great unit for use in checking the low-resistance quality of your connections and bonds.

Advantages of the CA6255:

Optimized current generator on inductive objects

Measurement up to 2,500Ω, resolution 0.1μΩ

Automatic compensation of stray voltages

Calculation of R at a reference temperature – Pt100Ω probe

Automatic discharge after test

Programmable alarms

Storage of up to 1,500 measurements

PC communication

An easy-to-use, high-performance instrument, the CA6255 micro-ohmmeter tests the quality of connections with precision (resolution of 0.1 µΩ) through the use of low resistance measurements.

4-wire measurement method, 1 µΩ to 2,500Ω (7x ranges, 3x with a 10A current) with automatic compensation of stray voltages at input terminals.

Three measurement modes available depending on the application:

1. Inductive – use on inductive components (transformers, motors, etc.)

2. Non-inductive – for measuring resistors with a time constant of a few ms (contacts, metallization, etc.)

3. Non-inductive with automatic trigger:

- for measurements on resistors without a time constant

- for repetitive measurements in production, saving considerable time

Other features include:

Temperature compensation function for comparative results

Programmable alarms

1,500 measurement storage capacity

Large backlit LCD display with a wide range of symbols and indicators

50 V CAT III rated

Power supply: NiMH rechargeable battery

Dimensions: 270 x 250 x 180 mm; weight: 4 kg

The CA6255 is suitable for measuring the following applications:

Chassis-earth continuity tests

Surface and metallization conditions

Quality of contacts (switches, relays)

Resistance of cables and windings

Heating of motors and transformers
